Zixi Broadcaster can receive Inputs from a variety of sources such as another Broadcaster, a ZEC acting as a feeder, or Zixi enabled encoders. The Inputs can be received through “push” or “pull” interactions and can be delivered using a wide range of protocols. While configuring an Input in Broadcaster you can customize the stream configuration.

For this tutorial, the Broadcaster is receiving a Push input from your ZEC using the Zixi Protocol. In this case, the stream is initiated by the ZEC while the Zixi Broadcaster remains in “listening mode” until the stream is initiated. We will create a Push Input in your Zixi Broadcaster using the default configuration settings.

The following procedure describes how to manually create a Push Input on the Broadcaster. You can configure your Broadcaster to automatically allow Push Inputs. Once this feature is enabled, when you create a Push Output on your ZEC, the corresponding Push Input is automatically created on the Broadcaster. To enable automatic Push Inputs, see

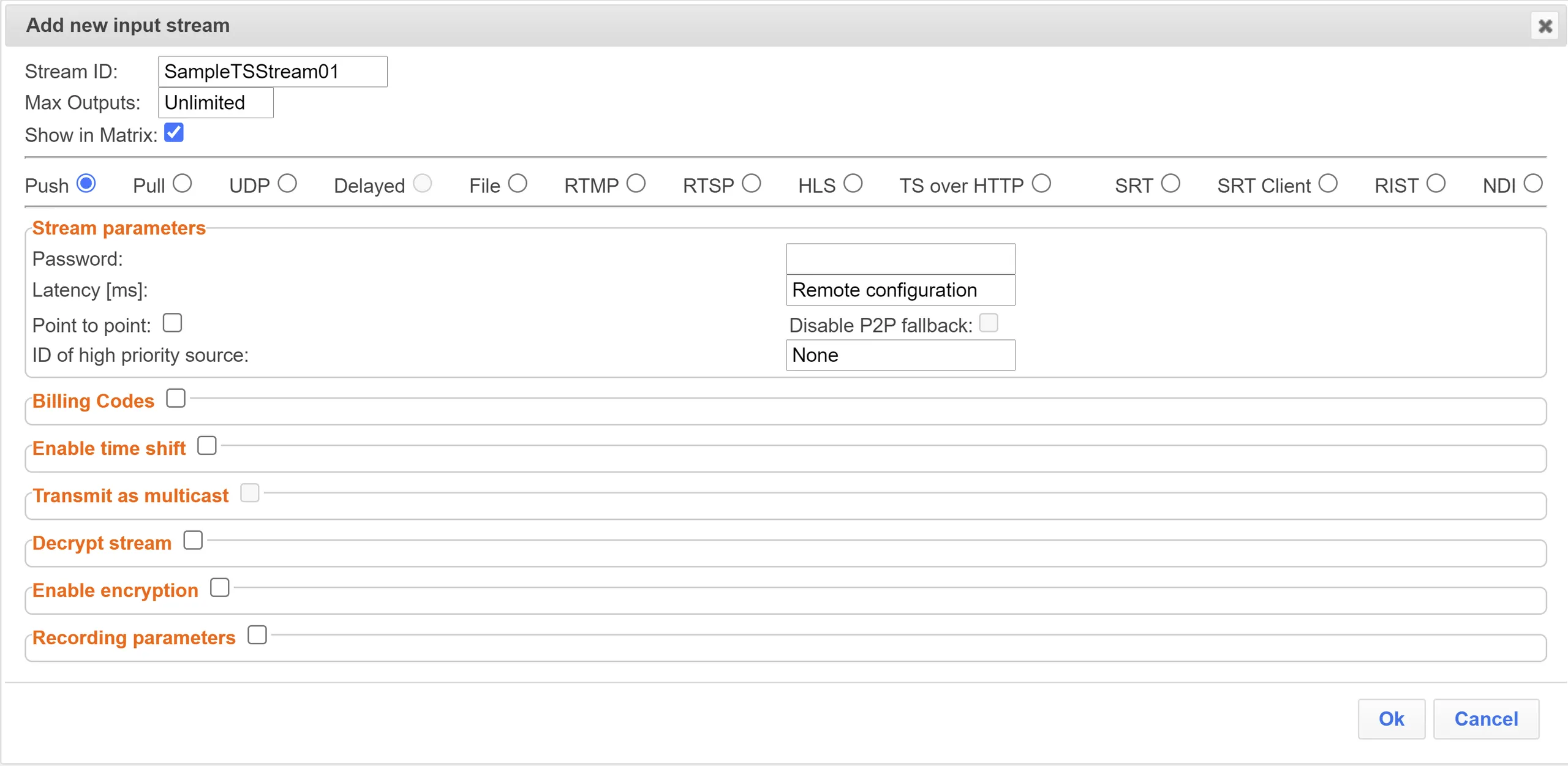

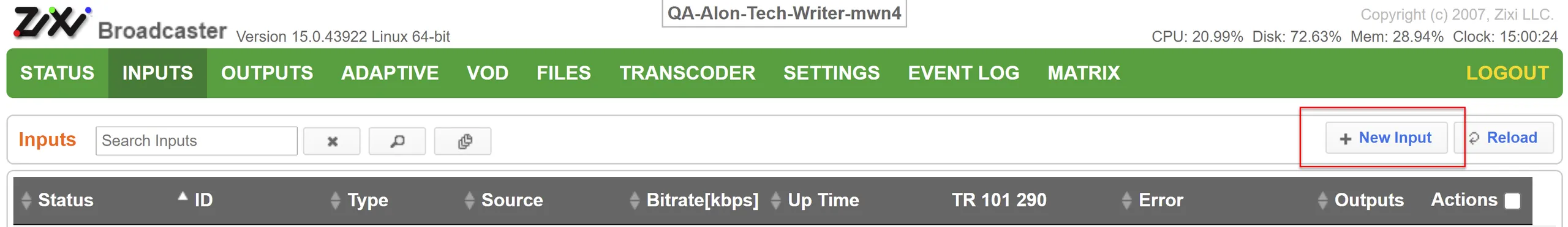

To create a Push Input on the Broadcaster:

Step 3: Creating a Push Output in ZEC/Broadcaster

Step 4: Creating a Push Input on Zixi Broadcaster
