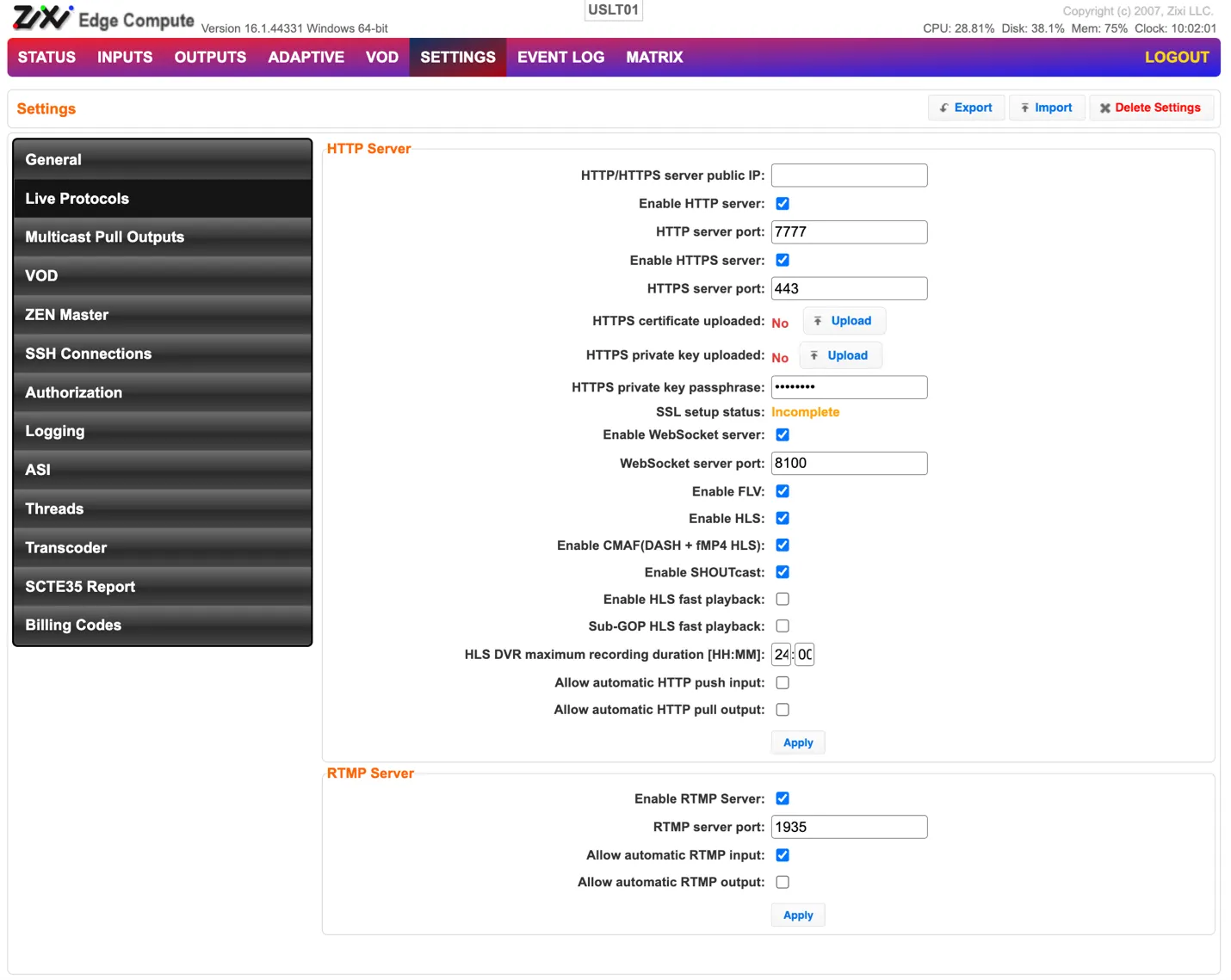

Before adding streams, we need to configure ZEC to accept RTMP. It is possible to have RTMP inputs automatically connect by checking the

 check box.  In this case you could skip the adding an input section below. Once Wirecast is pushing the stream you can "Save" it on the ZEC inputs page to preserve the input even when Wirecast is not pushing the stream.

Step 1 - Downloading ZEC and Generating License Key

Step 2 - Setting ZEC to receive RTMP
