Whether you manage your streams as Sources in ZEN Master or Inputs in Broadcaster, Zixi provides an inline HTML5 player to let you see the stream playing without having to go to an external player.

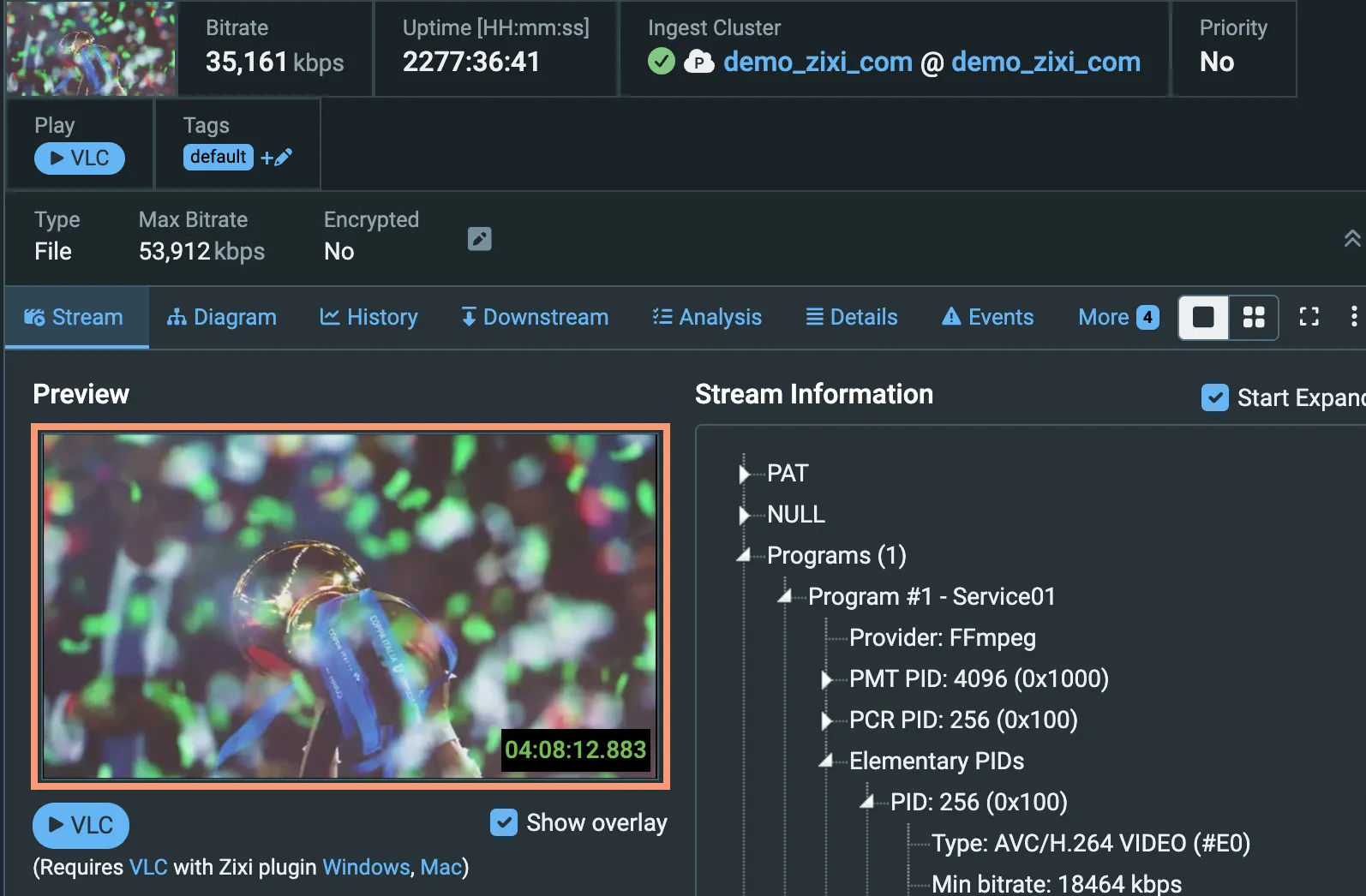

In ZEN Master, you can view the live stream for a source by going to Sources List and clicking on the source you want to see. The Source Details will open on the Stream tab, which includes in the inline player as well as other source information:

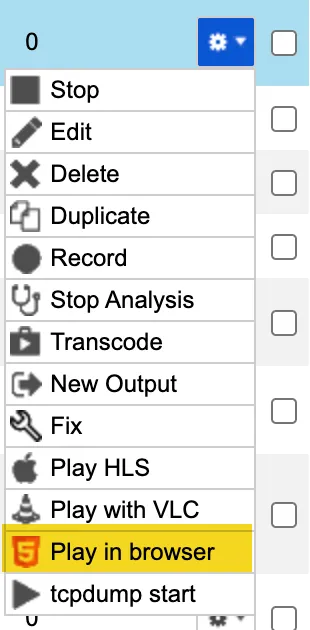

In Broadcaster, the inline player is opened from that Actions Menu for an input:

AWS SSM User Guide

The Zixi Inline/HTML5 Player
