Using Output Templates

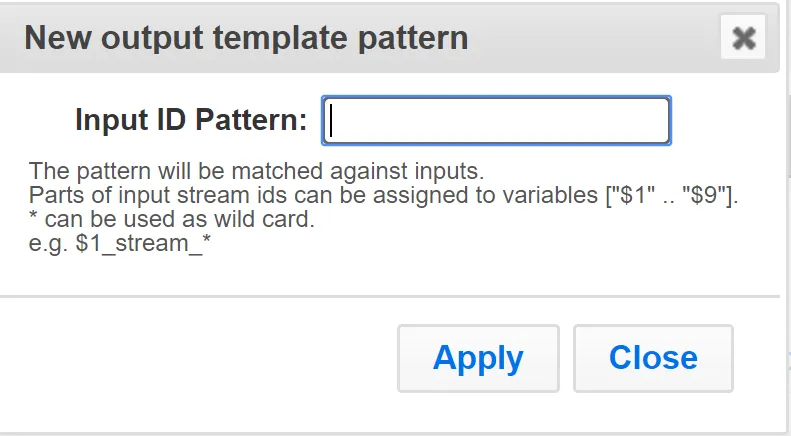

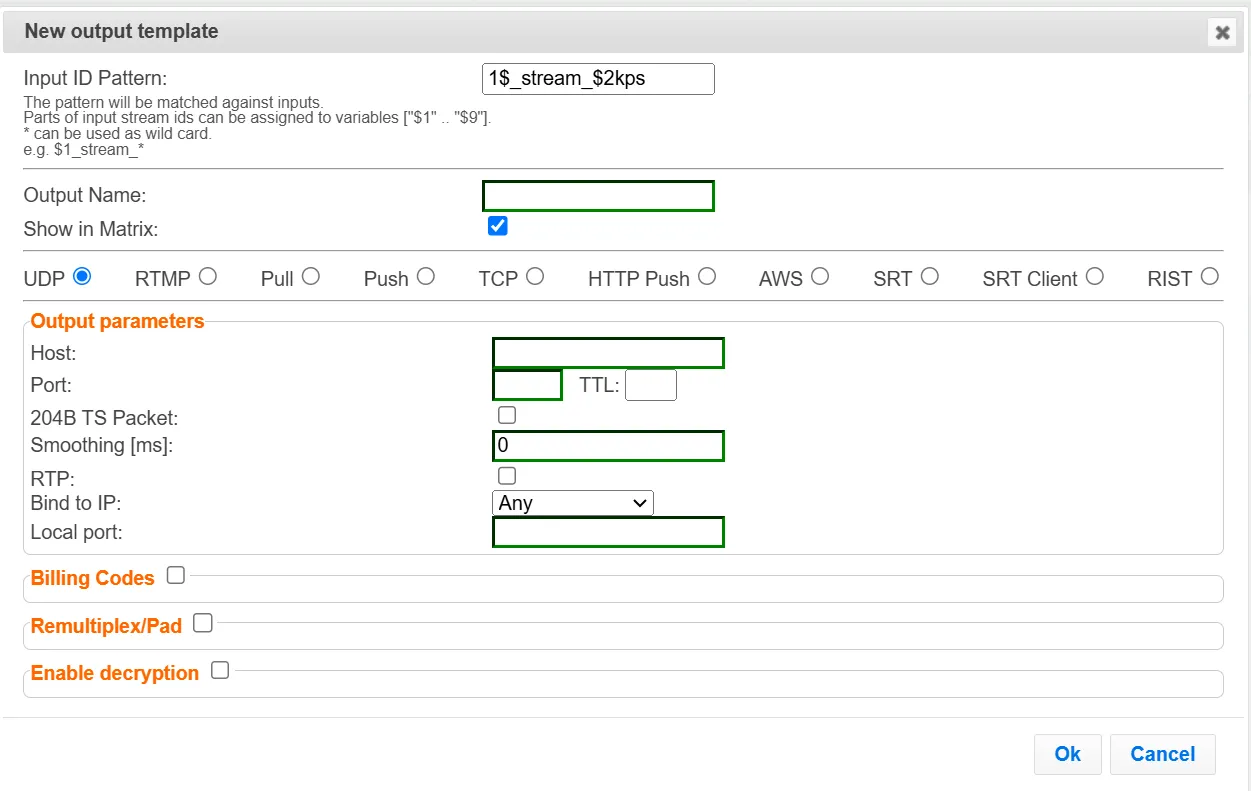

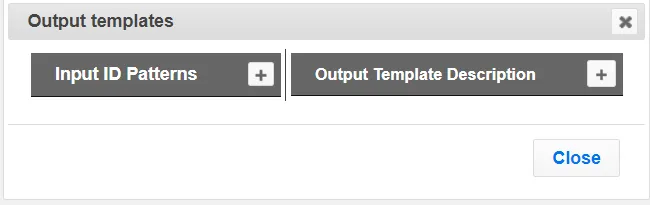

instead of manually creating an ouput and then connecting the output to an input, you can define output templates with rules for automatic creation of outputs with predefined settings the template includes an input pattern when an input pattern matches the pattern of an incoming input stream, the output is created automatically to create a new output template click the outputs tab at the top of the zixi broadcaster administrative screen in the menu bar, click the templates button the output templates window is displayed under input id parameters , click + the new output pattern template window is displayed in the input pattern field, enter a pattern for the stream id of the input stream for which an output will be automatically created this pattern will be used to identify the input stream and can include variables that are marked with the "$" sign followed by a number (e g $1, $2, etc ) and/or with an asterisk " " wildcard the patterns should also include a part of the string that requires an exact match for example, the pattern "$1 stream $2kbps" will match an input stream "talk show stream 600kbps" click apply the newly created input id pattern is added to the input id patterns list from the input id patterns list, select a pattern for which you want to relate an output template in the output template description section click the “ + ” button the new output template window is displayed in the output nam e field, enter a name for the output that will be created the name can include variables used in the input pattern field for example, the pattern "$1 ouput stream $2kps" will eventually create an output "talk show output stream 600kbps", as it uses the variables that were defined in the input pattern field select the desired output type and fill in the relevant output parameters according to the instructions of the relevant section udp output – follow the instructions in the adding udp outputs docid\ vew0wh edbjrucbabsoai section rtmp output – follow the instruction in the adding rtmp and rtmps outputs docid\ hmm4m2ayzrnyvrigq3anh section pull output follow the instruction in the adding pull outputs docid\ tvxdvnrgvpvhiqlmpuqzz section push output follow the instruction in the adding push outputs docid\ nsqd917a5wh xggsccsrd section tcp output follow the instruction in the adding tcp outputs docid\ xdsgpyx5yijft8donrnmy section http push follow the instructions in the adding http push outputs docid\ on4nuowuvfrskzrnyfpiu section note that the target url field can also use the same variables used in the input pattern field for example, "https //s3 amazon com/zixi/$1 folder $2kbps" aws output follow the instructions in the adding aws outputs docid\ cekyac7ji9gltbcpm40k3 section note that the url field can also use the same variables used in the input pattern field for example, " https //s3 amazon com/zixi/$1 folder $2kbps https //s3 amazon com/zixi/$1 folder $2kbps " rist output follow the instruction in the adding rist outputs docid\ f xm15a78myl8xf vhpet section click ok the template is added to the output template description list when an input pattern will match the pattern of an incoming input stream, the defined output is created automatically
