Adding HTTP Push Outputs
The HTTP Push output stream can be encapsulated in HLS or DASH. The source of the output stream is a predefined adaptive group that has been configured in the Adaptive Groups screen. The configuration of the stream includes the option to delete outdated stream fragments on the server. SCTE-35 markers in the source input will be preserved and used to segment the stream for both HLS and DASH encapsulation. Output streams can be pushed to one Zixi Broadcaster or ZEC.
The path to the destination can be formed in one of the following ways:
- Full path – in this option, the path would be constructed as follows: <base url>/<path>/<file>?<additional params may be also with path and file>
- Path in parameters - in this option, the path would be constructed as follows: <base url>?<additional params may be also with path and file>
- Flat path - in this option, the path would be constructed as follows: <base url>/<path>_<file>?<additional params may be also with path and file>. Any "/" in the path should be replaced with "_".
Low Latency HLS - Zixi Broadcaster supports low-latency HLS delivery using chunked transfer encoding, which starts sending an HTTP response as chunks of data when they are ready before the complete response is available. Chunked transfer encoding can be used with transport stream (TS) segments and with fragmented MP4 (fMP4). For low-latency HLS and DASH, Zixi Broadcaster must be used as an origin server. To enable low-latency HLS and DASH, select Enable HLS Fast playback on Settings > Live Protocols screen.
To create an HTTP Push Output:
In the Zixi Broadcaster Outputs page, click + New Output.
The New output window is displayed.
Select the HTTP Push option (radio button).
Type in the unique identifier for this output in the Output Name.
Select an Input Adaptive Group to be made available on this output from the adjacent drop-down list. To create an Adaptive Group, see Adaptive Groups.
Select the Show in Matrix check box to display this stream in the Matrix (see Using the Matrix). Default: Selected.
Select the Log this stream checkbox if you would like to generate event logs for this output.
Specify the Output parameters (see Output Stream Parameters TableOutput Stream Parameters Table below).
Click OK.
The new HTTP Push Output with its settings is created and now appears on the screen.
Output Stream Parameters Table
Parameter | Description |
|---|---|
Output Parameters |
|
Encapsulation Options |
|
Target URL | Depending on the selection in the Segment Path field below, this field should include the following:
|
Additional URL Parameters | Depending on the selection in the Segment Path field below, this field should include the following:
URL parameters support macros as follows:
|
Delete outdated fragments from server | Select this checkbox to delete any outdated stream fragments from the server. |
Upload DVR playlist | Select this checkbox if you are streaming a recorded/VOD stream and you want to upload a DVR playlist in addition to the live playlist. |
Segment Path | Select one of the following path segmentation types:
|
Ignore TLS certificate errors | Select this option when streaming to a trusted server that does not have a valid certificate. When this option is selected, Zixi Broadcaster will ignore the TLS certificate errors and transmit the stream to its destination. |
Authorization | Select this checkbox if your destination server requires authorization credentials to connect. |
Method | Select one of the following authorization methods:
|
Username | Type the username |
Password | Type the password |
Billing Codes | Billing codes are used to identify and differentiate traffic on a Zixi Broadcaster for billing purposes. When a billing code is added to a Source or Target, Zixi can track the traffic on that Broadcaster input or output separately from other inputs and outputs on the same Broadcaster. Billing codes are created by Zixi personnel on the Zixi Customer Portal for a particular organization. |
Billing Code | Enter the billing code that corresponds to this stream. The relevant billing can be obtained from the organization that received the billing code from Zixi. |
Billing password | Enter the password that corresponds to this billing code. |

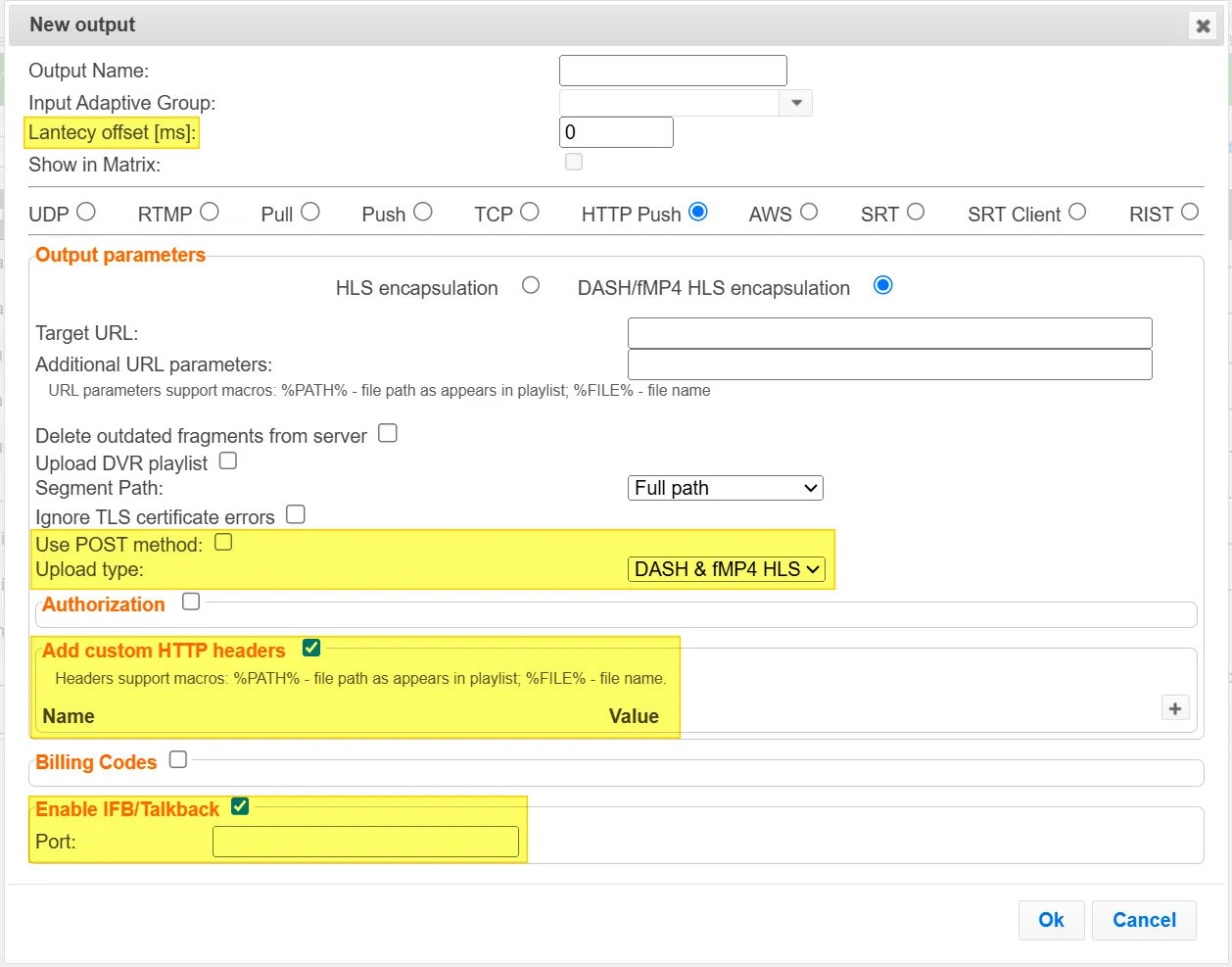

Advanced Mode
The fields discussed below are optional and available only in Advanced Mode.
To enter Advanced Mode add the URL parameter ?advanced=1 to the Zixi Broadcaster URL in your browser and press Enter/Return to reload the page:
Note the Advanced Mode settings are generally intended for advanced users and special cases. If you do not understand the settings, you should probably accept the default values.
General
- Latency offset [ms] - Specify the additional buffering time in milliseconds. Increasing this value can improve stream stability in unstable network conditions, but will increase end-to-end delay. Default: 0 ms
Output Parameters
- Use POST method - Select this option to upload segments/playlists to the origin/CDN using HTTP POST. Applicable when your origin/CDN doesn't accept PUT and requires POST. When disabled - uploads with HTTP PUT, which is the standard WebDAV-style file upload and works with most origins/CDNs.
- Upload type -
Add Custom HTTP Headers
- Name - The name of the HTTP header to include in the request (e.g., Authorization)
- Value - The value to send for the selected header. (e.g., Bearer eyJhbGciOi...)
Enable IFB/Talkback
- Port - Specify the port to listen on. This port must be open on all firewalls between the Zixi Broadcaster and other devices it is communicating with.
