Adding TCP Outputs

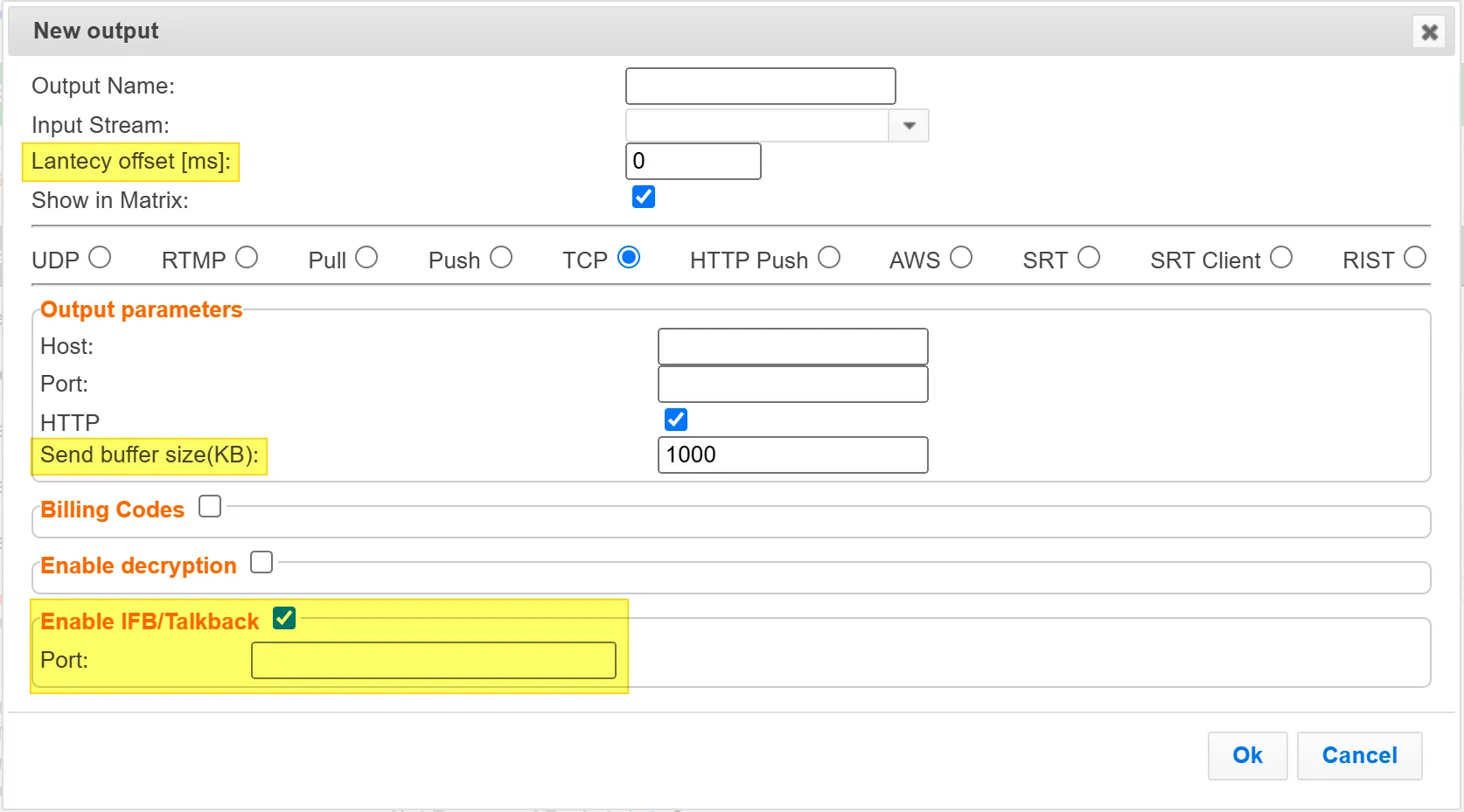

tcp protocol provides reliable transmission guarantee for no loss of frame its bandwidth probing and congestion control will attempt to use all of the available bandwidth between the server and client, fetching content as quickly as possible while being friendly to other (tcp) traffic on the same links the tcp output can push the stream directly to a tcp socket or to an http server to create a tcp output in the zixi broadcaster outputs page, click new output the new output window is displayed new tcp output type in the unique identifier for this output in the output name select an input stream to be made available on this output from the adjacent drop down list select the show in matrix check box to display this stream in the matrix (see using the matrix docid\ kyky08nfft6ygizignhq5 ) default selected select tcp specify the output parameters (see output stream parameters table below) if the target is an http server, select the http checkbox in this case, http headers will be added to the stream enter additional parameters as necessary (see output stream parameters table) click ok the new tcp output with its settings is created and now appears on the screen output stream parameters table parameter description output parameters host the destination host for the stream port specify the ports to listen on for tcp streams default 7777 http if the target is an http server, select the http checkbox in this case, http headers will be added to the stream billing codes billing codes are used to identify and differentiate traffic on a zixi broadcaster for billing purposes when a billing code is added to a source or target, zixi can track the traffic on that broadcaster input or output separately from other inputs and outputs on the same broadcaster billing codes are created by zixi personnel on the zixi customer portal for a particular organization billing code enter the billing code that corresponds to this stream the relevant billing can be obtained from the organization that received the billing code from zixi billing password enter the password that corresponds to this billing code enable decryption select this checkbox to enable decryption of an encrypted stream decryption type if the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of encryption that was used select automatic to decrypt a stream that has been encrypted using automatic encryption only if the stream has not been encrypted, select none (default) important notice if the stream has been encrypted you must decrypt it in the output decryption key enter the decryption key to decrypt the encrypted stream
