Adding ASI Outputs

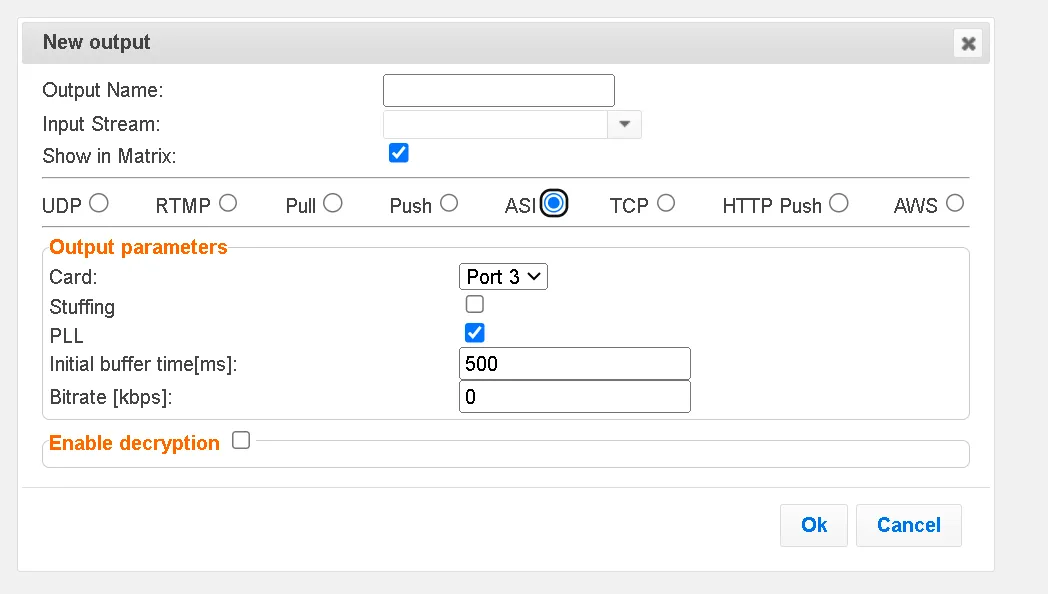

the asi output used asi card to take the transport stream from the zec and delivers it through the coax cable the asi card is not doing any processing, just moving it from the zec to the cable to create an asi output in the zixi broadcaster outputs page, click new output the new output window is displayed new asi output type the unique identifier for this output in the output name select an input stream to be made available on this output from the drop down list select the show in matrix check box to display this stream in the matrix (see using the matrix docid\ kyky08nfft6ygizignhq5 ) default selected select asi specify the output parameters (see output stream parameters table below) click ok the new asi output with its settings is created and now appears on the screen output stream parameters table parameter description output parameters card select the port number that corresponds to the port numbers on the asi card stuffing select this checkbox to achieve cbr (constant bitrate) by padding the asi stream with ts null packets pll select this checkbox to enable a phase locked loop a phase locked loop or phase lock loop (pll) is a control system that generates an output signal whose phase is related to the phase of an input signal when selecting this option, the system will adjust the bitrate that is sent according to the fullness rate of the output buffer initial buffer time to avoid underflows, specify the output buffer size that will be filled before starting the transmission bitrate specify the actual bitrate in kbps or the maximum stream bitrate in case of a vbr stream enable decryption select this checkbox to decrypt an encrypted stream decryption type if the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of encryption that was used select automatic to decrypt a stream that has been encrypted using automatic encryption only if the stream has not been encrypted, select none (default) important notice if the stream has been encrypted you must decrypt it in the output decryption key if the decryption type includes a key, enter the key to decrypt the stream during output
