Adding SRT Outputs

2min

The SRT output can be pulled to/from an SRT-enabled device. SRT stands for ‘Secure Reliable Transport’ and is an open-source video transport protocol and technology stack. SRT uses secure streams and easy firewall traversal to optimize streaming performance and deliver high-quality video over even the most unreliable networks.
To Create an SRT Output:
1

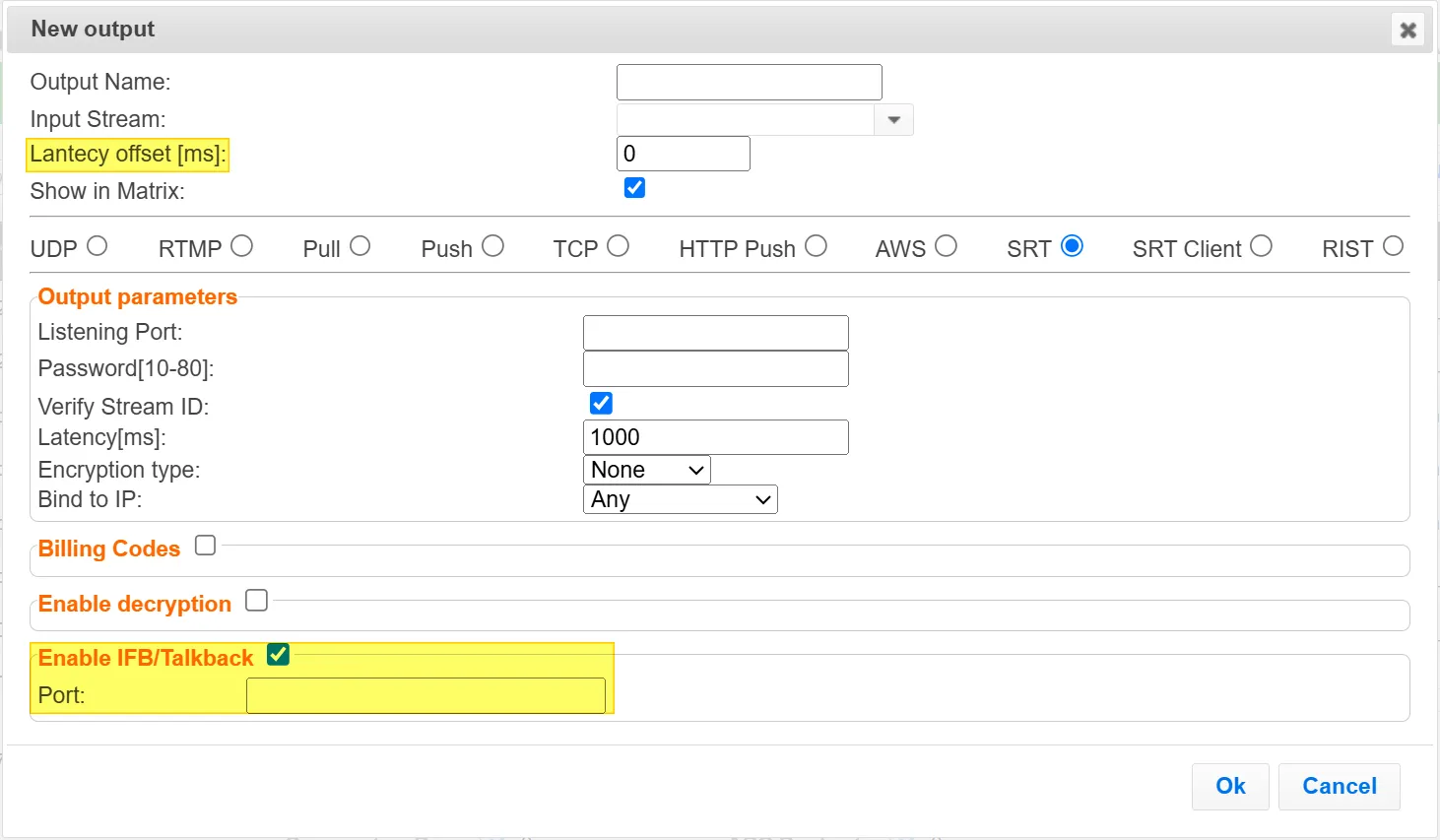

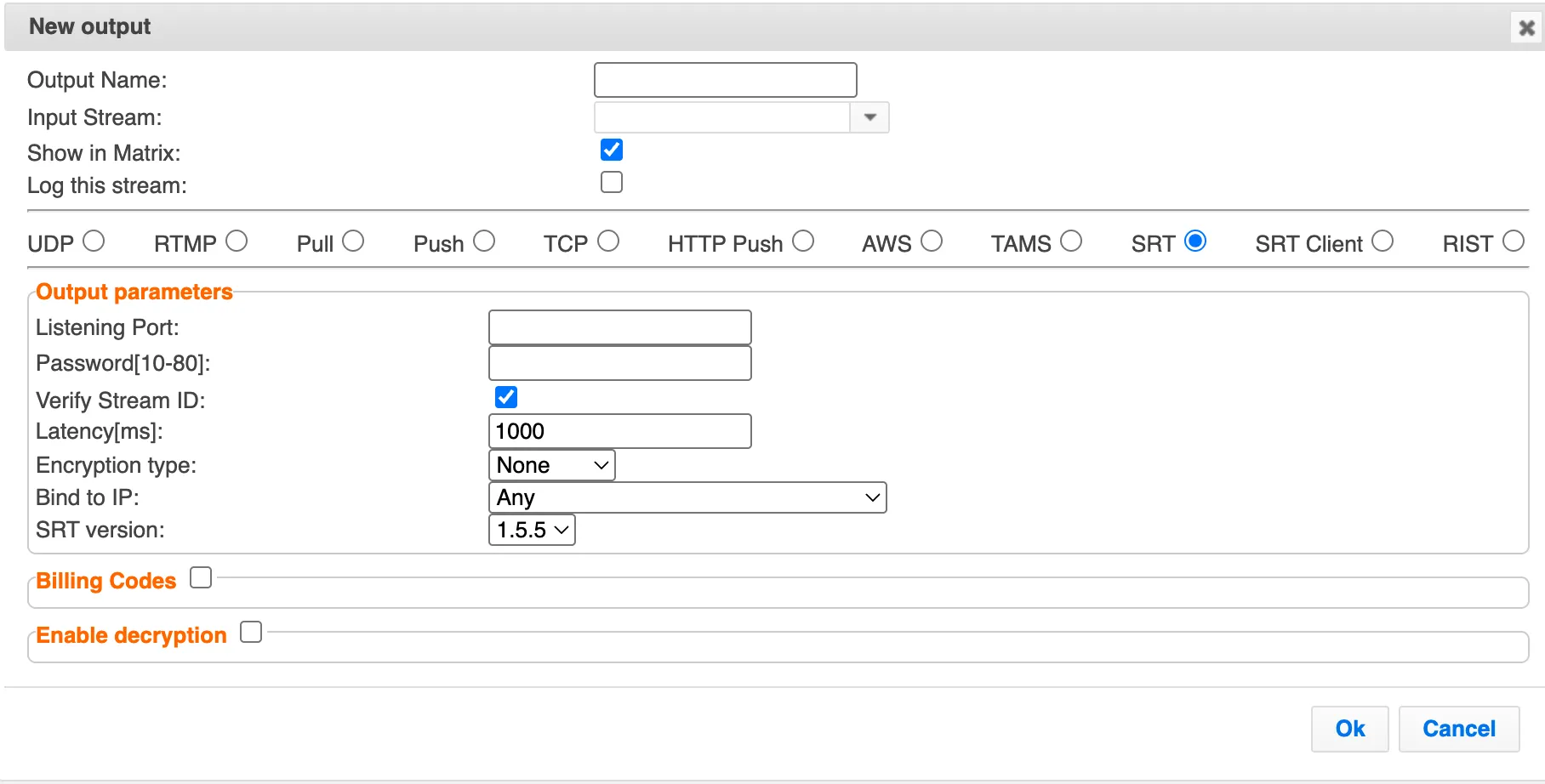

In the Zixi Broadcaster Outputs page, click New Output. The New output window is displayed.
2
Type in the unique identifier for this output in the Output Name. The Output stream Name must be unique. This Output name becomes the SRT stream ID when connecting an SRT Client to this Output.
3
Select an Input Stream to be made available on this output from the adjacent drop-down list.
4
Select the Show in Matrix check box to display this stream in the Matrix (see Using the Matrix﻿ ). Default: Selected.
5
Select SRT.
﻿


6
Specify the Output parameters (see Output Stream Parameters Table below).
7
Click OK. The new SRT Output with its settings is created and now appears on the screen.
Output Stream Parameters Table
Parameter
Description
Output Parameters


Listening Port
Specify the port to listen on. This port must be open on all firewalls between the Zixi Broadcaster and other devices it is communicating with. This port number can be used on multiple SRT outputs by entering the desired port.

Verify Stream ID
Enable this option to use a single port for multiple SRT outputs. The system will identify the stream by verifying its Stream ID.
Bind to IP
Select from the drop-down list the local IP address to be used for this output, OR select Any to enable any IP to be used.
Billing Codes
Billing codes are used to identify and differentiate traffic on a Zixi Broadcaster for billing purposes. When a billing code is added to a Source or Target, Zixi can track the traffic on that Broadcaster input or output separately from other inputs and outputs on the same Broadcaster. Billing codes are created by Zixi personnel on the Zixi Customer Portal for a particular organization.
Billing Code
Enter the billing code that corresponds to this stream. The relevant billing can be obtained from the organization that received the billing code from Zixi.
Billing password
Enter the password that corresponds to this billing code.
Enable Decryption
Select this checkbox to decrypt an encrypted stream.
Decryption type
If the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of encryption that was used.
Select Automatic to decrypt a stream that has been encrypted using Automatic encryption.
Only if the stream has not been encrypted, select None (default).
Important Notice: if the stream has been encrypted you must decrypt it in the output
Decryption key
If the decryption type includes a key, enter the key to decrypt the stream during output.
﻿

Parameter	Description
Output Parameters
Listening Port	Specify the port to listen on. This port must be open on all firewalls between the Zixi Broadcaster and other devices it is communicating with. This port number can be used on multiple SRT outputs by entering the desired port.
Verify Stream ID	Enable this option to use a single port for multiple SRT outputs. The system will identify the stream by verifying its Stream ID.
Bind to IP	Select from the drop-down list the local IP address to be used for this output, OR select Any to enable any IP to be used.
Billing Codes	Billing codes are used to identify and differentiate traffic on a Zixi Broadcaster for billing purposes. When a billing code is added to a Source or Target, Zixi can track the traffic on that Broadcaster input or output separately from other inputs and outputs on the same Broadcaster. Billing codes are created by Zixi personnel on the Zixi Customer Portal for a particular organization.
Billing Code	Enter the billing code that corresponds to this stream. The relevant billing can be obtained from the organization that received the billing code from Zixi.
Billing password	Enter the password that corresponds to this billing code.
Enable Decryption	Select this checkbox to decrypt an encrypted stream.
Decryption type	If the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of encryption that was used. Select Automatic to decrypt a stream that has been encrypted using Automatic encryption. Only if the stream has not been encrypted, select None (default). Important Notice: if the stream has been encrypted you must decrypt it in the output
Decryption key	If the decryption type includes a key, enter the key to decrypt the stream during output.
