Adding SRT Client Outputs

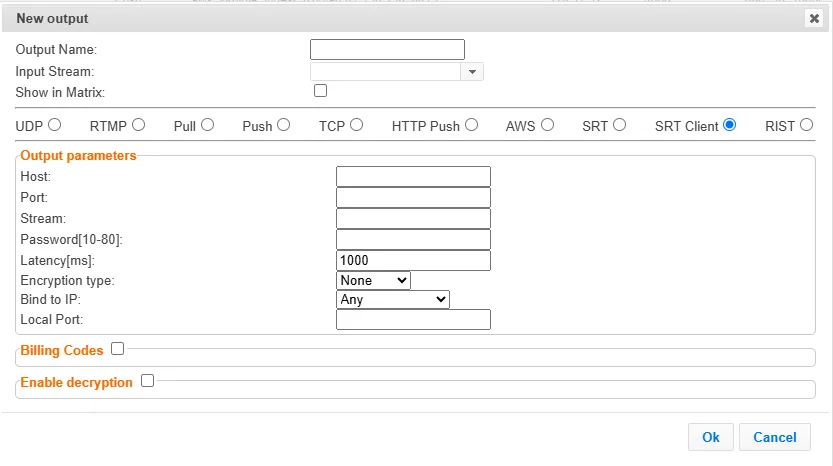

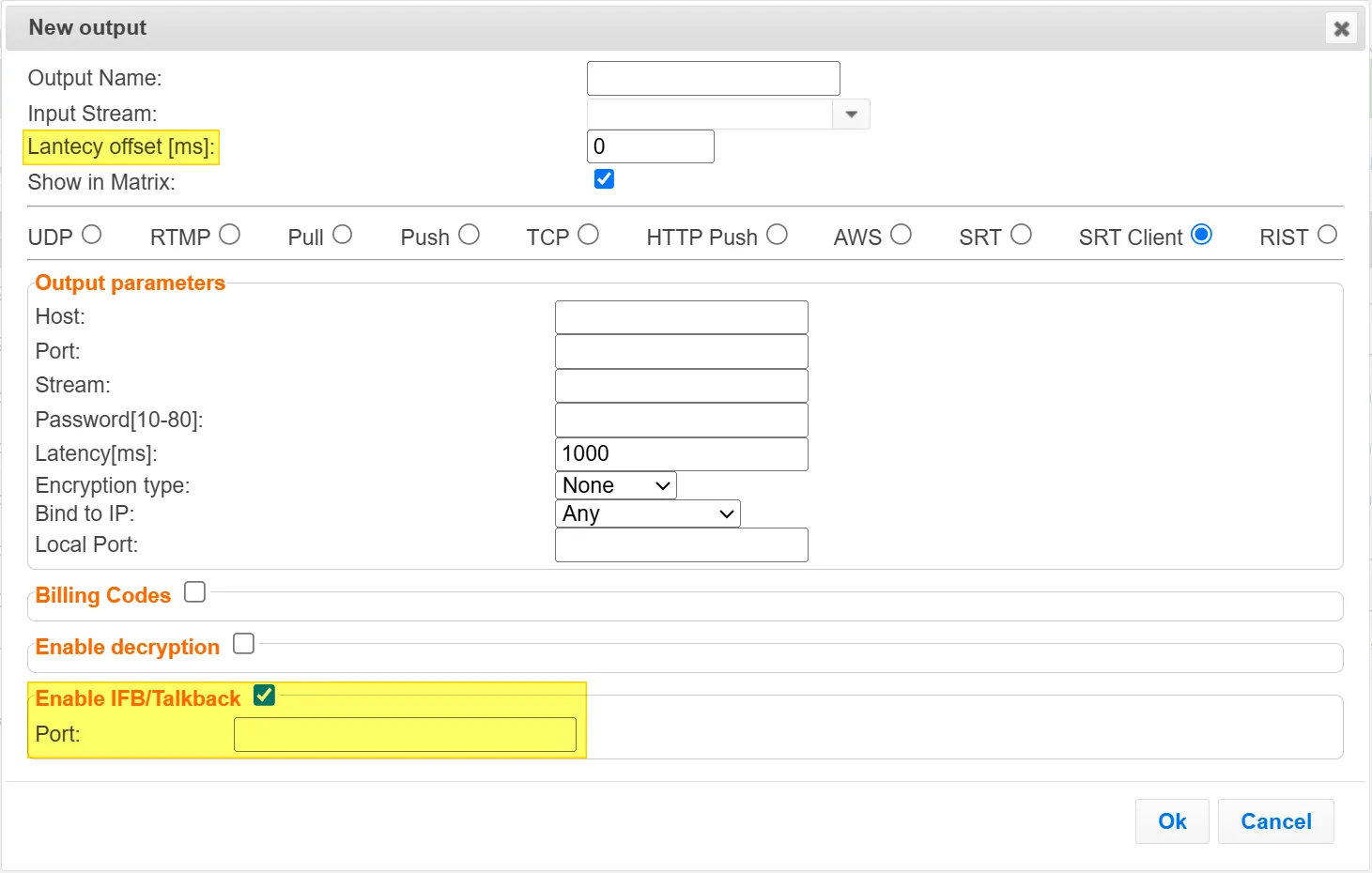

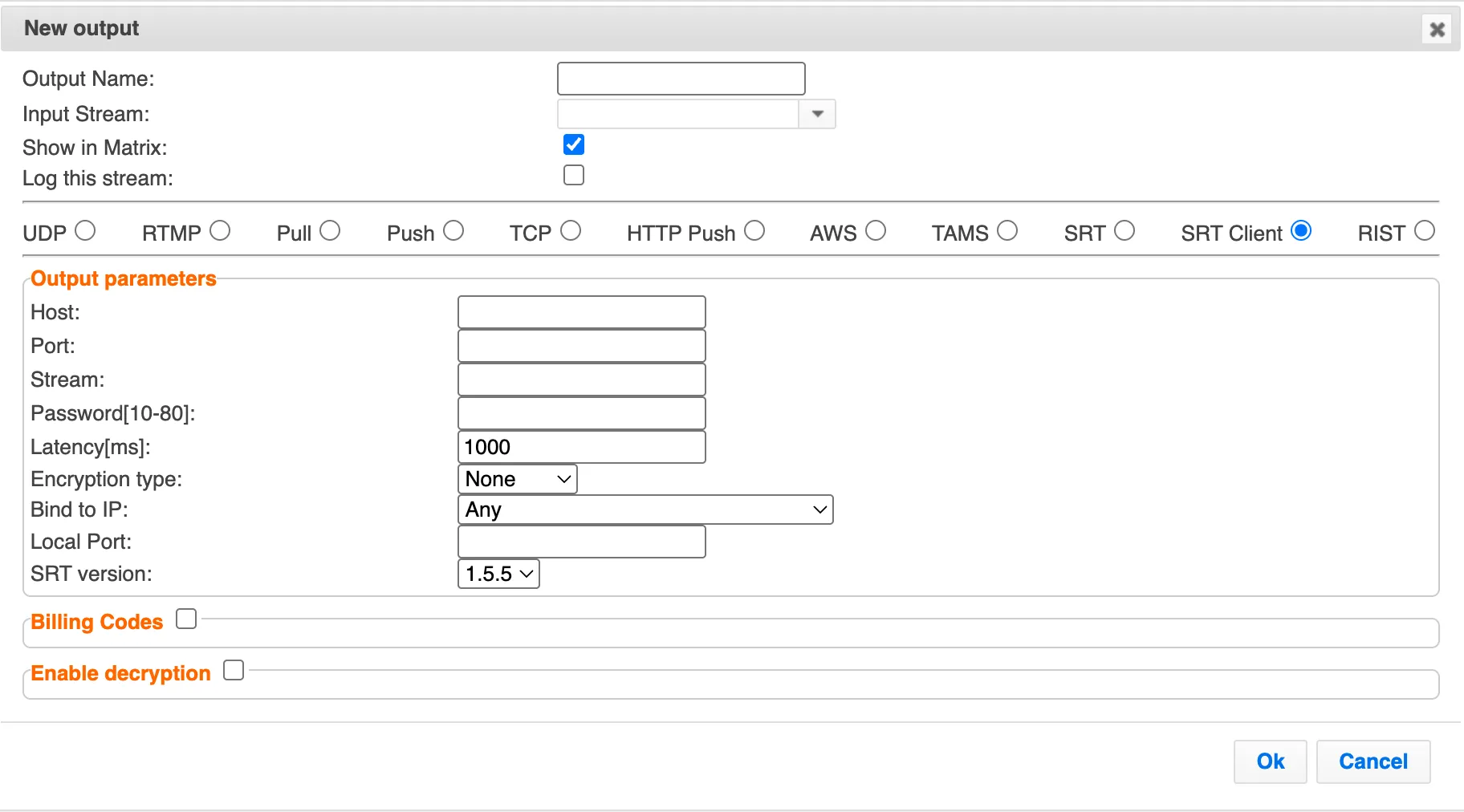

the srt client output can be pushed to an srt enabled device srt stands for ‘secure reliable transport’ and is an open source video transport protocol and technology stack srt uses secure streams and easy firewall traversal to optimize streaming performance and deliver high quality video over even the most unreliable networks to create an srt output in the zixi broadcaster outputs page, click new output the new output window is displayed type in the unique identifier for this output in the output name select an input stream to be made available on this output from the adjacent drop down list select the show in matrix check box to display this stream in the matrix (see using the matrix docid\ kyky08nfft6ygizignhq5 ) default selected select srt client specify the output parameters (see output stream parameters table below) click ok the new srt output with its settings is created and now appears on the screen output stream parameters table parameter description output parameters host the destination host for the srt stream port specify the ports to which the stream will be pushed password if the stream is password protected, enter the password latency specify the maximum latency of the stream in milliseconds default 1000 encryption type specify the type of encryption (aes 128/192/256) bind to ip select from the drop down list the local ip address to be used for this input, or select any to enable any ip to be used local port optionally binds the connection to the specified local port this may be useful if your firewall requires you to create a rule for a specific port or, in complicate scenarios, when you need to control your local ports aalid ports values 1 65535 (although values 1 1024 are usually used for the operating system and not for applications) billing codes billing codes are used to identify and differentiate traffic on a zixi broadcaster for billing purposes when a billing code is added to a source or target, zixi can track the traffic on that broadcaster input or output separately from other inputs and outputs on the same broadcaster billing codes are created by zixi personnel on the zixi customer portal for a particular organization billing code enter the billing code that corresponds to this stream the relevant billing can be obtained from the organization that received the billing code from zixi billing password enter the password that corresponds to this billing code enable decryption select this checkbox to decrypt an encrypted stream decryption type if the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of encryption that was used select automatic to decrypt a stream that has been encrypted using automatic encryption only if the stream has not been encrypted, select none (default) important notice if the stream has been encrypted you must decrypt it in the output decryption key if the decryption type includes a key, enter the key to decrypt the stream during output
