ZEC Network

2min

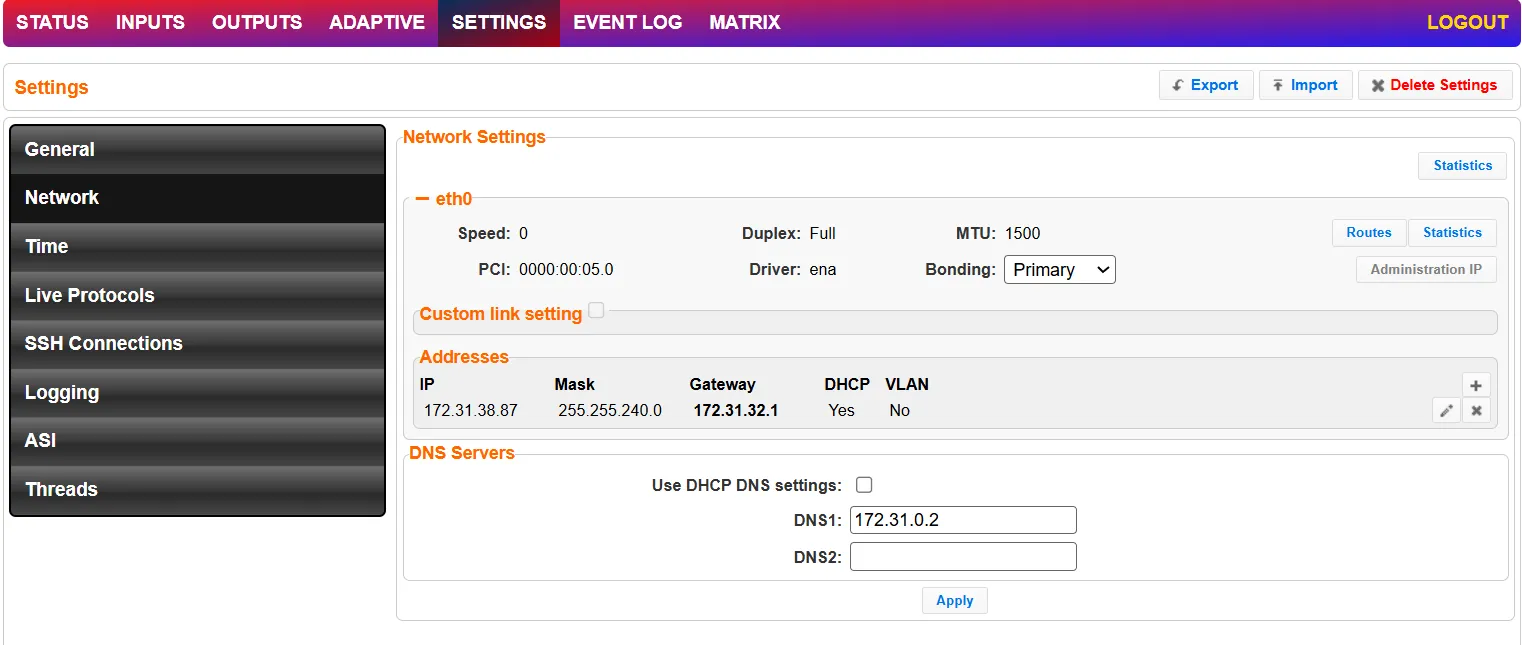

The Network screen enables the configuration of the network settings of the ZEC. The screen includes the option to configuration multiple NICs, VLANs, and multiple DNS Servers.

﻿
Field
Description
Network Settings


eth0
Click to configure the specified NIC. Displys the following parameters:
Speed – the network card speed
Duplex – whether the network card is full-duplex or half-duplex
MTU - the size of the largest protocol data unit (PDU) that can be communicated in a single network layer transaction.
PCI
Driver
Bonding
Custom link settings
Select this checkbox to configure different link settings than the default settings.
Addresses
Displays the current links that are configured. You can edit these settings by clicking the Edit (pencil icon) button. Click the '+' button to add another link.
IP
Mask
Gateway
DHCP
VLAN
DNS Servers


Use DHCP DNS settings
Select this option to use the DHCP settings instead of the DNS. If not selected, configure at least one DNS server.
To Display the Network Statistics:
1
From the Settings page of the ZEC, click Network on the left-hand side.
The various Network settings are displayed.
2
Click Statistics on the right-hand side. The UDP statistics window is displayed.


Click the Refresh button to update the data or Close to close the window.
﻿
UDP Statistics
﻿
Udp6OutDatagrams
The total number of UDP 6 datagrams sent from this entity.
UdpInCsumErrors
The total number of UDP checksum errors delivered.
UdpInDatagrams
The total number of UDP datagrams delivered.
UdpinErrors
The total number of UDP errors delivered.
UdpNoPorts
The total number of received UDP datagrams for which there was no application at the destination port.
UdpOutDatagrams
The total number of UDP datagrams sent from this entity.
﻿
﻿
3
Click the Refresh button to update the data or Close to close the window.
﻿
﻿
﻿

Field	Description
Network Settings
eth0	Click to configure the specified NIC. Displys the following parameters: Speed – the network card speed Duplex – whether the network card is full-duplex or half-duplex MTU - the size of the largest protocol data unit (PDU) that can be communicated in a single network layer transaction. PCI Driver Bonding
Custom link settings	Select this checkbox to configure different link settings than the default settings.
Addresses	Displays the current links that are configured. You can edit these settings by clicking the Edit (pencil icon) button. Click the '+' button to add another link. IP Mask Gateway DHCP VLAN
DNS Servers
Use DHCP DNS settings	Select this option to use the DHCP settings instead of the DNS. If not selected, configure at least one DNS server.

UDP Statistics
Udp6OutDatagrams	The total number of UDP 6 datagrams sent from this entity.
UdpInCsumErrors	The total number of UDP checksum errors delivered.
UdpInDatagrams	The total number of UDP datagrams delivered.
UdpinErrors	The total number of UDP errors delivered.
UdpNoPorts	The total number of received UDP datagrams for which there was no application at the destination port.
UdpOutDatagrams	The total number of UDP datagrams sent from this entity.
