ZEC General

1min

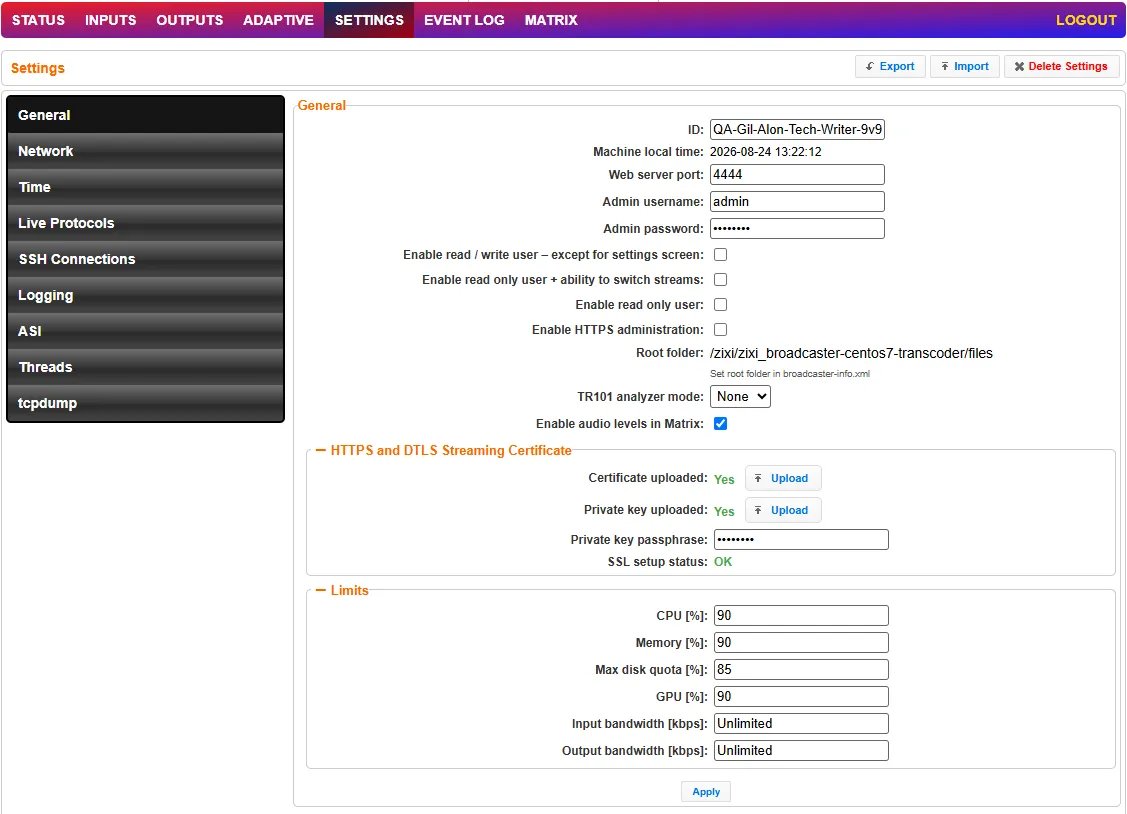

The General Settings screen includes basic configuration parameters for the server including the server’s ID, access ports, authorizations, security, and storage.

﻿
Field
Description
General


ID
The unique (alphanumeric) name of the ZEC server. Typically: host name. This field is editable.
Machine local time
Shows the current time for the machine.
Web Server Port
The port number of the web server administration. You can configure this parameter to any legal port number which is supported by your Firewall. Default: 4444
Admin User Name
The user name of the administrator. The administrator is authorized to modify all parameters in the system as well as manage all the outputs and inputs on the server.
Admin Password
The password of the administrator.
Enable read / write user - except for settings screen
Select this checkbox to enable an "Operator" user. This type of user can read and write throughout all of the screens, except for the screens under the Settings menu.
You can modify the user name (i.e. enter another name instead of Operator) and password.
Enable read-only user +ability to switch streams
Select this checkbox to enable an "User" user. This type of user can read throughout all of the screens as well as the ability to switch between existing streams.
You can modify the user name (i.e. enter another name instead of User) and password.
Enable read only user
Select this checkbox to enable an "Observer" user. This type of user can read throughout all of the screens.
You can modify the user name (i.e. enter another name instead of Observer) and password.
Enable HTTPS administration
Enables secure HTTPS connection to the server for administration. Enabling HTTPS requires the relevant certificates and private keys. To enable HTTPS, click on the checkbox and upload the required files.
Root folder
Displays the configured root folder. You can modify the root folder by modifying the broadcaster-info.xml, which is located in the ZEC installation folder (<Broadcaster_Installation_Folder>\Zixi\Broadcaster\)
TR101 analyzer mode
Select the mode in which the TR101 analyzer will operate:
None – no TR101 analysis
ATSC – based on the Advanced Television Systems Committee recommendations.
DVB – based on the Digital Video Broadcasting specifications.
Enable audio levels in matrix
Select this option to enable audio in Matrix view. When not selected the audio will be turned off.
HTTPS and DTLS Streaming Certificate
﻿
Certificate uploaded
If no certificate has been uploaded, click Upload and navigate to the file location.
Private key uploaded
If no private key has been uploaded, click Upload and navigate to the file location.
Private key passphrase
Enter the Private key passphrase for your HTTPS account.
SSL Setup Status
Displays the status of the SSL certificate upload process.
Incomplete – the SSL setup process is incomplete.
OK – the SSL setup process is complete.
Limits
Select to configure thresholds for generating an alarm.
CPU [%]
The CPU utilization threshold. If this limit is exceeded, the CPU indicator at the top of the screen will appear in red, and an alarm will be generated in the event log.
Default: 90
Memory [%]
The memory utilization threshold. If this limit is exceeded, the Memory indicator at the top of the screen will appear in red, and an alarm will be generated in the event log
Default: 90
Max Disk Quota [%]
The maximal percentage of the disk capacity that can be used. Default: 85
GPU [%]
The GPU utilization threshold.
Default: 0
Input Bandwidth [kbps]
Bandwidth utilization threshold for input streams.
Default: Unlimited.
Output Bandwidth [kbps]
Bandwidth utilization threshold for output streams.
Default: Unlimited.
﻿

Field	Description
General
ID	The unique (alphanumeric) name of the ZEC server. Typically: host name. This field is editable.
Machine local time	Shows the current time for the machine.
Web Server Port	The port number of the web server administration. You can configure this parameter to any legal port number which is supported by your Firewall. Default: 4444
Admin User Name	The user name of the administrator. The administrator is authorized to modify all parameters in the system as well as manage all the outputs and inputs on the server.
Admin Password	The password of the administrator.
Enable read / write user - except for settings screen	Select this checkbox to enable an "Operator" user. This type of user can read and write throughout all of the screens, except for the screens under the Settings menu. You can modify the user name (i.e. enter another name instead of Operator) and password.
Enable read-only user +ability to switch streams	Select this checkbox to enable an "User" user. This type of user can read throughout all of the screens as well as the ability to switch between existing streams. You can modify the user name (i.e. enter another name instead of User) and password.
Enable read only user	Select this checkbox to enable an "Observer" user. This type of user can read throughout all of the screens. You can modify the user name (i.e. enter another name instead of Observer) and password.
Enable HTTPS administration	Enables secure HTTPS connection to the server for administration. Enabling HTTPS requires the relevant certificates and private keys. To enable HTTPS, click on the checkbox and upload the required files.
Root folder	Displays the configured root folder. You can modify the root folder by modifying the broadcaster-info.xml, which is located in the ZEC installation folder (<Broadcaster_Installation_Folder>\Zixi\Broadcaster\)
TR101 analyzer mode	Select the mode in which the TR101 analyzer will operate: None – no TR101 analysis ATSC – based on the Advanced Television Systems Committee recommendations. DVB – based on the Digital Video Broadcasting specifications.
Enable audio levels in matrix	Select this option to enable audio in Matrix view. When not selected the audio will be turned off.
HTTPS and DTLS Streaming Certificate
Certificate uploaded	If no certificate has been uploaded, click Upload and navigate to the file location.
Private key uploaded	If no private key has been uploaded, click Upload and navigate to the file location.
Private key passphrase	Enter the Private key passphrase for your HTTPS account.
SSL Setup Status	Displays the status of the SSL certificate upload process. Incomplete – the SSL setup process is incomplete. OK – the SSL setup process is complete.
Limits	Select to configure thresholds for generating an alarm.
CPU [%]	The CPU utilization threshold. If this limit is exceeded, the CPU indicator at the top of the screen will appear in red, and an alarm will be generated in the event log. Default: 90
Memory [%]	The memory utilization threshold. If this limit is exceeded, the Memory indicator at the top of the screen will appear in red, and an alarm will be generated in the event log Default: 90
Max Disk Quota [%]	The maximal percentage of the disk capacity that can be used. Default: 85
GPU [%]	The GPU utilization threshold. Default: 0
Input Bandwidth [kbps]	Bandwidth utilization threshold for input streams. Default: Unlimited.
Output Bandwidth [kbps]	Bandwidth utilization threshold for output streams. Default: Unlimited.
