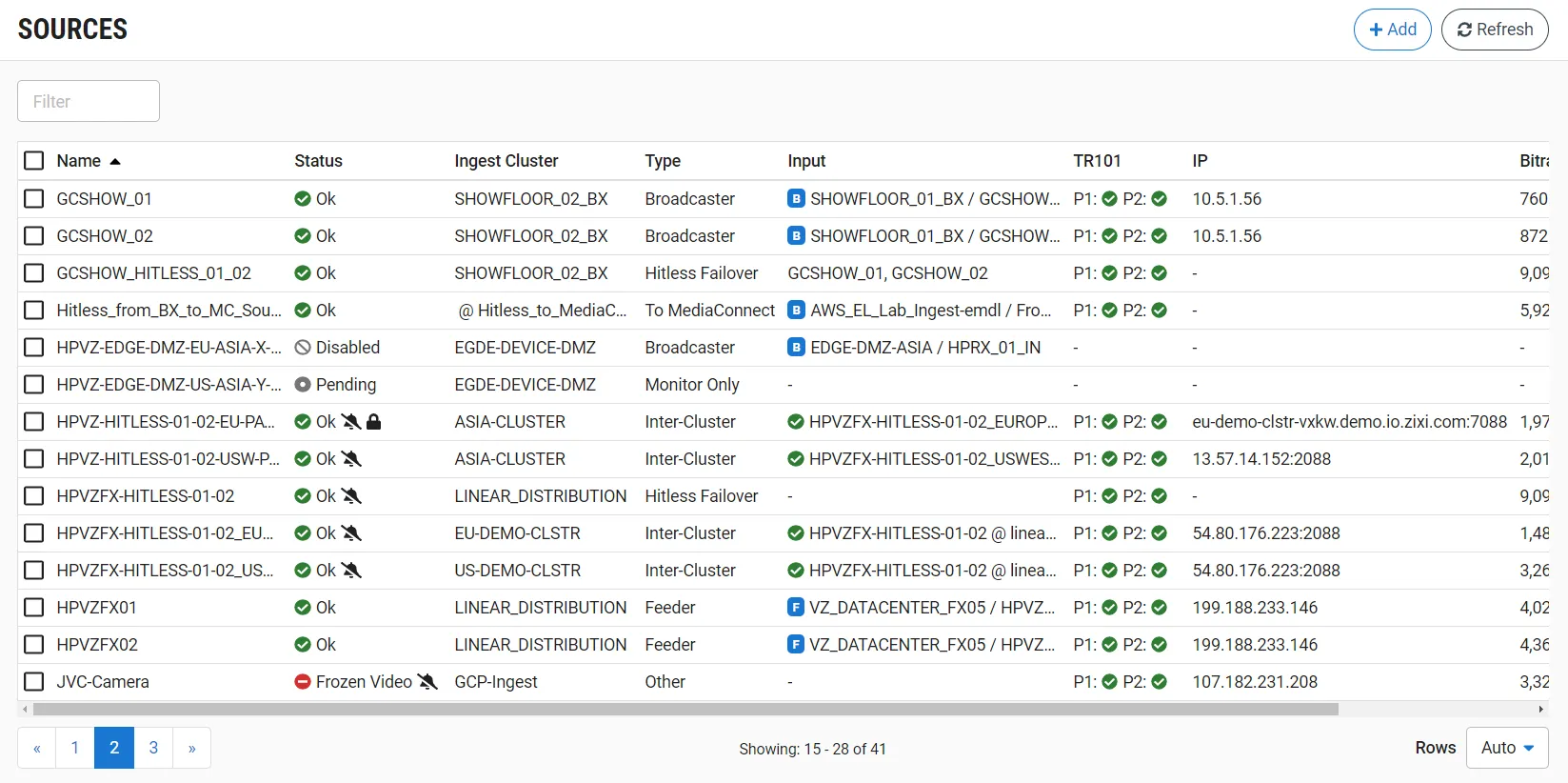

When you navigate to a list screen the list of instances is shown in full view. In this view, a column is shown for each relevant parameter and a checkbox is shown next to each instance, enabling you to perform batch processes, see

You can adjust the pagination by specifying the number of

 displayed per page. The default setting is

which displays the optimal number of rows for your screen.

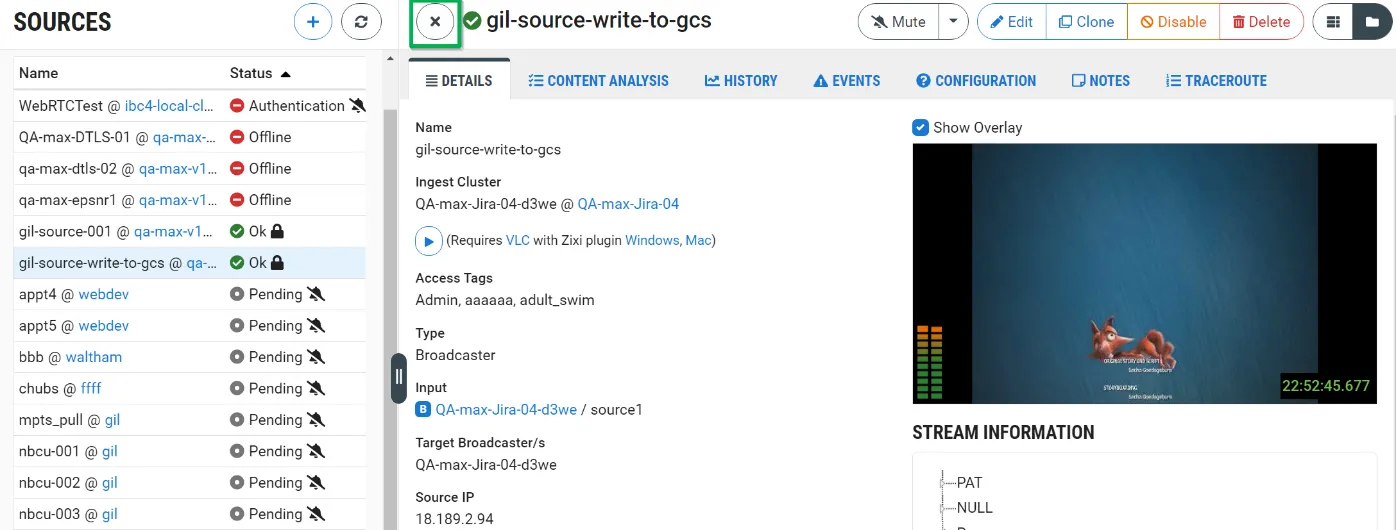

When you select an object instance the list becomes narrow, showing only the element name. Detailed info about the selected instance is shown in the Info pane to the right of the list. The Info pane can be shown either in

 (with collapsible sections). You can return to the full list view by clicking on the "

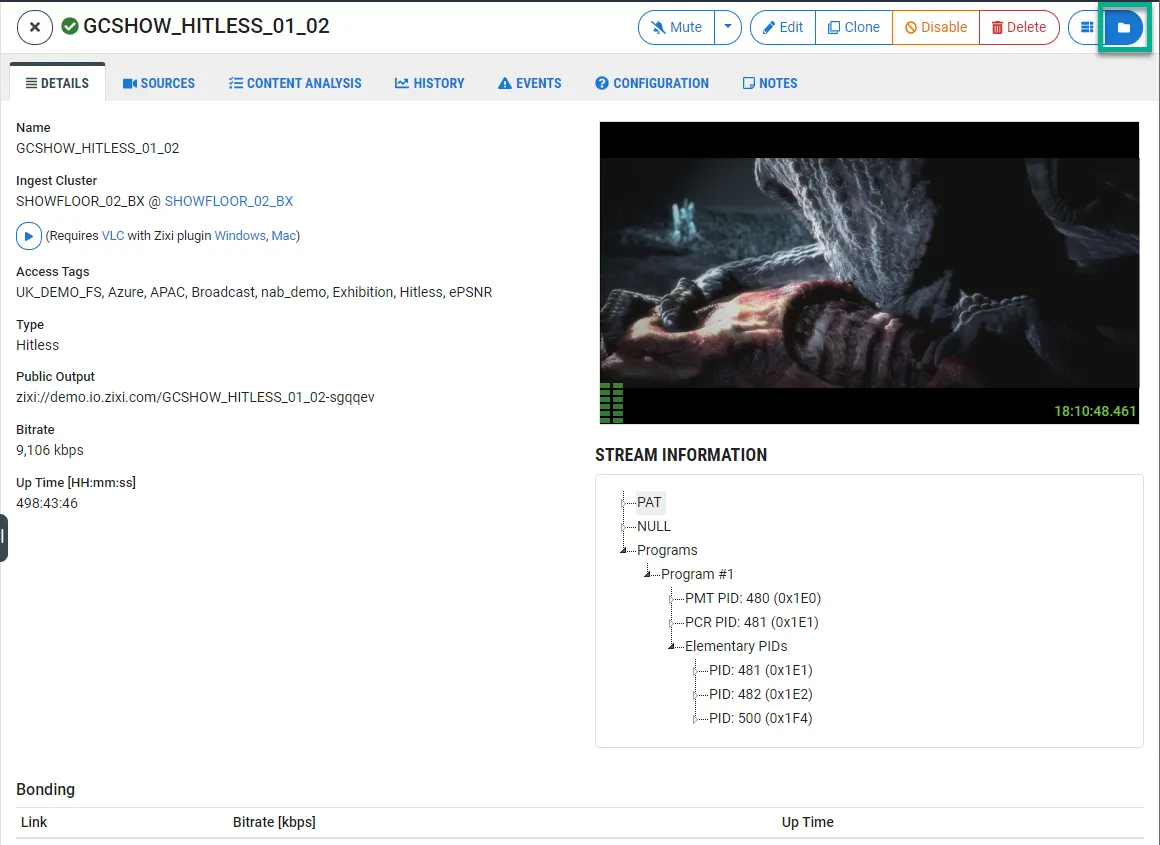

In tab view, selectable in the top right-hand corner, information is organized by tabs. The information in each tab is displayed responsively to adjust for browser width.

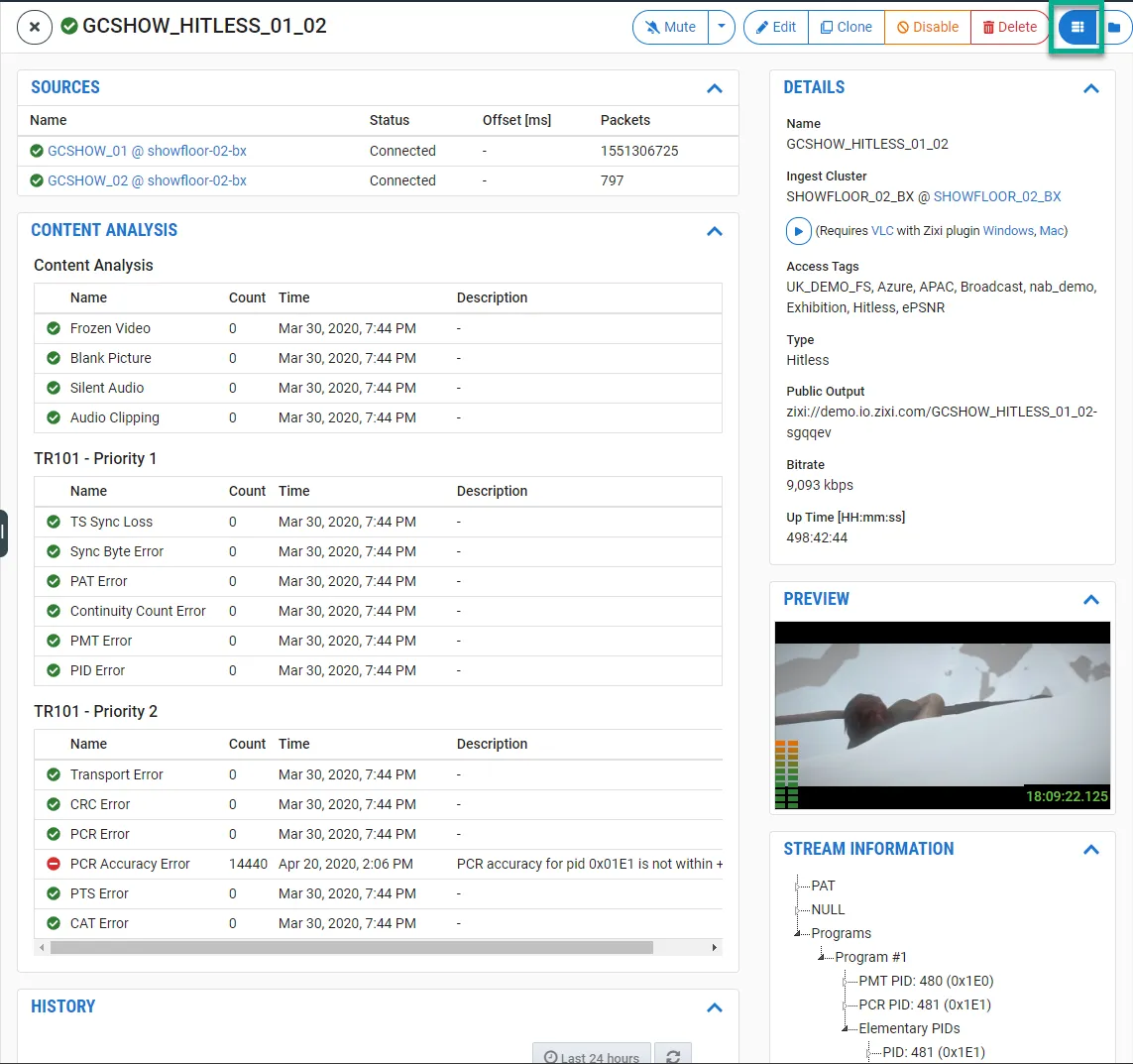

In accordion view, selectable in the top right-hand corner, there are two columns of information panels, if browser width allows. The UI is responsive and the two columns will become a single column on narrow browser windows or mobile devices. Each information panel can be minimized and maximized with the ^ and ⌄  buttons on the top left of the panel. The min/max state of panels remains persistent while viewing other objects of the same type, Sources for instance. It will reset once you view other object types.

Info Pages

Search Filter

Sort

Show/Hide Columns

Batch Processes (multi-select)

Expand/Collapse Tables

Download Quick Report

Working with Lists
