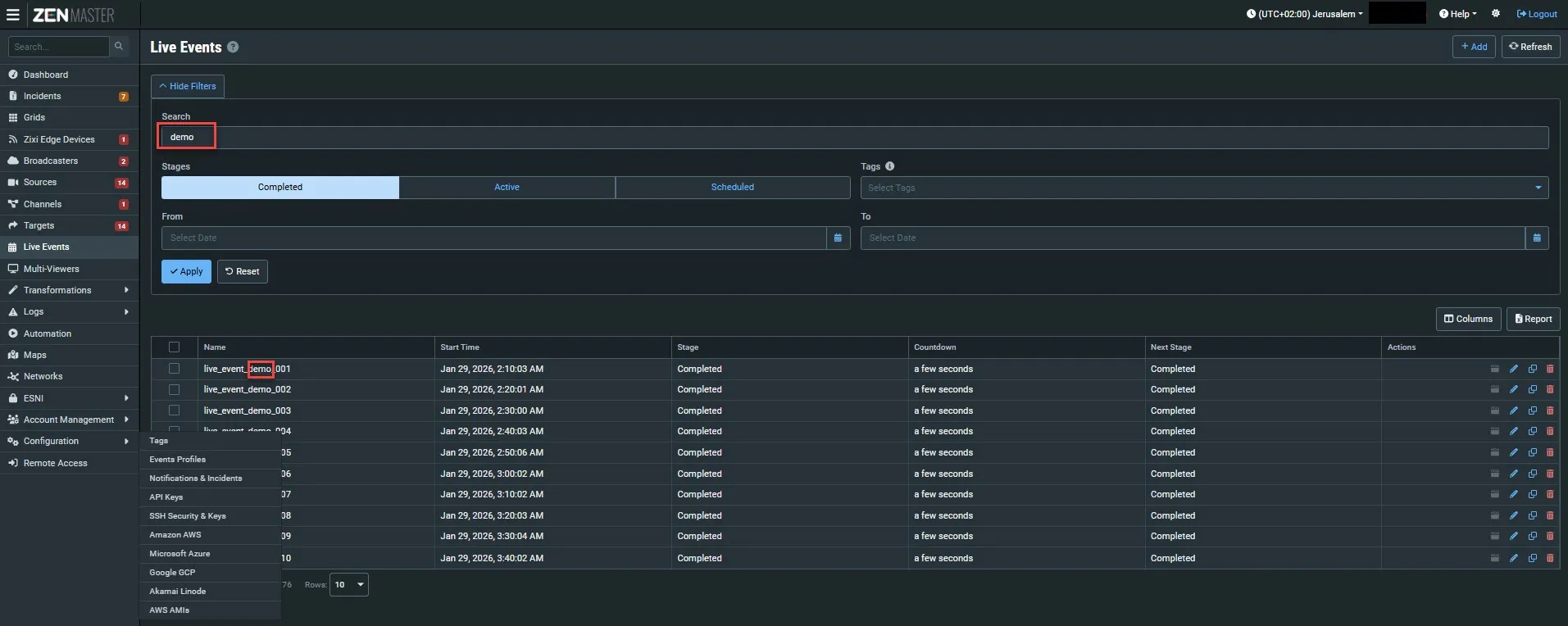

The Search Filter feature shows results that match the search text for any data element on that screen (as opposed to the global site Search at the top of the navigation pane which searches the entire site). This includes the data shown in each column as well as the

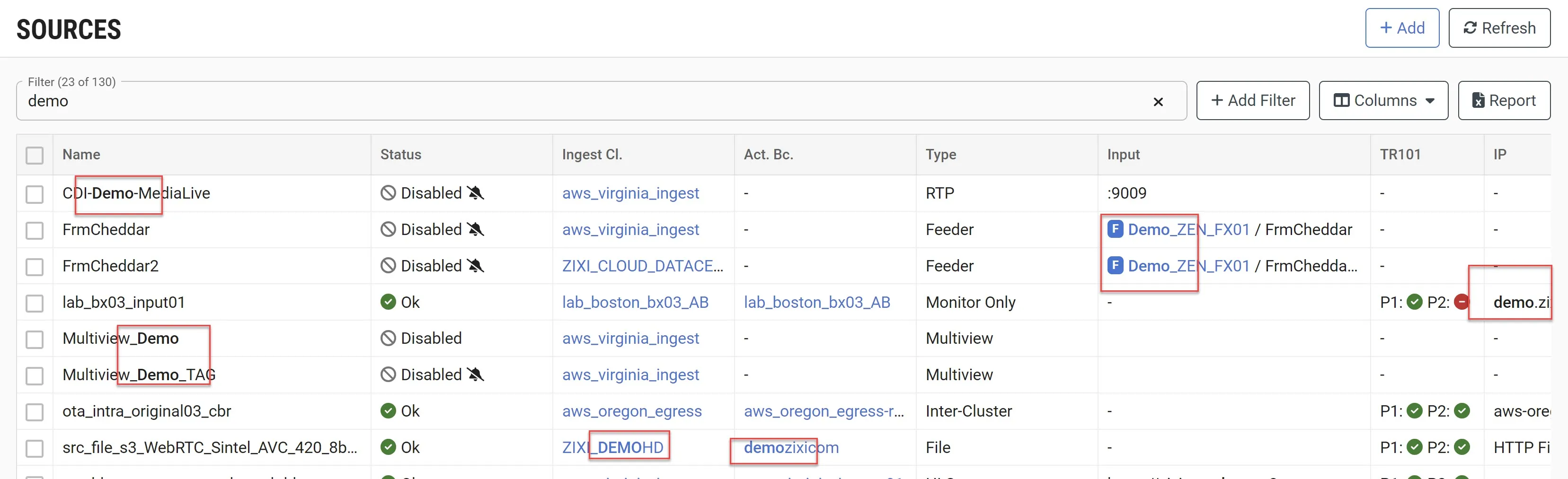

 associated with the element. So, for example, if you enter the search text

 screen, results are shown for Sources that have

 as part of the Source Name, Ingest Cluster, Input etc.

You can use Boolean operators "AND", "OR", and "NOT" and grouping characters "()[]" to create complex search filters.

 be capitalized. When the words "and", "or", and "not" are not capitalized, they are treated as regular search text. Also, the operators must be preceded and followed by a space in order to be recognized as operators.

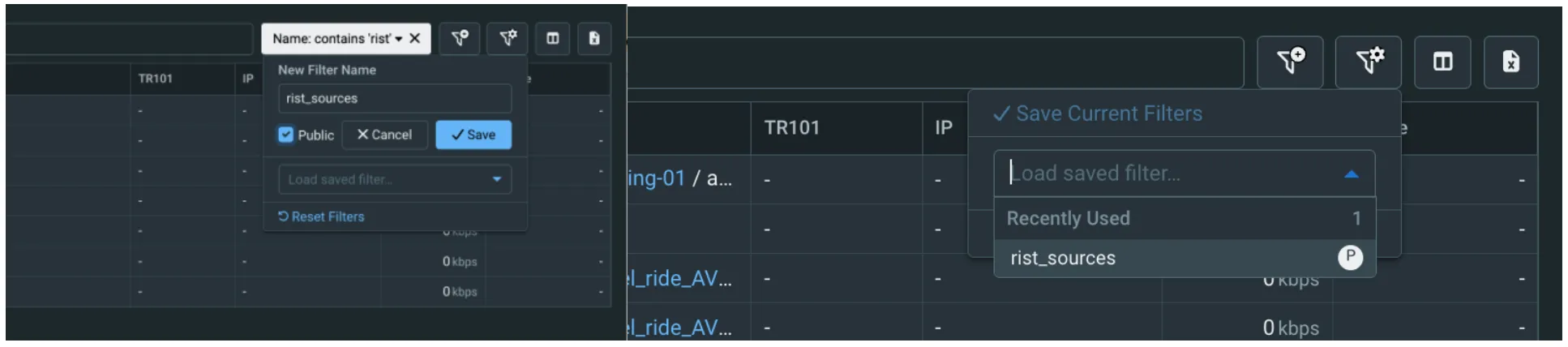

The are preset filters to make filtering easier. You can also save your own filters for either personal or global use ("global" here means across this ZEN Master instance - they are not propagated to other ZEN Master instances).

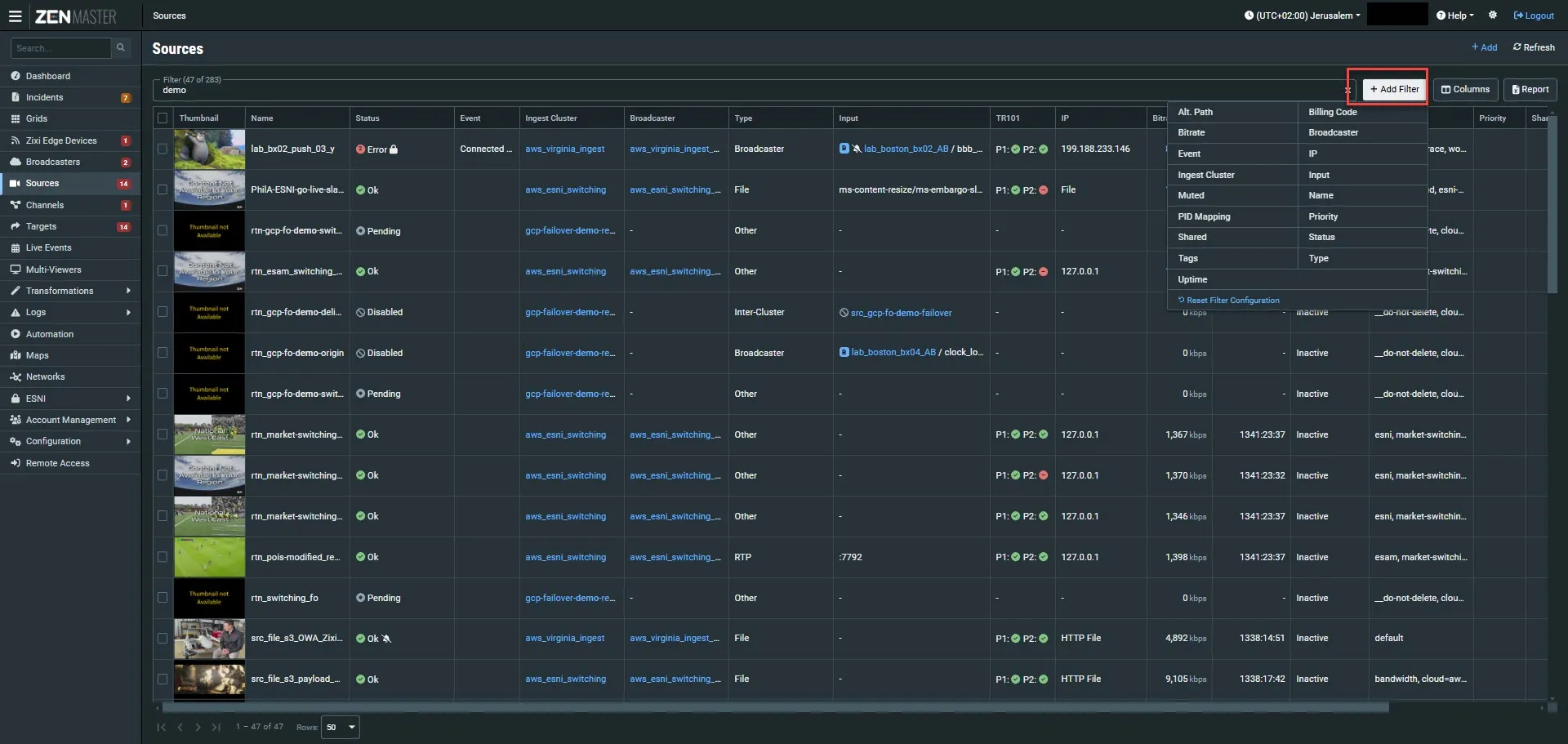

In addition to the search filter, it is possible to use additive column-specific filter options that are specific to the column types of the correspond table. This allows you to set more fine-grained filter parameters such as searching for text in specific columns, filtering with relational operators on numerical columns, or filtering for specifying time ranges etc.
