Adding CDI Targets
2min

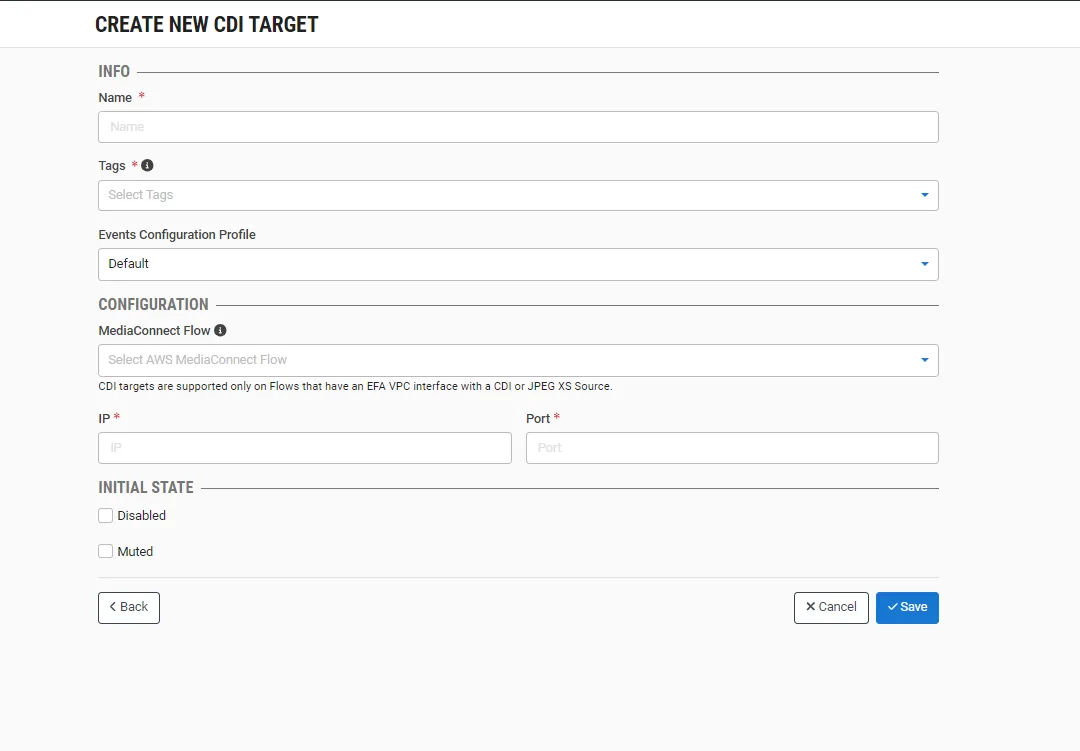

cdi targets are supported only on flows that have an efa vpc interface with a cdi or jpeg xs source you can configure an aws mediaconnect "flow" that has already been set up in your mediaconnect account to be used in the cdi target in zen master in order to use this feature, you must first link zen master to an aws account, see linking an aws account docid\ erygxkcufmmz8bakidjz4 the following procedure describes how to add an cdi target in zen master in addition, an explanation of each of the configuration parameters is given in the table below to add a new cdi target in the main navigation, click targets click + add the create new target window is displayed click on cdi the create new cdi target window is displayed create new cdi target window in the info section, in the name field, enter a logical name for the cdi target in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger under the configuration section, in the aws mediaconnect flow field, select from the drop down list a mediaconnect flow that have an efa vpc interface with a cdi or jpeg xs source in the ip and port fields, specify the connection details to the cdi target in the initial state section, select the disabled checkbox if you would like to disable this target upon initial configuration select the muted checkbox if you would like to disable error/recovery notifications for this target upon initial configuration you can enable/unmute the target at any time click save cdi target configuration parameters table parameter description info name specify a name for the ndi target in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location (optional) the target's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the target's ip enter identifying info for the location (e g street address, zip code, coordinates) and select the desired location from the suggestions that are shown configuration mediaconnect flow select from the drop down list a mediaconnect flow that have an efa vpc interface with a cdi or jpeg xs source ip enter the ip address of the target port enter the port that will be used to connect to the target initial state disabled select this checkbox if you would like to disable this target upon initial configuration muted select this checkbox if you would like to disable error/recovery notifications for this target upon initial configuration
