Adding NDI Targets

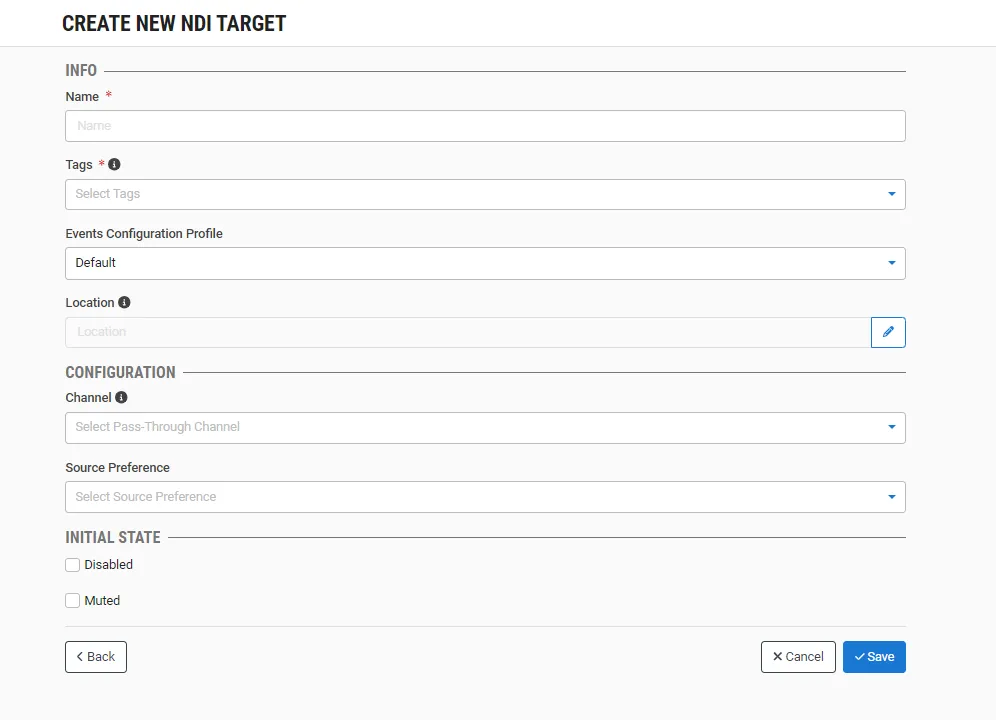

you can enable ndi output on a pass through channel source ndi targets are only supported on v14+ broadcasters ndi targets use only the primary source of a channel the following procedure describes how to add an ndi target in zen master in addition, an explanation of each of the configuration parameters is given in the table below to add a new ndi target in the main navigation, click targets click + add the create new target window is displayed click on ndi the create new ndi target window is displayed create new ndi target window in the info section, in the name field, enter a logical name for the ndi target in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger the target's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the target's ip if you would like to manually set the location of the target (optional), use the following procedure click on the edit icon next to the location field a search box is shown below the location field enter identifying info for the location (e g street address, zip code, coordinates) search results are displayed below the search box as you type click on the desired location the selected location populates the location field in the configuration section, in the channel field, select from the drop down list the channel that will be sent to the target (optional field) the target will only become functional once a channel has been assigned to it however, you can configure the target settings and then add a channel to the target after the initial configuration in the source preference field, select one of the following options any source – the target will establish a connection to any available source in the channel upon any disconnects with the current source, the target will reconnect to another available source in the channel primary sources only – the target will establish and maintain connection to a source designated as primary in the channel upon loss of connection to that source, the target will establish a connection to another available primary source in the channel backup sources only – the target will establish and maintain connection to a source designated as backup in the channel upon loss of connection to that source, the target will establish connection to another available backup source in the channel specific source – select one of the specific sources listed the target will only establish a connection to the selected source and will not try to connect to any other source in the channel it is not possible to select "prefer primary sources" or "prefer backup sources" this means you cannot have a target failover from a primary to a backup source in the channel unless "any source" is selected in the initial state section, select the disabled checkbox if you would like to disable this target upon initial configuration select the muted checkbox if you would like to disable error/recovery notifications for this target upon initial configuration you can enable/unmute the target at any time click save ndi target configuration parameters table parameter description info name specify a name for the ndi target in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location (optional) the target's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the target's ip enter identifying info for the location (e g street address, zip code, coordinates) and select the desired location from the suggestions that are shown configuration channel (optional) select from the drop down list the channel that will be sent to the target note the target will only become functional once a channel has been assigned to it however, you can configure the target settings and then add a channel to the target after the initial configuration source preference select from the drop down list one of the following any source – the target will establish a connection to any available source in the channel upon any disconnects with the current source, the target will reconnect to another available source in the channel primary sources only – the target will establish and maintain connection to a source designated as primary in the channel upon loss of connection to that source, the target will establish a connection to another available primary source in the channel backup sources only – the target will establish and maintain connection to a source designated as backup in the channel upon loss of connection to that source, the target will establish connection to another available backup source in the channel specific source – the target will only establish a connection to the source specified by the user and will not try to connect to any other source in the channel it is not possible to select "prefer primary sources" or "prefer backup sources" this means you cannot have a target failover from a primary to a backup source in the channel unless "any source" is selected initial state disabled select this checkbox if you would like to disable this target upon initial configuration muted select this checkbox if you would like to disable error/recovery notifications for this target upon initial configuration
