Adding a Zixi Source – Feeder

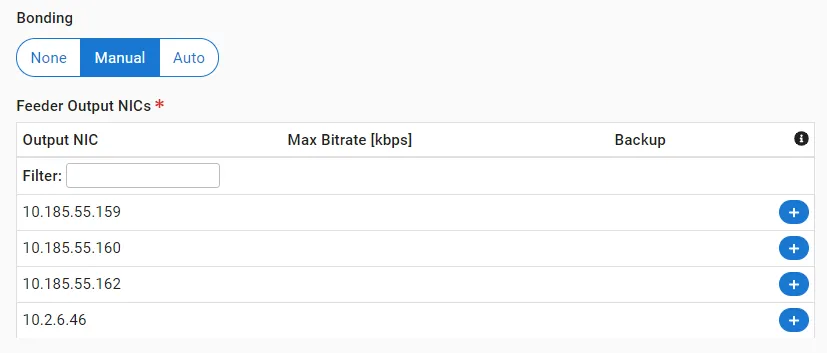

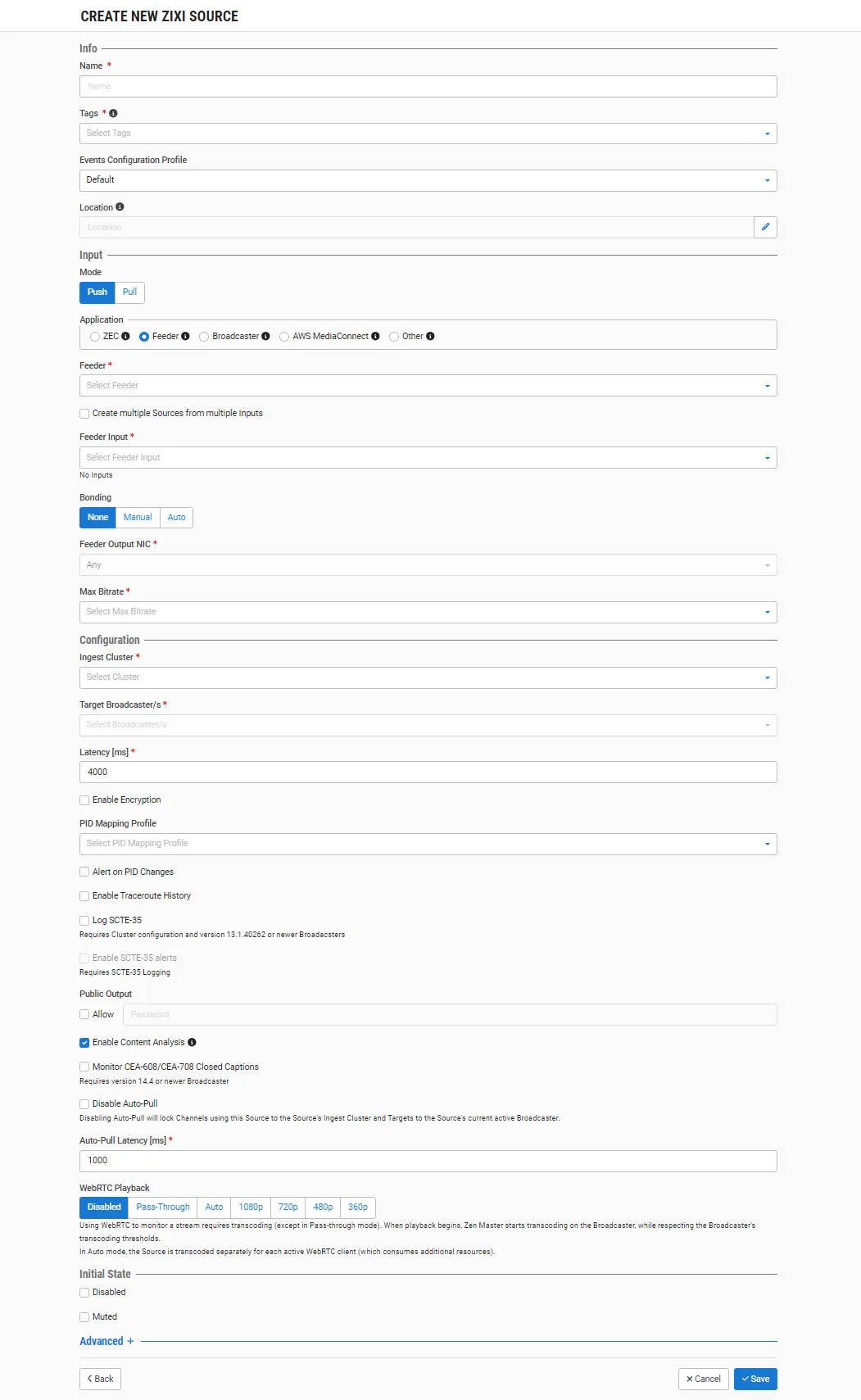

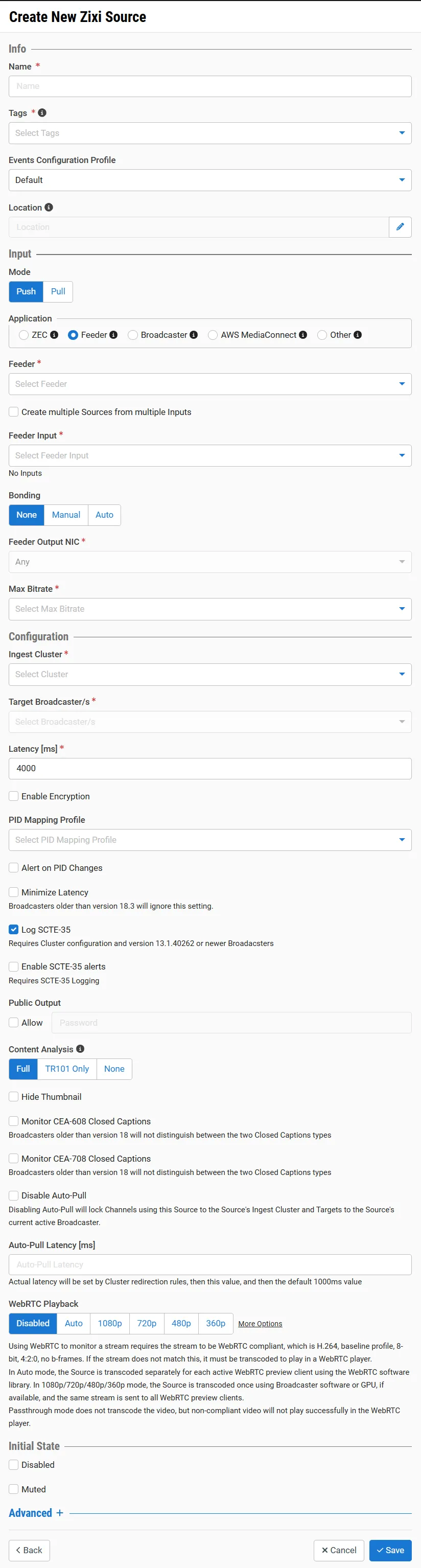

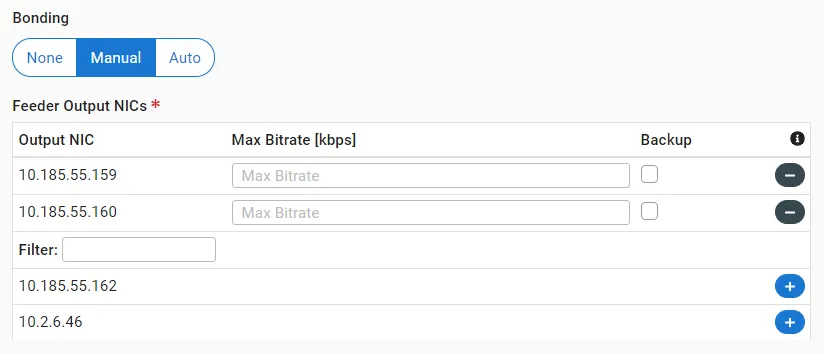

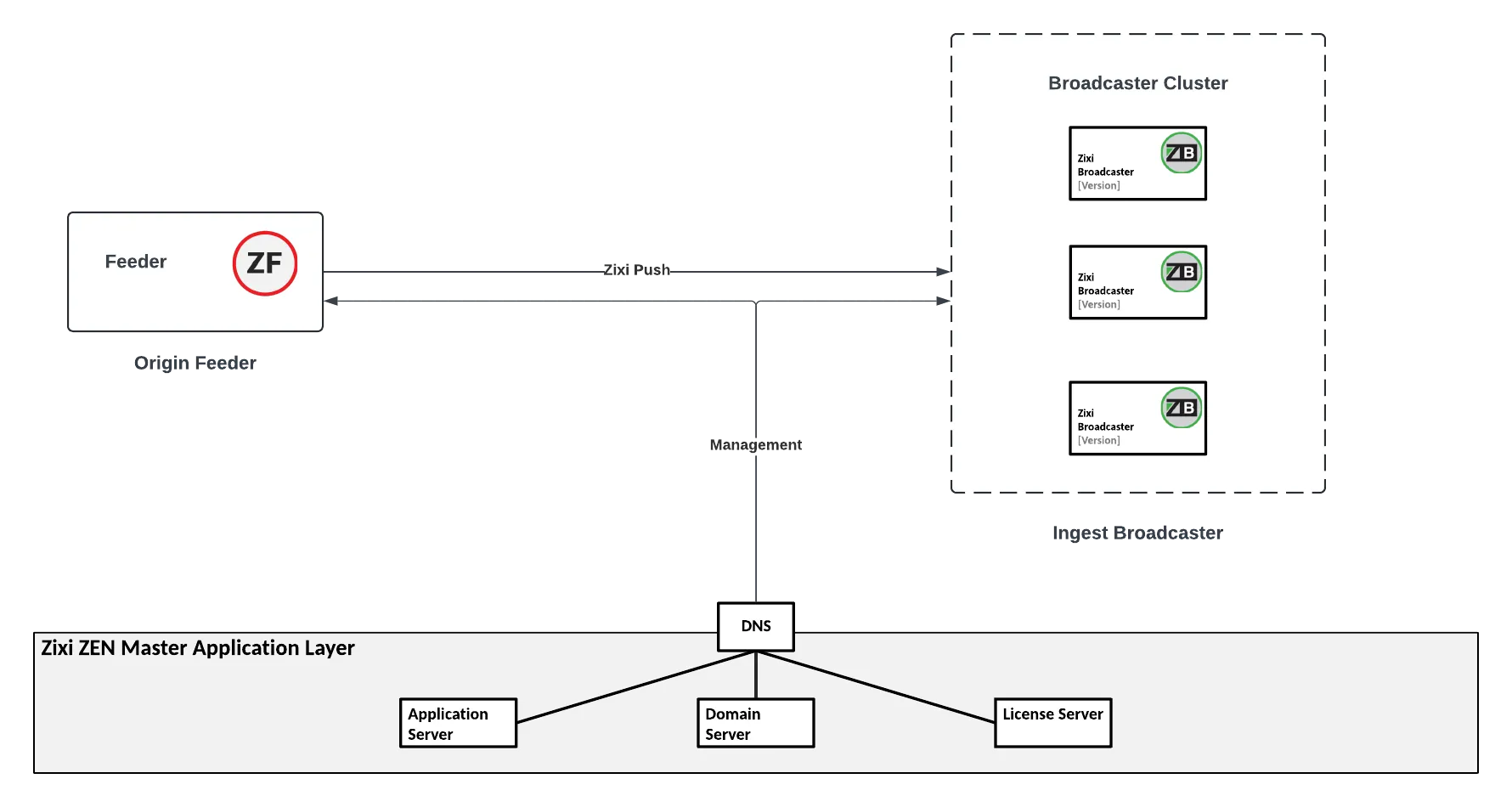

you can add an input from a zixi feeder to a broadcaster cluster to be managed as a source in zen this is done by selecting zixi in the new source menu in this case, the feeder is referred to as the origin feeder which streams to the ingest broadcaster network bonding when configuring a source using a push stream from a zixi feeder to a zixi broadcaster you can apply network bonding to the stream this divides the stream into several network channels using multiple nics and subsequently reunites them at the zixi broadcaster you can specify which nics are used for bonding or you can select automatic to enable zen master to divide the bandwidth evenly among all available nics multiple inputs you can select several inputs from a single feeder to simultaneously create a new source in zen master for each input the following procedure describes how to add a zixi feeder source in zen master in addition, an explanation of each of the configuration parameters is given in the table below to add a zixi source in the main navigation, click sources click + add the create new source window is displayed create source options click on zixi the create zixi source window opens in the info section, in the name field, type a logical name for the zixi source in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger the source's location is used to represent it in the proper position in the map display (see maps) by default, the location is determined automatically based on the source's ip if you would like to manually set the location of the source (optional), use the following procedure click on the edit icon next to the location field a search box is shown below the location field enter identifying info for the location (e g street address, zip code, coordinates) search results are displayed below the search box as you type click on the desired location the selected location populates the location field in the input section, verify under mode that push is selected (default), and under application that the feeder radio button is selected (default) in the feeder field, select from the drop down list one of the available feeders the feeder that will be the origin feeder specify the input/s that will be part of the source coming from the origin feeder if you would like to create a source from a single input, do not select the create multiple sources from multiple inputs checkbox, and in the feeder input field, select from the drop down list the desired input if you would like to create sources from multiple inputs, use the following procedure select the create multiple sources from multiple inputs checkbox when you select this option, each input that is selected creates a separate source in zen master each source is named independently in the feeder inputs section and the name field in the info section is disabled you can create up to 25 sources at once in the feeder inputs field select from the list one or more inputs by clicking the + button for the desired input selected inputs are shown above the filter box (you can remove an input by clicking the button for that input) for each input that is selected you can adjust the following parameters in the name field, edit the name of the source default the name of the input on the feeder in the max bitrate field, select from the drop down list the maximum bitrate for this source make sure that the value is greater than the max bitrate for the source the default is set automatically based on the current bitrate of the source make sure that the value is greater than the max bitrate of the input the default is set automatically based on the current bitrate of the input if you would like the source configured in zen master to replace (i e stop) any current outputs configured on the feeder, select the replace existing manual outputs in the bonding section, select the radio button for the desired bonding mode options are none (default) – no bonding manual – you specify which nics are used for bonding auto – all available nics are used for bonding if you selected auto, proceed to step 14 if you selected manual proceed to step 13 if you selected none then continue with the following step if you selected none for bonding, then in the feeder output nic field, if you would like to specify which nic is used, then select the ip of that nic from the drop down list by default, any is selected proceed to step 14 if you selected manual for bonding , then in the feeder output nic field, use the following procedure to specify which nics are used select two or more nics by clicking the + button for each of the desired nics selected nics are shown above the filter box (you can remove a nic by clicking the button for that nic) for each selected nic, you can adjust the following parameters in the max bitrate field, enter the maximum bitrate to be used on this nic if you want to use this nic only when there isn’t sufficient bandwidth available on the other nics, then select the backup checkbox if the backup checkbox is not selected then this nic is used in parallel with the other selected nics in the configuration section, in the ingest cluster field, select from the drop down list one of the available ingest clusters as the destination for the source in the target broadcaster /s field, specify which broadcaster/s within the cluster on which zen master can deploy the source either select a specific broadcaster to be used or specify your preference for using primary vs backup broadcasters, options are prefer primary broadcasters , primary broadcasters only , backup broadcasters only or prefer backup broadcasters for managed clusters, it is not recommended to select a specific broadcaster, as the broadcaster’s availability may not remain stable in the latency \[ms] field, select the latency time for the stream (default 4000) if you would like to enable the zixi auto encryption feature for encrypting the source stream, select the enable encryption checkbox if you would like to set a password to authenticate the stream from the feeder, in the source password field, enter the password or generate a random password by clicking on random you need to configure the identical password (case sensitive) on the feeder if you would like to apply a pid mapping profile to this source, then in the pid mapping profile field, select the desired profile from the dropdown list using this method creates a single source in zen master with pid mapping applied if you would like to maintain a source with the original pids and create an additional source with pid mapping (e g if you want to create several different pid mapped variations), then use the method described in docid\ gockl3upsd8v14ia2an6g to create a new pid mapping profile, see docid\ ofvpymhyvq4xqhii3umns if you would like to generate email notifications whenever a pid change is detected, select the alert on pid changes checkbox select the log scte 35 checkbox if you would like to log scte 35 markers for this stream to log scte 35 markers, scte 35 needs to be enabled both on the ingest cluster and on the source configuration scte 35 logging is only available for v13 1 40262+ broadcasters if log scte 35 was selected, you can choose to receive alerts for scte 35 markers by selecting the enable scte 35 alerts checkbox in the public output field, if you would like to allow access to the stream directly through a supported player, select the allow checkbox if you selected the allow checkbox, then enter a password in the password field to authenticate access to the stream under content analysis select one of the following options full select this option if you would like to enable full content analysis (cqa), including analysis of the stream's audio and video content, including audio levels, audio silence detection, frozen video detection, and more tr101 only select this option to perform tr101 analysis only (without video and audio content analysis) the analysis can be used to check the integrity of the ts and the most important elements of the stream the analysis includes priority 1 and 2 to learn more about tr101 analysis see https //www etsi org/deliver/etsi tr/101200 101299/101290/01 03 01 60/tr 101290v010301p pdf technical report none no content analysis is enabled it is generally recommended to enable full content analysis unless it is causing technical problems if content analysis is disabled, the system won't detect errors in the video and audio content of the stream and won't generate warnings for such events if you would like to monitor cea 608/cea 708 closed captions, select the monitor cea 608/cea 708 checkbox monitoring cea 608/cea 708 closed captions requires using a version 14 4 or newer broadcaster if you would like to disable auto pull, select the disable auto pull checkbox disabling auto pull will lock channels using this source to the source's ingest cluster and targets to the source's current active broadcaster this setting only applies to pass through channels if auto pull is enabled, in the auto pull latency \[ms] field, specify the maximum latency for auto pull actions the broadcaster will update the latency as required, by using the maximal defined latency and then reducing the latency gradually (default 1000 ms) in the webrtc playback section, select the desired playback method webrtc enables you to monitor the stream via web browsers and mobile applications with real time communication (rtc) webrtc needs to be activated independently for each source in zen master (by default it is disabled) select one of the following options disabled users will not be able to view this source using webrtc (default) pass through passes the stream through to webrtc without transcoding this option can only be used if the input stream is already in a webrtc compliant format (video h 264 codec with baseline or main profile and no b frames, audio opus codec) auto zen master automatically transcodes the stream using the optimal profile for each specific user in this option zixi broadcaster will decode the video, transforming it into raw frames, which will be passed to the webrtc library, where it will be re encoded for each individual user best quality however, if monitored by multiple users this can consume extensive resources 1080p/720p/480p/360p zen master transcodes the stream to a webrtc compliant profile with the specified resolution the transcoding is done by zixi broadcaster's transcoder this method requires a zixi broadcaster with x264 or nvidia for transcoding this method allows many users to monitor the stream without encoding separately for each individual user, which saves cpu capacity since there is only one stream version, it is recommended to encode to a low resolution and low bitrate so that the stream will be viewable by all users monitoring the stream in the initial state section, select the disabled checkbox if you would like to disable this source upon initial configuration select the muted checkbox if you would like to disable error/recovery notifications for this source upon initial configuration you can enable/unmute the source at any time if you would like to adjust the advanced settings, click advanced the advanced settings fields are displayed if you would like to track usage for this source, enter your billing code details see docid\ lalxj n928tegcpdpbirj note that billing codes are not supported for push sources until broadcaster v19+ in the auto pull mtu field, specify the maximum transmission unit (largest data packet that a network connected device will accept) in bytes for the auto pull to set the detection of frozen video, in the frozen video minimal duration field, specify the default minimal duration in seconds of frozen video after which the broadcaster will trigger a frozen video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher to set the detection of blank video, in the blank video minimal duration field, specify the default minimal duration in seconds of blank video after which the broadcaster will trigger a blank video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher click save parameters table parameter description info name specify a name for the zixi source in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting an tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location (optional) the source's location is used to represent it in the proper position in the map display (see docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the source's ip enter identifying info for the location (e g street address, zip code, coordinates) and select the desired location from the suggestions that are shown input mode to create a zixi feeder source, verify that push is selected (default) application to create a zixi feeder source, verify that the feeder radio button is selected (default) feeder select from the drop down list the desired feeder create multiple sources from multiple inputs if you would like to create sources from multiple inputs, select this checkbox when you select this option, each input that is selected creates a separate source in zen master each source is named independently in the feeder inputs section and the name field in the info section is disabled note you can create up to 25 sources at once feeder input/s select from the list one or more of the inputs that are available on the selected feeder for multiple inputs, click on the + (plus) button for each of the desired inputs selected inputs are shown above the filter box (you can remove an input by clicking the (minus) button for that input) for each input that is selected you can adjust the following parameters in the name field, edit the name of the source default the name of the input on the feeder in the max bitrate field, select from the drop down list the maximum bitrate for this source make sure that the value is greater than the max bitrate of the input the default is set automatically based on the current bitrate of the input replace existing manual outputs if you would like the source configured in zen master to replace (i e stop) any current outputs configured on the feeder, select this checkbox bonding select the desired bonding mode options are none (default) – no bonding manual – you specify which nics are used for bonding auto – all available nics are used for bonding feeder output nic/s (for none and manual bonding) if you would like to specify which nic is used, then select the ip of that nic from the drop down list by default, any is selected if you selected manual for bonding , then click the + (plus) button for each of the nics that you would like to use selected nics are shown above the filter box (you can remove a nic by clicking the (minus) button for that nic) for each selected nic, you can adjust the following parameters in the max bitrate field, enter the maximum bitrate to be used on this nic if you want to use this nic only when there isn’t sufficient bandwidth available on the other nics, then select the backup checkbox if the backup checkbox is not selected then this nic is used in parallel with the other selected nics configuration ingest cluster select from the drop down list one of the available ingest clusters as the destination for the source target broadcaster/s specify which broadcaster/s within the cluster on which zen master can deploy the source either select a specific broadcaster to be used or specify your preference for using primary vs backup broadcasters options are prefer primary broadcasters, primary broadcasters only, backup broadcasters only or prefer backup broadcasters note for managed clusters, it is not recommended to select a specific broadcaster, as the broadcaster’s availability may not remain stable latency \[ms] select the latency time for the stream (default 4000) enable encryption if you would like to enable the zixi auto encryption feature for encrypting the source stream, select this checkbox password (optional) if you would like to set a password to authenticate the stream from the feeder, enter the password or generate a random password by clicking on random you need to enter the identical password on the feeder pid mapping profile (optional) if you would like to apply a pid mapping profile to this source, then select the desired profile from the dropdown list to create a new pid mapping profile, see docid\ gftcayurpl7dinouyd14z note using this method creates a single source in zen master with pid mapping applied if you would like to maintain a source with the original pids and create an additional source with pid mapping (e g if you want to create several different pid mapped variations), then use the method described in docid\ gockl3upsd8v14ia2an6g alert on pid changes if you would like to generate email notifications whenever a pid change is detected, select this checkbox minimize latency if enabled, zixi adjusts the latency dynamically to optimize it for network conditions log scte 35 select this checkbox if you would like to log scte 35 markers for this stream note to log scte 35 markers, scte 35 needs to be enabled both on the ingest cluster and in the source configuration note scte 35 logging is only available for v13 1 40262+ broadcasters enable scte 35 alerts (for log scte 35) if you would like to receive alerts for scte 35 markers, select this checkbox public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox password (for public output) if you selected allow in the public output field, specify a password in this field to authenticate access to the stream content analysis select one of the following options full select this option if you would like to enable full content analysis (cqa), including analysis of the stream's audio and video content, including audio levels, audio silence detection, frozen video detection, and more tr101 only select this option to perform tr101 analysis only (without video and audio content analysis) the analysis can be used to check the integrity of the ts and the most important elements of the stream the analysis includes priority 1 and 2 to learn more about tr101 analysis see tr 101 290 technical report none no content analysis is enabled note it is generally recommended to enable full content analysis unless it is causing technical problems if content analysis is disabled, the system won't detect errors in the video and audio content of the stream and won't generate warnings for such events monitor cea 608/cea 708 closed captions if you would like to monitor cea 608/cea 708 closed captions, select this checkbox note monitoring cea 608/cea 708 closed captions requires using a version 14 4 or newer broadcaster disable auto pull if you would like to disable auto pull, select this checkbox note disabling auto pull will lock channels using this source to the source's ingest cluster and targets to the source's current active broadcaster this setting only applies to pass through channels auto pull latency \[ms] specify the maximum latency for auto pull actions the broadcaster will update the latency as required, by using the maximal defined latency and then reducing the latency gradually (default 1000 ms) webrtc playback	 select the desired playback method note webrtc enables you to monitor the stream via web browsers and mobile applications with real time communication (rtc) webrtc needs to be activated independently for each source in zen master (by default it is disabled) select one of the following options disabled users will not be able to view this source using webrtc (default) pass through passes the stream through to webrtc without transcoding this option can only be used if the input stream is already in a webrtc compliant format (video h 264 codec with baseline or main profile and no b frames, audio opus codec) auto zen master automatically transcodes the stream using the optimal profile for each specific user in this option zixi broadcaster will decode the video, transforming it into raw frames, which will be passed to the webrtc library, where it will be re encoded for each individual user note best quality however, if monitored by multiple users this can consume extensive resources 1080p/720p/480p/360p zen master transcodes the stream to a webrtc compliant profile with the specified resolution the transcoding is done by zixi broadcaster's transcoder note this method requires a zixi broadcaster with x264 or nvidia for transcoding this method allows many users to monitor the stream without encoding separately for each individual user, which saves cpu capacity since there is only one stream resolution, it is recommended to encode to a low resolution and low bitrate so that the stream will be viewable by all users monitoring the stream initial state disabled select this checkbox if you would like to disable this source upon initial configuration muted select this checkbox if you would like to disable error/recovery notifications for this source upon initial configuration advanced billing codes	 if you would like to track usage for this source, enter your billing code details, see docid\ lalxj n928tegcpdpbirj (supported for broadcasters v14 8+) note that billing codes are not supported for push sources until broadcaster v19+ billing passwords enter the password that corresponds to this billing code validate billing code check to make sure the billing code exists auto pull billing code if you would like to track usage for this source when using auto pull connections, enter the billing code that corresponds to this stream the relevant billing can be obtained from the organization that received the billing code from zixi auto pull billing password enter the password that corresponds to this auto pull billing code auto pull mtu {bytes} specify the maximum transmission unit (largest data packet that a network connected device will accept) in bytes for the auto pull traffic shaping traffic shaping is a network management technique used to control and optimize the flow of data it ensures a smooth streaming experience by prioritizing video traffic and managing bandwidth usage set at 0 (default) for no traffic shaping, or 1 for automatic traffic shaping note this option is only for sources for zixi broadcaster 18 2 or later frozen video minimal duration {seconds} specify the default minimal duration in seconds of frozen video after which the broadcaster will trigger a frozen video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher for existing sources, you may need to restart the source blank video minimal duration {seconds} specify the default minimal duration in seconds of blank video after which the broadcaster will trigger a blank video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher for existing sources, you may need to restart the source ignore monitoring pids ignore pids with empty audio streams to prevent false warnings enter a comma delimited list of pid numbers that should not be monitored for null content
