In the situation that you need to remove PID's you can do this using a PID Mapping Profile.

You may need to do this in the case that there are unused PID's causing CC errors, targets have requested specific PIDs removed.

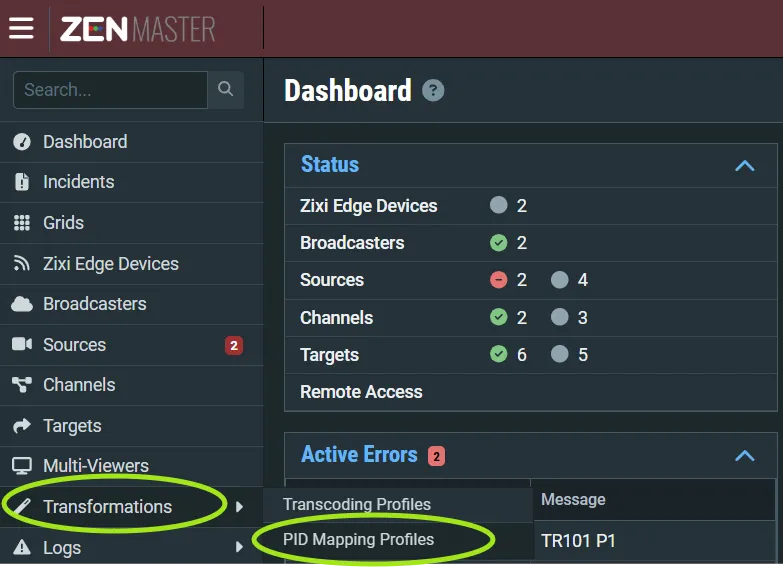

In the Menu in ZEN Master go to "Transformations" > PID Mapping Profiles

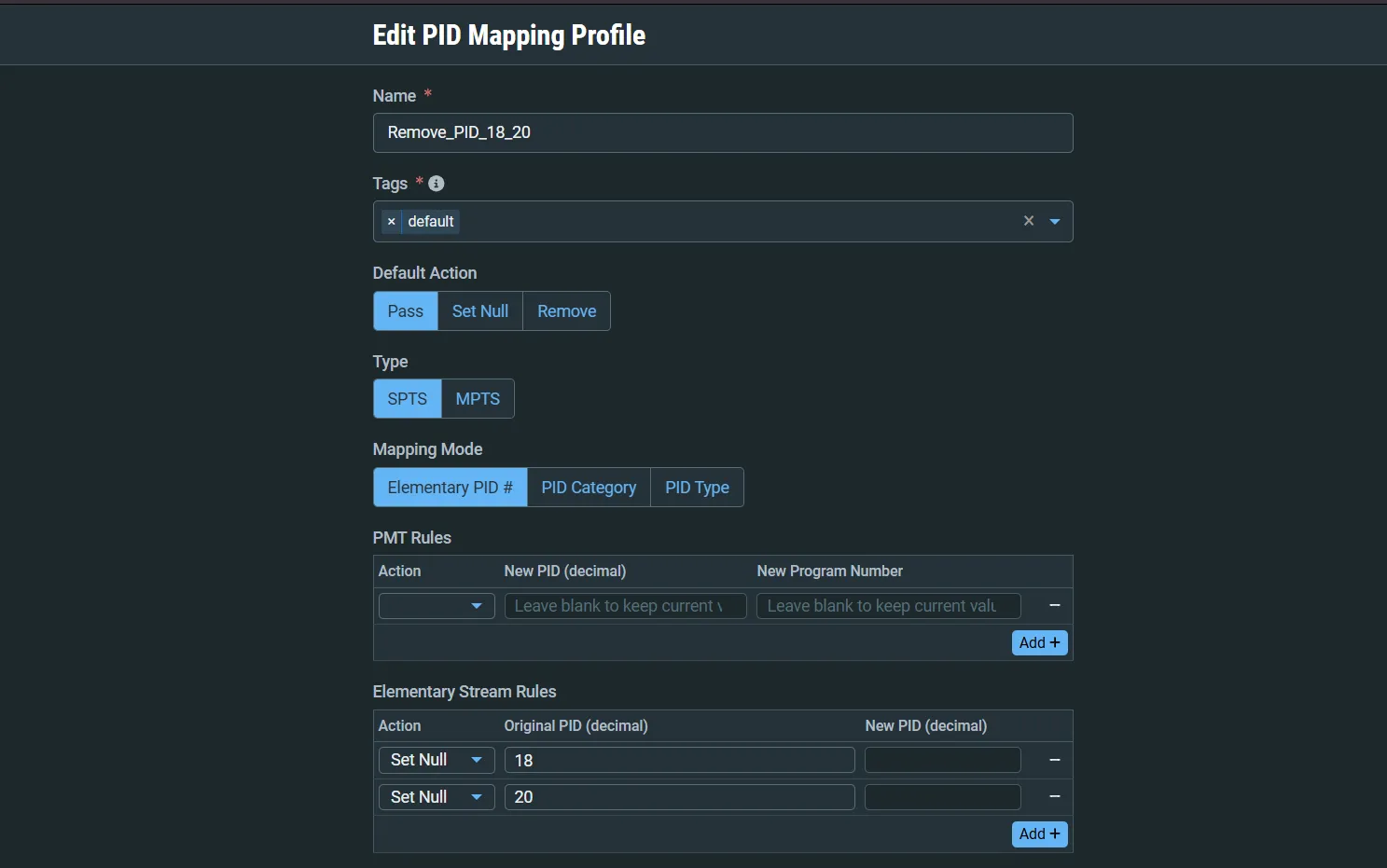

Click Add+ to create a new PID Mapping Profile

You can choose to Pass, Set Null or Remove the PID data

Select type either SPTS (Single Program Transport Stream) or MPTS (Multiple Program Transport Stream).

For CBR (Constant Bitrate) feeds use "Set Null" to maintain PCR accuracy

For VBR (Variable Bitrate) feeds use "Remove" as VBR feeds do not contain NULL packets and do not measure PCR accuracy

For editing/removal of PIDs 17-20 please ensure your Broadcaster is Version 18.4 or above.
