Broadcaster Outputs

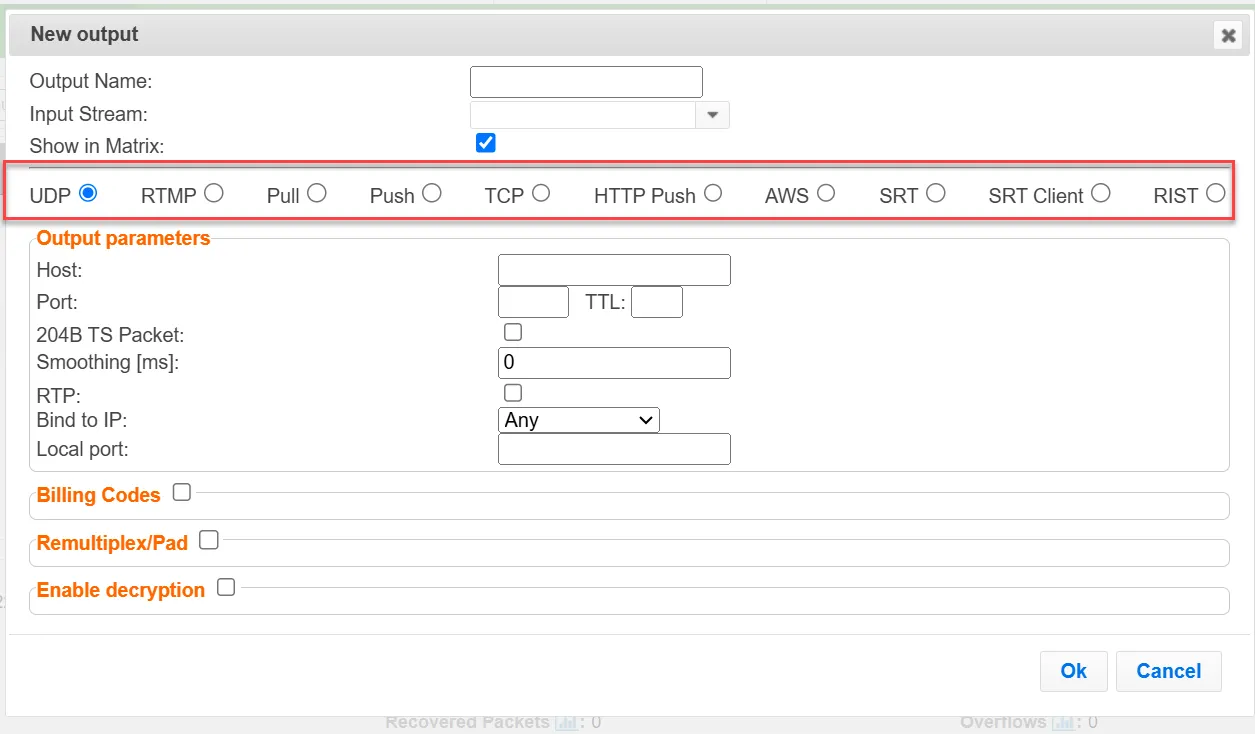

zixi broadcaster supports the following output types new output dialog udp – target is a udp or rtp stream, over unicast or multicast rtmp – real time messaging protocol streams can be played on systems that accept this protocol as input originally designed to enable adobe® flash® streams to be sent between a server and a client, rtmp has become a popular protocol for streaming into content delivery networks (cdns) rtmps rtmp over a tls/ssl connection pull stream – pull streams are zixi protocol streams destined for zixi receivers zixi broadcaster can offer status and statistics for a stream that is being pulled from it by another device you normally do not need to set up a pull output stream in zixi broadcaster if your application uses zixi receiver, you should configure the stream as input on zixi receiver and point it to the ip address and output port (default 2077) of the zixi broadcaster zixi receiver will pull the stream and automatically create the proper output definition in the zixi broadcaster push stream – push streams are zixi protocol streams destined for other zixi broadcasters and “accept mode” zixi receivers tcp tcp protocol provides reliable transmission guarantee for no loss of frame its bandwidth probing and congestion control will attempt to use all of the available bandwidth between the server and client, fetching content as quickly as possible while being friendly to other (tcp) traffic on the same links the tcp output can push the stream directly to a tcp socket or to an http server http push the http push output stream can be encapsulated in hls or dash the source of the output stream is a predefined adaptive group that has been configured in the adaptive groups docid\ s q ez1casvsymo9bb2y5 screen the configuration of the stream includes the option to delete outdated stream fragments on the server output streams can be pushed to one zixi broadcasters or zixi receiver aws the http output stream, which is encapsulated in hls or dash/fmp4 hls can be pushed to either an aws s3 bucket or to an aws elemental mediastore the native aws support includes the ability to configure the s3 authentication credential, including the region, access key, and secret key srt – the srt output can be pulled to/from an srt enabled device and is configured via zen master or zixi api only srt stands for ‘secure reliable transport’ and is an open source video transport protocol and technology stack srt uses secure streams and easy firewall traversal to optimize streaming performance and deliver high quality video over even the most unreliable networks srt client – the srt client output can be pushed to an srt enabled device and is configured via zen master or zixi api only srt stands for ‘secure reliable transport’ and is an open source video transport protocol and technology stack srt uses secure streams and easy firewall traversal to optimize streaming performance and deliver high quality video over even the most unreliable networks rist – the rist output can be pushed or have them pulled to/from a rist enabled device rist seeks to provide reliable, high performance media transport by using udp at the transport layer to avoid the inefficiencies of tcp, then layering on top forward error correction and retransmits to add the reliability inherently absent from udp when zec pulls a stream, a pull stream definition is generated automatically in zixi broadcaster, the stream is identified in the name and destination columns of zixi broadcaster with the id and ip address of the zixi receiver that pulls the stream automated output configuration with output templates instead of manually creating an output and then connecting the output to an input, you can define output templates with rules for automatic creation of outputs with predefined settings the template includes an input pattern when an input pattern matches the pattern of an incoming input stream, the output is created automatically for more information about output templates, see using output templates docid\ rpdg9li49ud8dw4m1ezrm adding outputs docid\ gli2hfxmiqyhcsfv8mxbw viewing existing outputs docid\ cxkhr5slwh2xezt2zbobt searching for output streams docid\ jxgrotdqaispdjnnh8i8a performing actions on output streams docid\ by9ggp0g3rf0buwvxmtjc performing actions on multiple outputs docid\ bfoz4rrnrfksf zwt 8qq using output templates docid\ rpdg9li49ud8dw4m1ezrm broadcaster network bonding docid 3fxuwfgezkmah0ubh5gjd
