Working with Graphs

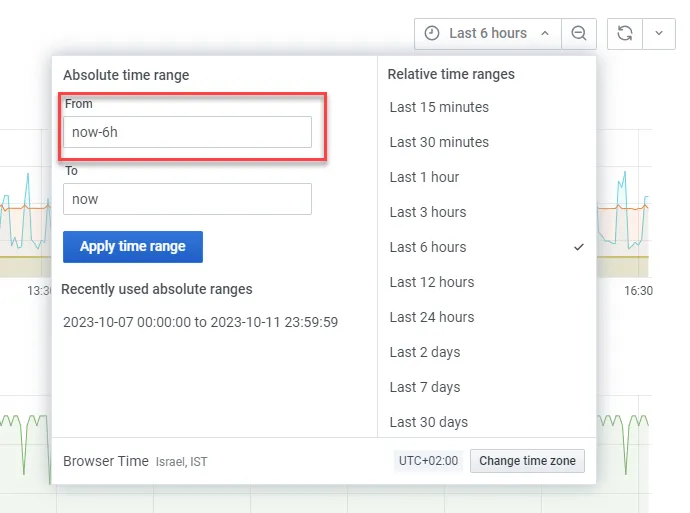

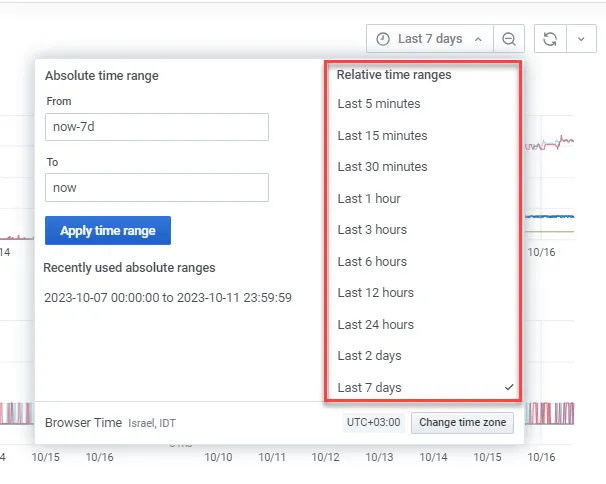

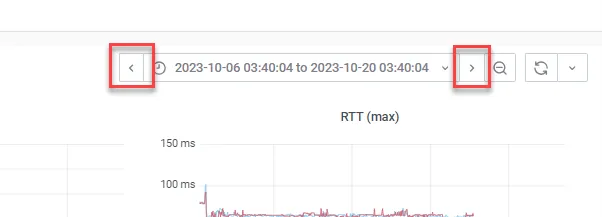

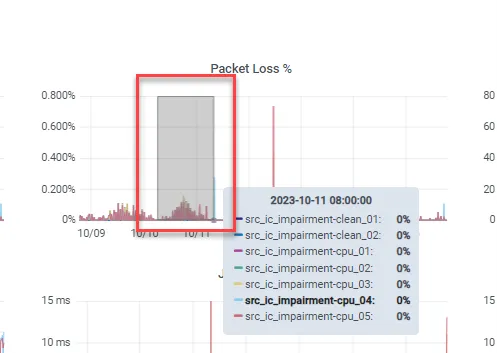

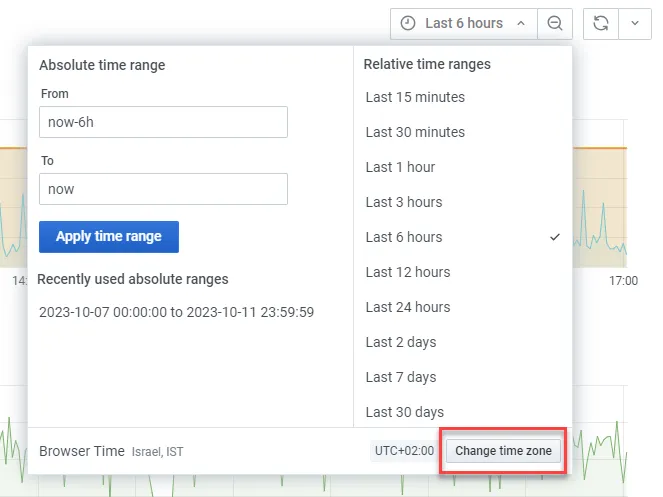

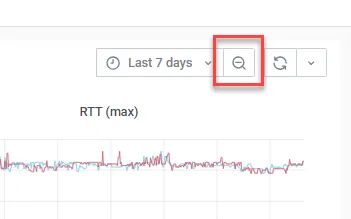

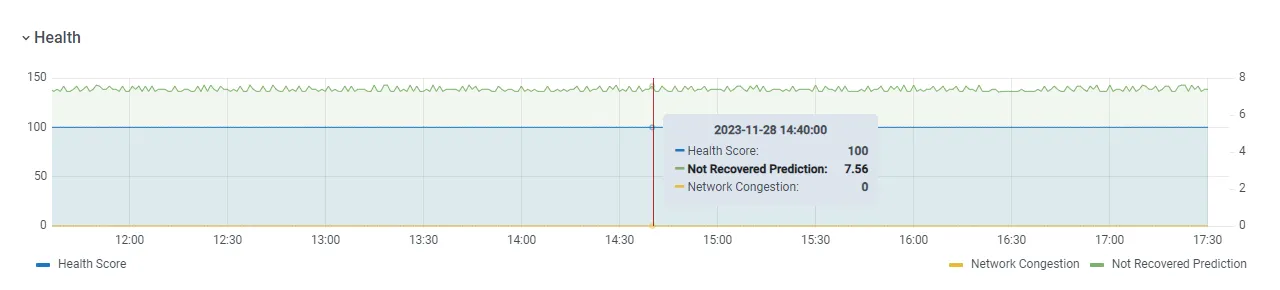

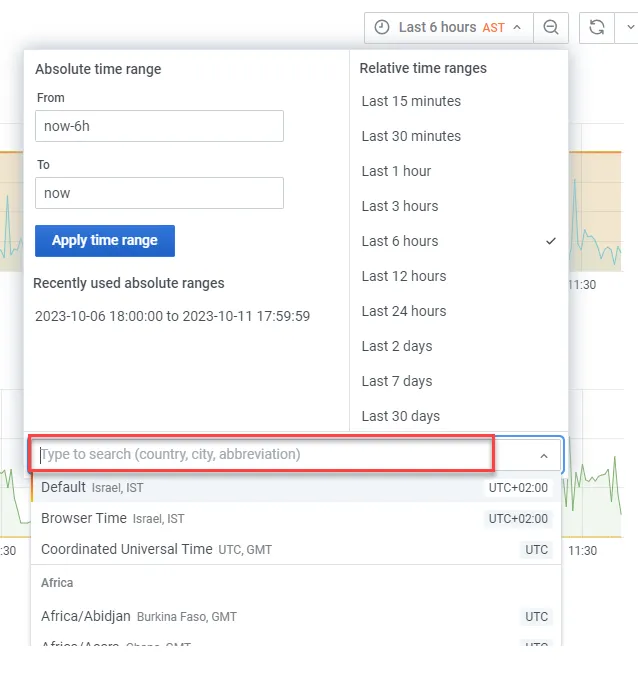

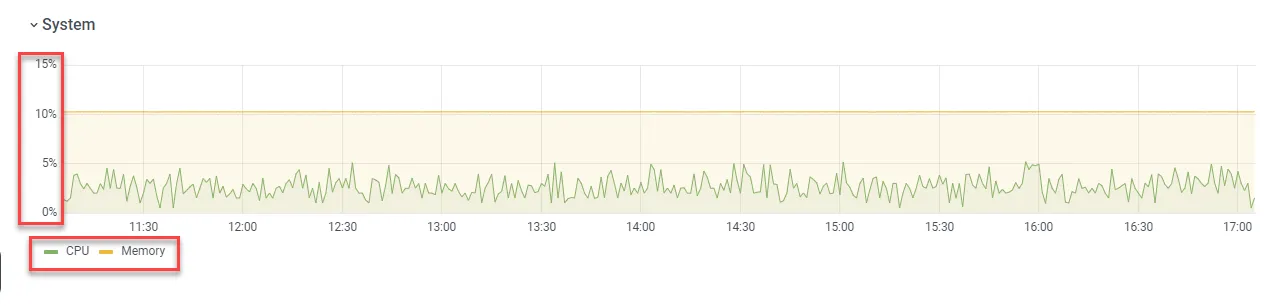

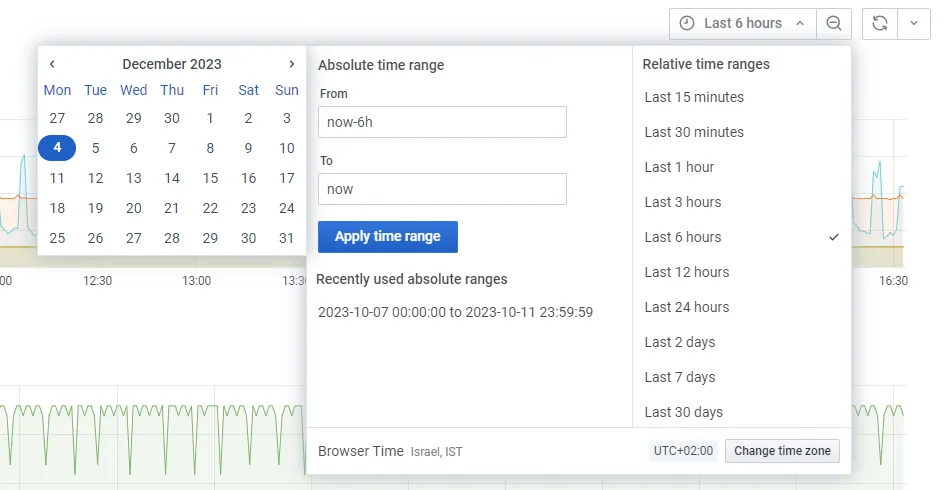

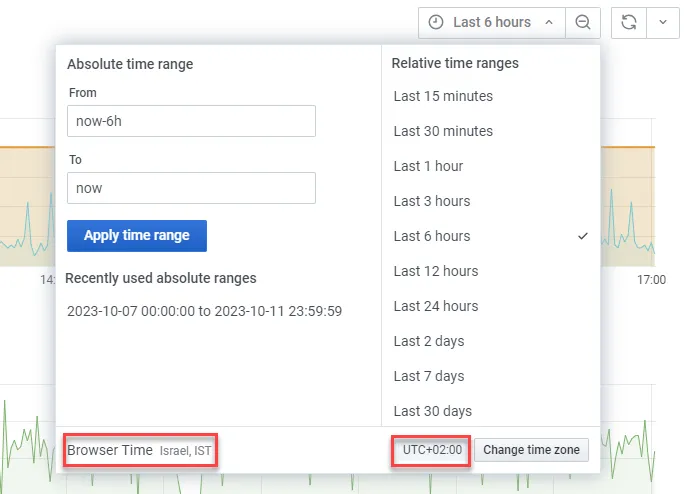

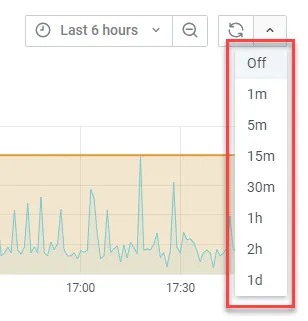

zen master features a wide variety of graphs that allow you to monitor the resources, objects, and networks over time in most cases, the data is gathered from the underlying resource/object (e g , broadcaster, zec, etc ) and displayed in the relevant graph format and units/scales understanding the legends most graphs display multiple measurements in a single graph to provide multiple perspectives and help in the troubleshooting process each measurement and its related color appears in the legend, which is located underneath the corresponding y axis the y axis adjusts to accommodate the min and max values of the entire displayed graph, expanding or contracting to show as much detail as possible for the given range for example, the following graph measures the cpu (green) and memory (yellow) utilization both legends are located underneath the y axis on the left as they share the same unit scale, which in this case is the percentage the x axis refers to the timescale of the graph, with the right hand edge being the current point in time, left of which the data progresses further into the past sample graph viewing the measurement details to view the exact measurement details of a graph at any point in time, hover your mouse over the graph at the desired point in time getting details for point on the graph changing the time range there are multiple ways to change the timescale displayed on the graph entering an absolute time range selecting a relative time range navigating back/forward across the time range zooming in to a selected range zooming out changing the time range by entering an absolute time range to change the time range by entering an absolute time range click the time range field under the absolute time range section click the from field or enter an exact date and time in the following format – yyyy mm dd hh select the beginning of the time range, by double clicking the desired day in the calendar optionally edit the time in the following format hh\ mm click the to field and repeat the process click apply time range the graphs will be updated with graphs from the selected time range selecting a relative time range to select a relative time range click the time range field under the relative time range section, click on one of the relative time ranges from the list the graphs will be updated with graphs from the selected time range navigating back/forth across the time range to navigate back and forth in time click the time range zoom out button click the right/left arrow to move forward/backward in time at the same time interval as the selected time range zooming in to a selected range to focus on a specific time range within the graph, select the time range using your mouse the graph displays the selected time range and the specific time range is displayed in the time range filter zooming out to zoom out in the time range, click the time range zoom out button changing the time zone by default, the graph uses your browser’s local time zone, however it is possible to change the timezone the time zone is indicated in the browser time field to change the timezone click the time range field click change time zone select the relevant timezone from the drop down list you can search it by typing the name of the country, city, or the timezone abbreviation refreshing the graph the data presented in the graphs does not refresh on its own (i e , it displays data up to the moment the graph has been displayed) it is possible to refresh the data manually or automatically at predefined time intervals to manually refresh the graph click the refresh button to set an automatic refresh time interval click the dropdown menu next to the refresh button select the relevant refresh time interval from the list
