Target Info Pane

1 min

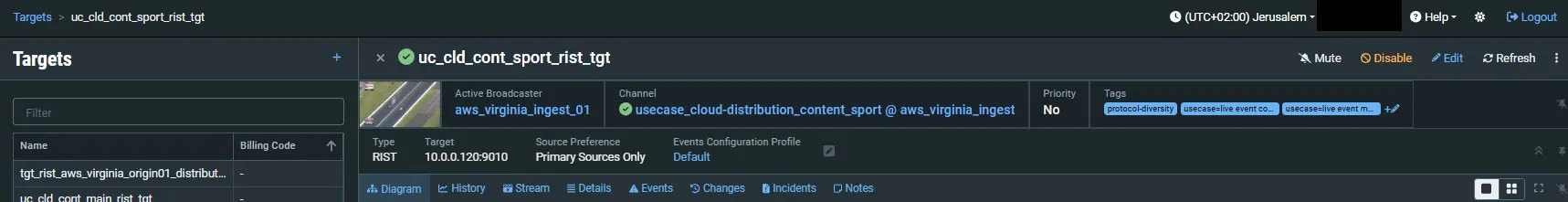

When a Target is selected, the list pane is minimized and detailed info about the selected Target is shown on the right side of the screen. The info can be shown in Tabs, Widgets or Expand view:

Parameter	Description
Type	The type of the Target in ZEN Master e.g., S3, Pull, Push, RIST, RTP, UDP, File etc.
Push
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preferece	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Latency	The latency value that was configured for the Target. Actual latency will be set by Cluster redirection rules, then this value, and then the remote device’s configuration.
Pull
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Latency	The latency value that was configured for the Target. Actual latency will be set by Cluster redirection rules, then this value, and then the remote device’s configuration.
HTTP
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Play Target	Click Target to play the Target content.
Tags	The Tag/s that is associated with this Target.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Encapsulation	The type of encapsulation used in the stream. Options are: DASH - CMAF (DASH + fMP4 HLS) HLS
MediaLive HTTP
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Azure
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Play HLS	Click HLS to play the Target content.
Tags	The Tag/s that is associated with this Target.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Encapsulation	The type of encapsulation used in the stream. Options are: DASH - CMAF (DASH + fMP4 HLS) HLS
AWS Media
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
RIST
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
RTMP
Active Broadcaster	The Broadcaster instance that is currently being used to stream.
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Bitrate	The current bitrate of the stream.
RTP
Active Broadcaster	The Broadcaster instance that is currently being used to stream.
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Target	The IP address and port of the destination to which the stream is being pushed.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
S3
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Play Target	Click to load a player to view the stream.
Tags	The Tag/s that is associated with this Target.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Encapsulation	The stream encapsulation. Possible values: CMAF (DASH + fMP4 HLS) HLS
Region	The cloud service region.
SRT Pull (Listener)
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Location	The location of the Target.
Network	The network on which the Target is hosted.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Latency	The latency value that was configured for the Target. Actual latency will be set by Cluster redirection rules, then this value, and then the remote device’s configuration.
SRT Push (Caller)
Active Broadcaster	The Broadcaster instance that is currently being used to stream.
Channel	The channel that is associated with the Target.
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Target	The IP address and port of the destination to which the stream is being pushed.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Latency	The latency value that was configured for the Target. Actual latency will be set by Cluster redirection rules, then this value, and then the remote device’s configuration.
UDP
Priority	Objects can be labeled as Priority so that they can be quickly found in the list of objects. This is helpful if you want to easily find these objects by sorting and filtering the list. Yes - the Priority checkbox of the Access Tag of this Target has been enabled. No - the Priority checkbox of the Access Tag of this Target has been enabled.
Tags	The Tag/s that is associated with this Target.
Target	The IP address and port of the destination to which the stream is being pushed.
Source Preference	The preference for connecting to a Source. Possible values include: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.
Events Configuration Profile	The Events Configuration Profile that was selected for this Target. Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
