Targets
Viewing Existing Targets
3min

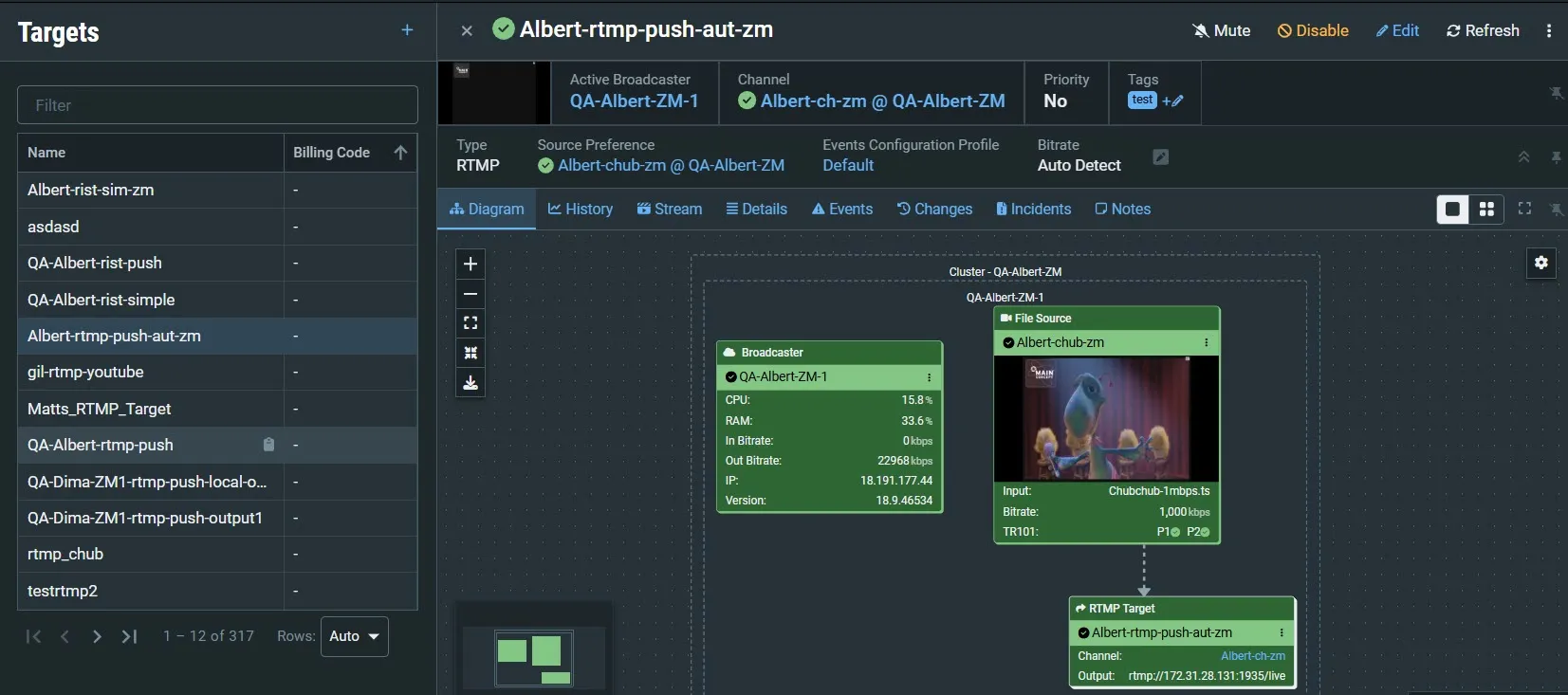

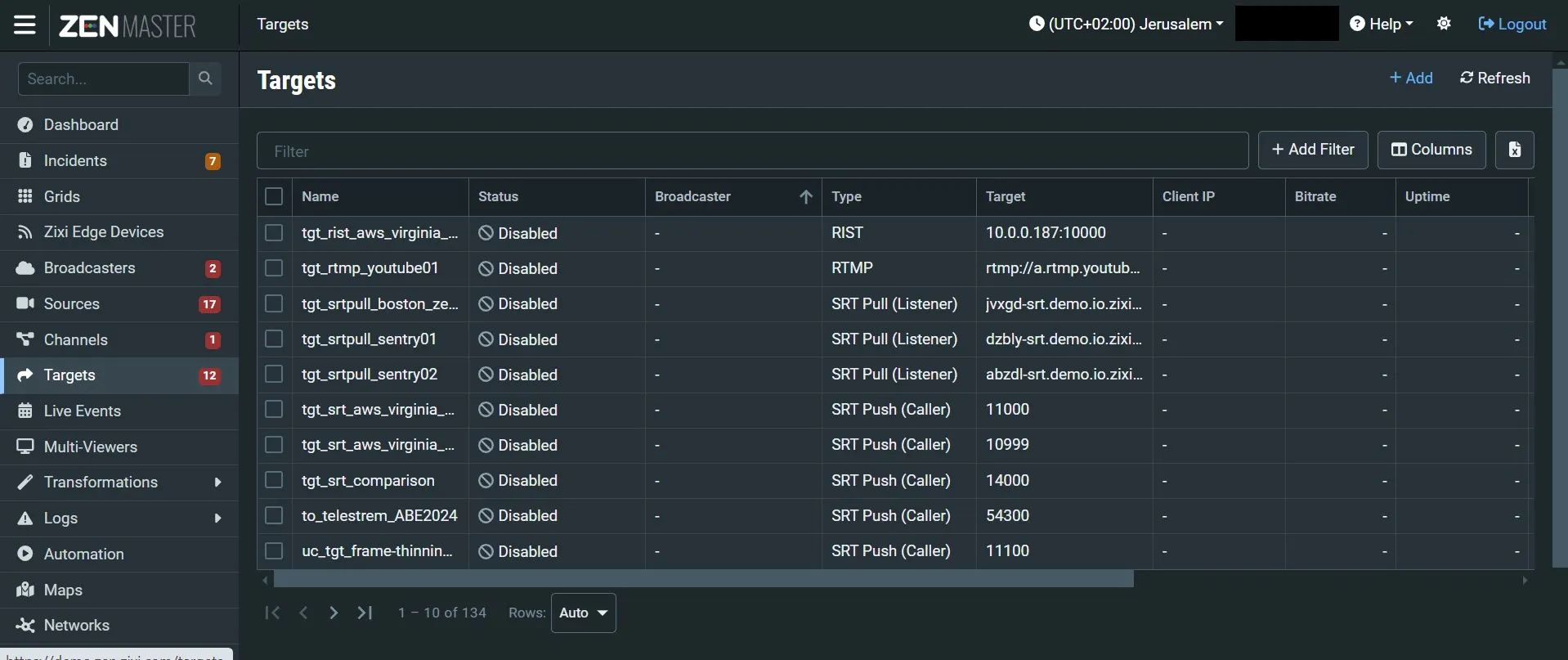

the targets screen displays all existing targets, and information about the status and configuration of each target it is possible to add more show/hide columns docid\ youqeti1 pioyyvkaasxp to the list if you want to view resources that were marked as priority , add the priority column and sort by it parameter description name the name of the target status shows the status of the target possible statuses are ok the target is running properly not assigned the target is not assigned to a channel disabled the target has been disabled channel disabled the target is assigned to a channel, but the channel has been disabled error the target is in an error state hover over to view the error details pending the target is in a pending state until it is connected the 🔒 icon next to a target indicates that the target is password protected the 🔕 icon next to a target indicates that the target is muted, disabling notifications for error/recovery events broadcaster the broadcaster in the cluster that is serving the steam type the type of target, possible types are push pull srt udp rtp rist azure http s3 rtmp medialive http aws media target the id/name/ingest url of the ingest component that is pulling the stream or to which the stream is pushed client ip the ip of the destination point, when known bitrate the stream's current bitrate, when streaming uptime the amout of time that the stream is streaming channel the associated channel alt path specifies if an alternative path has been configured or not the alternative path is configured through the broadcaster cluster or the channel configuration screens and attached to a target by following the instructions in attaching a target to an alternative path docid\ cf1nmnbvzxusnsmeaemkr when a target is selected, the list pane is minimized and detailed info about the selected target is shown on the right side of the screen the info can be shown in panels view or tabs view, see info pages docid 6tlis3dzx2ovwgel0k3il target info page when a target is selected, the following tabs are shown at the right side of the screen details – configuration details of the selected target diagram – this tab shows a schematic diagram of the system elements associated with the target history – a graphical display of the stream’s performance over time events all the related events that have been generated by the system, such as connections, errors, warnings and disconnections to learn about the data that is displayed in the events tab see events https //zixidocumentation atlassian net/wiki/spaces/zmug/pages/483688494/events click quick report to generate a report of events related to this source and download the xls file change tracking displays the history of changes that were made to the object configuration configuration (for pull targets) – configuration settings for connecting unmanaged resources to be used as pull targets notes – free form text can be added with pertinent information about this target incidents – groups together related errors into incidents to simplify the process of identifying the common root cause traceroute – shows the traceroutes used by the stream the main display includes the following data for each target parameter description bitrate the current bitrate of the source broadcaster the name of the broadcaster that is used for the target channel the name of the channel that uses this target as a destination for the stream channel type select the type of channel to which you would like to add targets options are adaptive channel, pass through channel or mediaconnect flow client ip the client ip of the target name the name of the target as configured in zen master selection checkbox select one or more targets and perform actions on all selected targets available actions are mute all disables notification for error/recovery events for the selected targets unmute all enables notification for error/recovery events for the selected targets switch channel switch the channel that is assigned to the selected targets if no channel has been assigned yet, then this button is used to assign a channel go to alternative (if alt path is enabled) if the alternative path was configured from the channel or the cluster, click this button to attach the target to the alternative path see ?? for more information edit enables you to edit the target configuration clone create an additional target based on the settings of the selected target enable all re activates all active streams for the selected targets disable all stops all active streams to that target without deleting the configuration of the target delete all deletes the target configuration for the selected target status the status of the target possible values green – ok red – error state pink (shown together with a checkmark) – acknowledged error state pink (shown together with a checkmark) – acknowledged error state yellow – warning (recovered from error event) yellow – warning (recovered from error event) gray – not assigned the muted icon next to a target indicates that the target is muted, disabling notifications for error/recovery events the disabled icon next to the target indicates that the channel is disabled target the type of target possible types are push, pull, rtmp, s3, http or udp/rtp type the target type possible types are push, pull, rtmp, s3, http or udp/rtp uptime for online sources, shows the number of hours, minutes and seconds that the source has been online target details docid\ n9nexwogvicziyqkg6jtp child targets (for dynamic targets) docid\ rzns cqa3sjathllxz n target history docid\ gfii56tghka wmnr7n6y7 target events docid\ opytjgc1eox2ou a6jush target configuration docid\ kn1ka zuxchnwq00sh2ih target notes docid\ dbjdczer2aee1snlnyxqp target traceroute docid 2wb7ye1iy4p7osll7mnn8 attaching a target to an alternative path docid\ cf1nmnbvzxusnsmeaemkr
