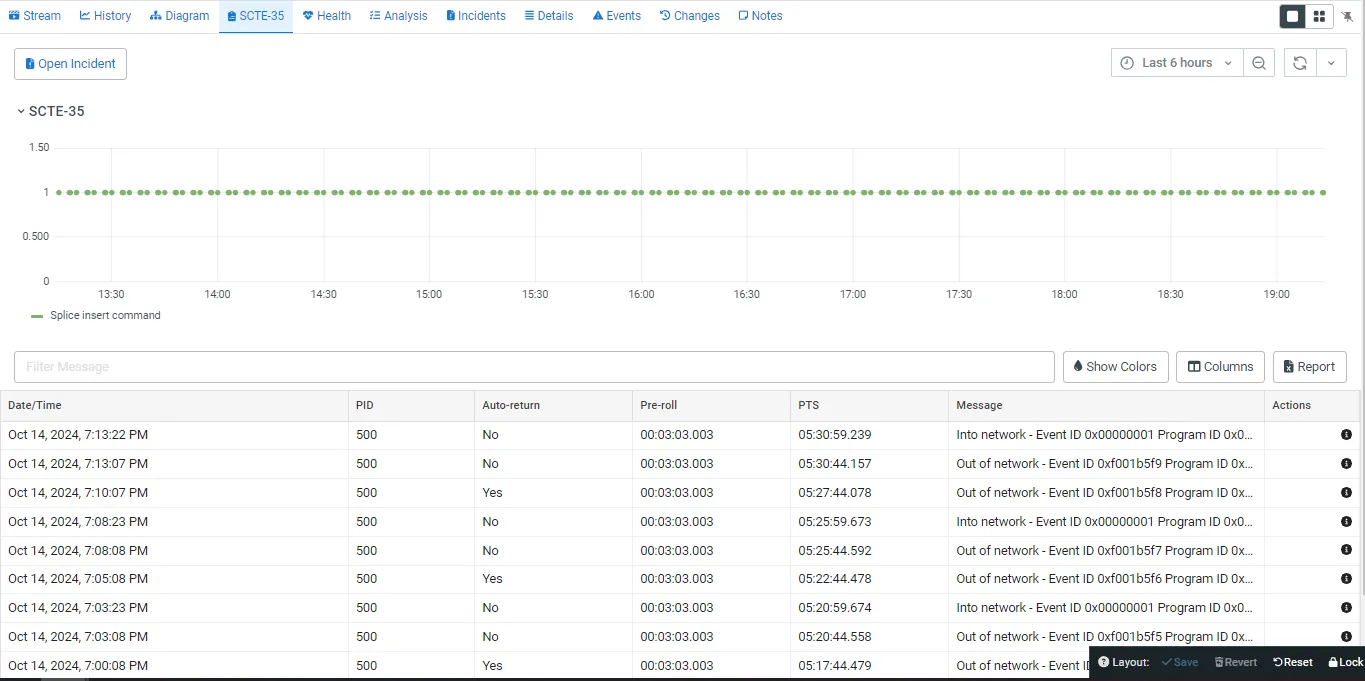

If SCTE-35 was enabled for the Source, the SCTE-35 section shows a log of all the SCTE-35 markers for this Source. To learn about the data that is displayed in the SCTE-35 tab, see

The graph marks the various events on a timeline. The event types and their colors are indicated in the legend, which is located at the bottom of the graph. The X-axis indicates the timeline and the Y-axis indicates the number of events.

The graph features the following functionality:

Set the time range of the display either by selecting one of the preset time ranges or by entering a custom time range. (Default:

Manually refresh graph data or set the automatic refresh frequency.

Hover over a point on the graph to show the total values for that time.

Click and drag the cursor over a time range to zoom in on that time range. The table at the bottom will be also filtered to include only events within the zoomed time range.

Double click on the graph to zoom out on the graph (i.e. expand the time range).

Click on the title of a data element in the key to display only that element.

The SCTE-35 table displays the SCTE-35 messages that were detected. The rows are color coded according to the type of message (e.g., Program Start/End, Chapter Start/End, etc.). You can filter the list using the graph or by typing a message (or part of it) in the Filter Message field.

 - filters the list based on the inputted text.

 - hides or shows the color coding of the table.

 - click to download the table as an Excel file report.
