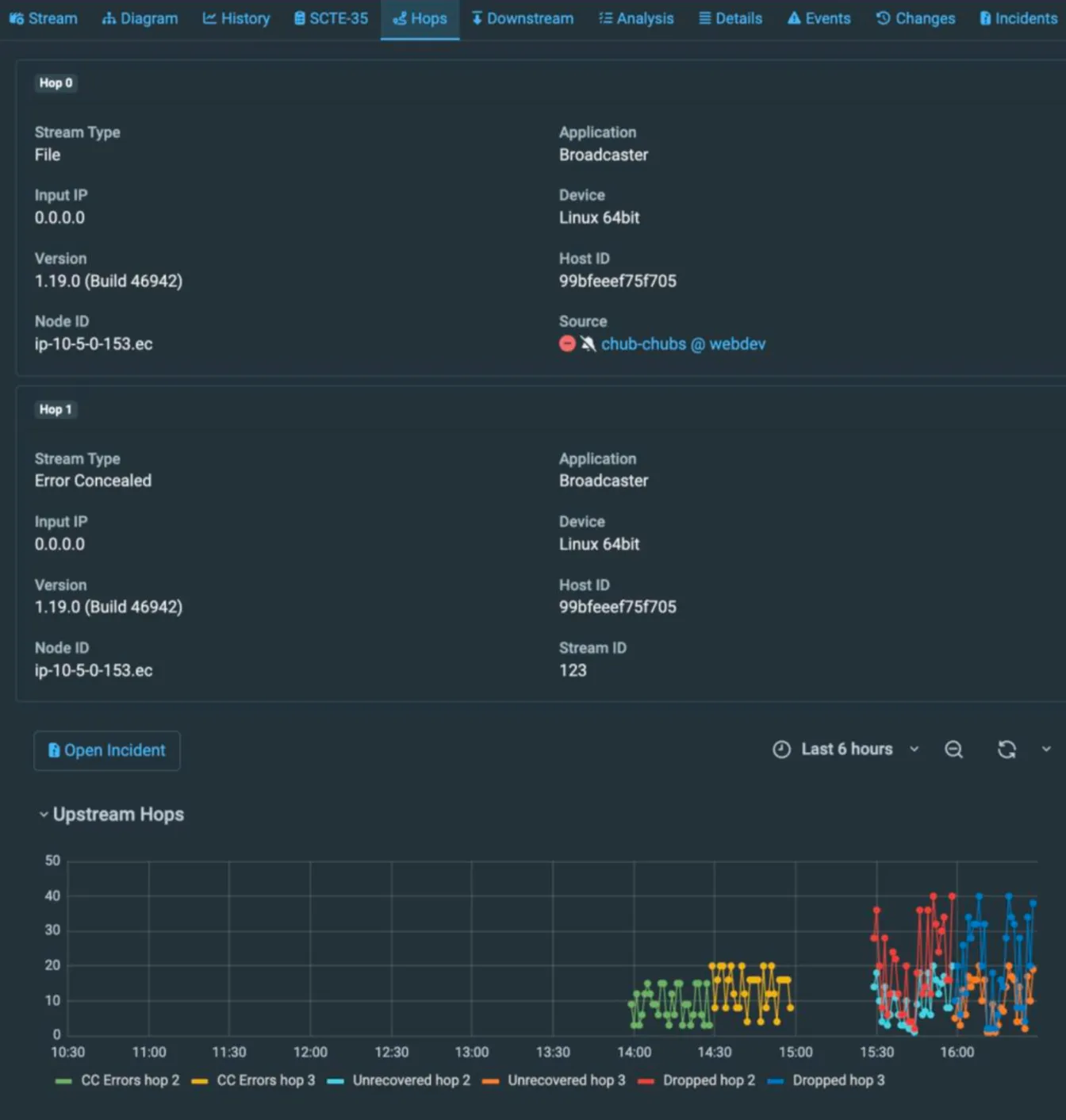

 tab on the Source page shows the upstream hop chain, with an "Upstream Hops" graph:

Per hop: stream type, input IP, application, device, version, host and node IDs, with a link to the matching Source when it is managed in ZEN Master

Graph: per-hop CC errors, unrecovered and dropped packets

Source SCTE-35 Log

Hops Diagram
