Source Details

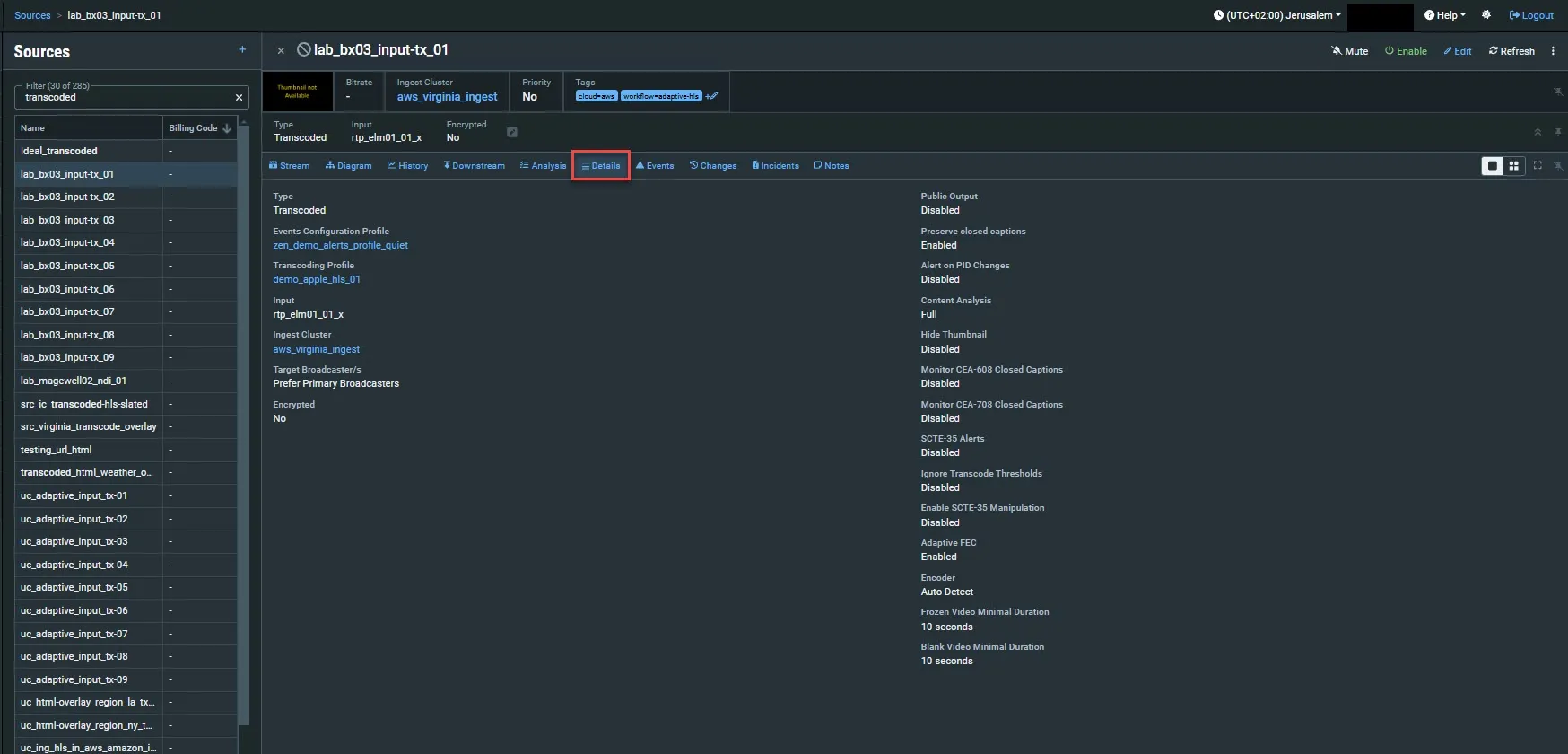

the details section shows the following information parameter description type the type of the source in zen master e g , broadcaster, zec, monitor only, rist, file etc note a “ from mediaconnect " source is a source that receives a stream from mediaconnect ( method 1 integration), a " to mediaconnect " source is a zen master managed mediaconnect source, which was created in zen master ( method 2 integration), see adding a source aws mediaconnect docid\ qi aqkv6wt6yirhatikvu aws media name the name of the source input the name of the input stream events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger latency (ms) the latency value for the source ingest port the port that the flow listens on for incoming content whitelist cidr block the cidr for the range of ips that is allowed to contribute content to this source aws mediaconnect flow the name of the aws mediaconnect flow to which the source will connect aws medialive channel the name of the aws medialive channel to which the source will connect aws account the logical name of the aws account in zen master (configuration > amazon aws > accounts) region the aws region in which the mediaconnect/medialive is deployed broadcaster events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the name of the origin broadcaster input location the location of the origin broadcaster network the isp/network of the origin broadcaster source ip the ip address of the origin broadcaster transcoded – means that the source is transcoded source password click show to display the source's password click copy to copy the password ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the origin application used to send the source to the ingest cluster in this case it is a broadcaster device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted the type of encryption used to protect the stream remote id the id of the origin zec/broadcaster/device certificate indicates whether the dtls certificate has been installed and its expiration date rtp payload indicates that rtp headers are present and being preserved max bitrate the maximal bitrate that the stream has reached throughout time latency the maximal latency configured for the source public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions shows if the preserve closed caption is enabled/disabled this feature preserves the closed captions from the source alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled and the type of content analysis that has been configured (full/tr101 only/none) content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers requires scte 35 logging enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state demux events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the name of the input stream ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled and the type of content analysis that has been configured (full/tr101 only/none) content analysis shows errors detected in the audio and video content itself hide thumbnail shows is the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) log scte 35 shows if the source is enabled to log scte 35 markers scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state failover events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger primary sources the names of the sources that have been configured as preferred sources in the failover the active source is indicated as active secondary sources the names of the sources that have been configured as non preferred sources in the failover the active source is indicated as active slate sources the names of the sources that have been configured as slate sources in the failover the active source is indicated as active automatically switch to preferred source if enabeled, switches automatically to the configured preferred source failover mode the mode used to merge the streams stream switch zen master treats the streams as different and does not try to merge them if packets are missing from one stream, zen master will switch to the alternate stream content hitless merge if the sources do not have rtp headers, zixi will merge the streams using the mpeg ts payload content itself this method uses zixi's patented dna like sequencing algorithm to fill in the missing packets smpte 2022 7 hitless if the sources use rtp, and the rtp headers were maintained, zixi can use the smpte 2022 7 to compare and merge the two streams this option uses the sequence and the timestamp in the packets to compare which packets are missing, providing optimal results zero bitrate/offline detection window the time frame with zero bitrate or offline state after which the system will perform the failover ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key preserve rtp headers if enabled, the system preserves the rtp headers (which include the timestamps and sequences) and propagates them the output max bitrate the maximal bitrate that the stream has reached throughout time public output if enabled, it allows access to the stream directly through a supported player preserve closed captions shows if the preserve closed caption is enabled/disabled this feature preserves the closed captions from the source alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled and the type of content analysis that has been configured (full/tr101 only/none) content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state file events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger url for file source type, the url of the source stream ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state hls events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the name of the input stream location the location of the source network the isp/ network of the source ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time buffer size the amount of video data downloaded and stored by the player before playback begins in milliseconds convert ext x cue out/ext x cue in ad markers to scte 35 if enabled, the system converts ext x cue out/ext x cue in ad markers to scte 35 public output if enabled, it allows access to the stream directly through a supported player preserve closed captions shows if the preserve closed caption is enabled/disabled this feature preserves the closed captions from the source alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state inter cluster input the name of the input stream events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger source ip the ip address of the source's input resource transcoded means that the source is transcoded ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source prefer private broadcaster ip if enabled, this setting overrides the cluster redirection rules it requires a private ip to be set in broadcaster advanced settings location the location of the source secondary sources for failover source type, the names of the sources that have been configured as secondary sources in the failover network the isp/ network of the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key health the current health score of the source remote id the id of the origin zec/broadcaster/device max bitrate the maximal bitrate that the stream has reached throughout time latency the configured latency in milliseconds public output if enabled, it allows access to the stream directly through a supported player preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section minimize latency if enabled, zixi adjusts the latency dynamically to optimize it for network conditions content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) log scte 35 shows if the source is enabled to log scte 35 markers scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state certificate indicates whether the dtls certificate has been installed and its expiration date rtp payload indicates that rtp headers are present and being preserved traceroute history shows if the traceroute history is enabled/disabled this feature shows historical traceroutes that have been used for this stream the graph shows rtts for each server used by the stream over time monitor only events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location the location of the source network the isp/ network of the source ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) log scte 35 shows if the source is enabled to log scte 35 markers scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state source ip the ip address of the source's input resource transcoded – means that the source is transcoded multiplex events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger sources the sources that were selected to become a program in the mpts source ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key target bitrate the configured target bitrate of the multiplex stream in kbps, which should be at least as high as the sum of all of the effective bitrates of the individual stps sources included in the multiplex source max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) remove inactive streams from multiplex if enabled, the system will remove inactive streams from the miltiplex source hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself multiview events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger sources the sources that were selected to be part of the multiview source location the location of the source network the isp/ network of the source ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state ndi events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger transcoding profile transcoding profiles – displays all existing transcoding profiles and details about their configuration see viewing existing transcoding profiles on this screen, you can add new transcoding profiles and manage existing transcoding profiles input the details of the source’s input ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers transcoding profiles – displays all existing transcoding profiles and details about their configuration see viewing existing transcoding profiles on this screen, you can add new transcoding profiles and manage existing transcoding profiles enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state source ip the ip address of the source's input resource transcoded – means that the source is transcoded application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster max bitrate the maximal bitrate that the stream has reached throughout time other events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger source ip the ip address of the source's input resource transcoded – means that the source is transcoded ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key remote id the id of the origin zec/broadcaster/device max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section minimize latency if enabled, zixi adjusts the latency dynamically to optimize it for network conditions content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) log scte 35 shows if the source is enabled to log scte 35 markers scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state health the current health score of the source location the location of the source network the isp/ network of the source source password click show to display the source's password click copy to copy the password certificate indicates whether the dtls certificate has been installed and its expiration date pid mapping events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the details of the source’s input ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state pull events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the details of the source’s input location the location of the source network the isp/ network of the source remote host the host name/number of the remote server remote port the port on the remote server ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section minimize latency if enabled, zixi adjusts the latency dynamically to optimize it for network conditions content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state source ip the ip address of the source's input resource transcoded – means that the source is transcoded application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster remote id the id of the origin zec/broadcaster/device max bitrate the maximal bitrate that the stream has reached throughout time srt events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the name of the input stream location the location of the source network the isp/ network of the source source ip the ip address of the source's input resource transcoded – means that the source is transcoded remote host the host name/number of the remote server remote port the port on the remote server ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source application the application used to process the source device the os of the origin broadcaster machine build the build version of the origin broadcaster encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key verify stream id if enabled, verifies that the stream id of this input matches the stream id in the srt feed before allowing the connection max bitrate the maximal bitrate that the stream has reached throughout time latency the configured latency in milliseconds public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state transcoded events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger transcoding profile transcoding profiles – displays all existing transcoding profiles and details about their configuration see viewing existing transcoding profiles on this screen, you can add new transcoding profiles and manage existing transcoding profiles input the details of the source’s input html overlay url the url of the html overlay the external html will be pulled directly to the processing broadcaster and rendered over the transcoded video output for more information, see html overlay installation guide docid 1svyta7p777nbtqpn8yt8 ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers ignore transcode thresholds if enabled, the system will override the transcode thresholds for your ingest cluster (i e to allow use of full cpu/gpu and memory capacity) source ip the ip address of the source's input resource transcoded – means that the source is transcoded device the os of the origin broadcaster machine build the build version of the origin broadcaster enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled encoder the encoder used for transcoding (decode and reencode processes) frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state zec events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the details of the source’s input location the location of the source network the isp/ network of the source source password click show to display the source's password click copy to copy the password ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key latency the configured latency in milliseconds public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) log scte 35 shows if the source is enabled to log scte 35 markers scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state zixi ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output this is a zixi url for stream playback if a password was configured for the public output authorization, then the password is included in the url preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled rtp events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the details of the source’s input source ip the ip address of the source's input resource location the location of the source network the isp/ network of the source ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key max bitrate the maximal bitrate that the stream has reached throughout time use forward error correction (fec) if fec is enabled, repair packets are sent on additional ports, enabling packet recovery preserve rtp headers if enabled, the system preserves the rtp headers (which include the timestamps and sequences) and propagates them the output public output this is a zixi url for stream playback if a password was configured for the public output authorization, then the password is included in the url preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled frozen video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a frozen video state blank video minimal duration specifies the threshold in seconds afterwhich the content analysis will alert on a blank video state dejitter clock source the mechanism used in the calculation of the jitter arrival times rtp timestamps dejitter buffer the length of the de jitter buffer (in milliseconds) the buffer is used to collect packets and measure the jitter of the source that is arriving with jitter udp events configuration profile the events configuration profile that was selected for this source events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input the details of the source’s input ingest cluster the ingest cluster in zen master that receives this stream click on the link to view details about the ingest cluster target broadcaster/s specifies which broadcaster/s within the cluster on which zen master can deploy the source encrypted if one of the encryption methods was selected, in the encryption key field, enter an encryption key that will be used to encrypt the connection or click random to generate a random encryption key public output this is a zixi url for stream playback if a password was configured for the public output authorization, then the password is included in the url preserve closed captions if you would like to preserve closed captions for this source, select this checkbox (default) alert on pid changes shows if the alert on pid changed is enabled/disabled this feature generates email notifications whenever a pid change is detected in the configuration section content analysis shows if the content analysis is enabled/disabled content analysis shows errors detected in the audio and video content itself hide thumbnail shows if the source is enabled to hide the source's thumbnail from where it is displayed (e g , the preview pane, grids, etc ) scte 35 alerts shows if the source is enabled to send alerts for scte 35 markers enable scte 35 insertion if this setting is enabled, broadcaster is able to insert a scte 35 marker to the stream based on a placement by an external system through the esam agent when the placement opportunity occurs, the esam agent generates an api call to the broadcaster, which initiates the insertion of the scte 35 marker into the input stream frame thinning latency the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, broadcaster needs a buffer the setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the thinning latency, the more accurate results the thinner will reproduce recommended/reasonable value is 1 second o ms frame thinning is disabled dejitter clock source the mechanism used in the calculation of the jitter arrival times rtp timestamps source diagram docid\ l4l9ils6muqi4um1l0pqz
