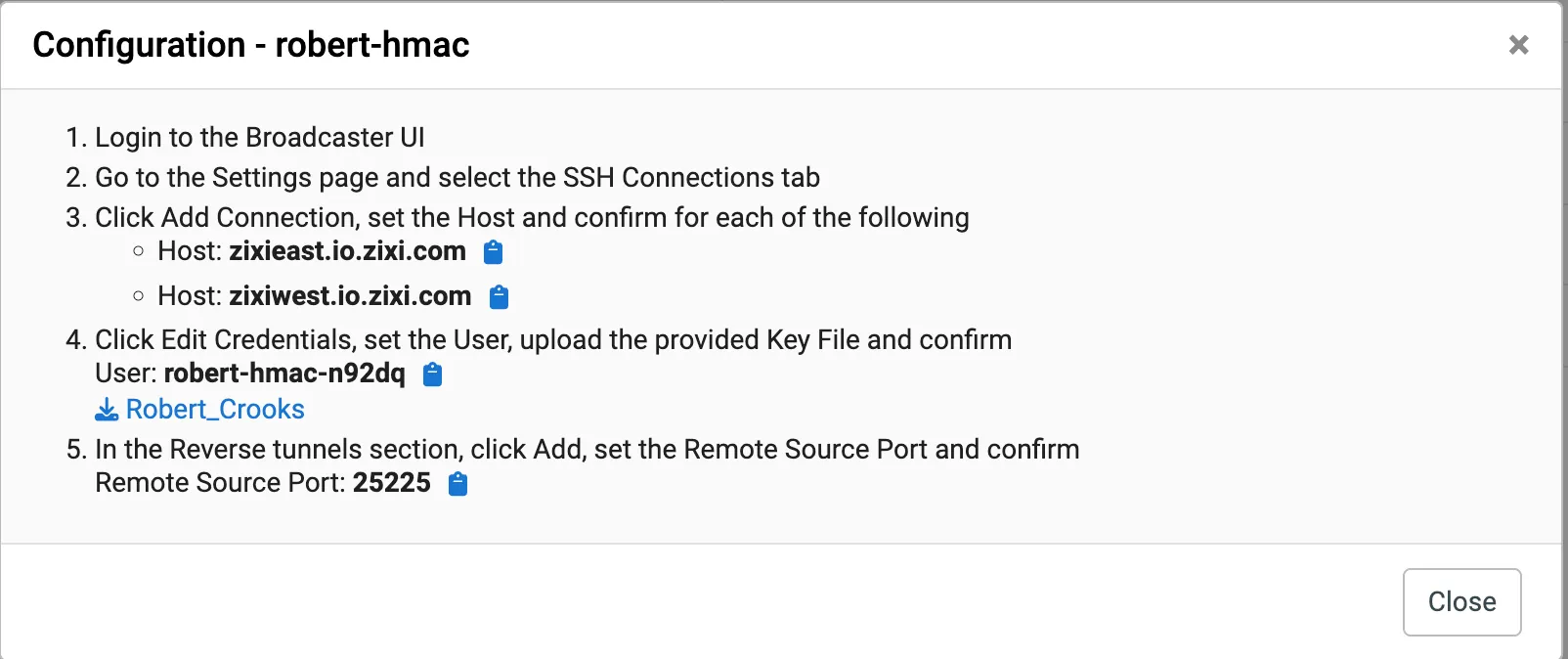

For each Zixi Broadcaster instance that has been added to the cluster (for manual management), you will need to configure the connection of the Zixi Broadcaster (using its Zixi Broadcaster UI). This includes configuring the SSH tunnel. You will need an SSH key, which you can create in ZEN Master - see

Note: for the steps below, you will need to work in both in ZEN Master and in the Broadcaster settings, so it will be useful keep both open in separate browser tabs.

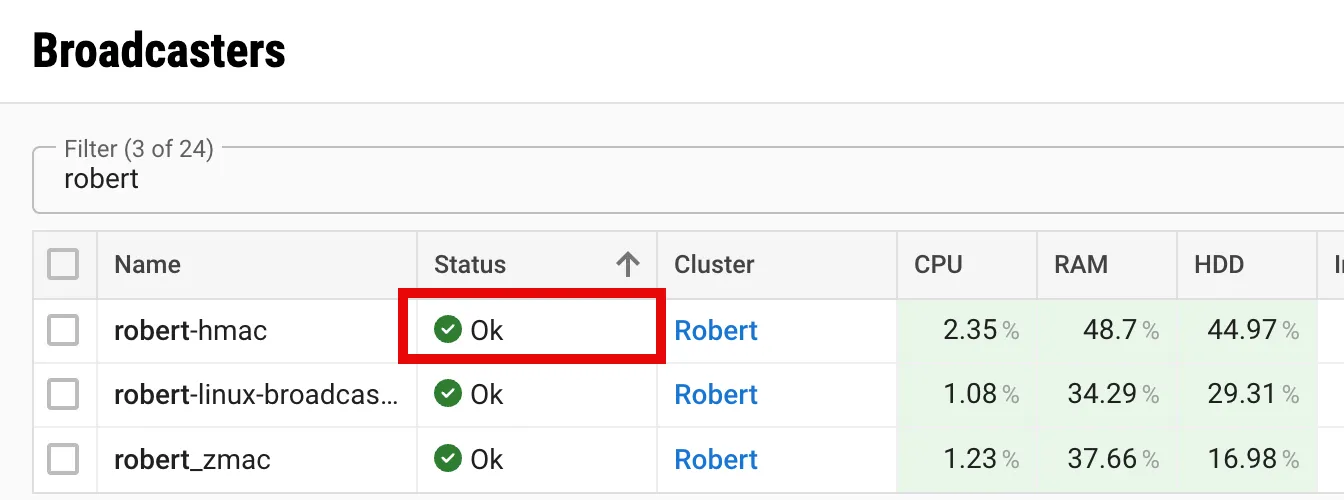

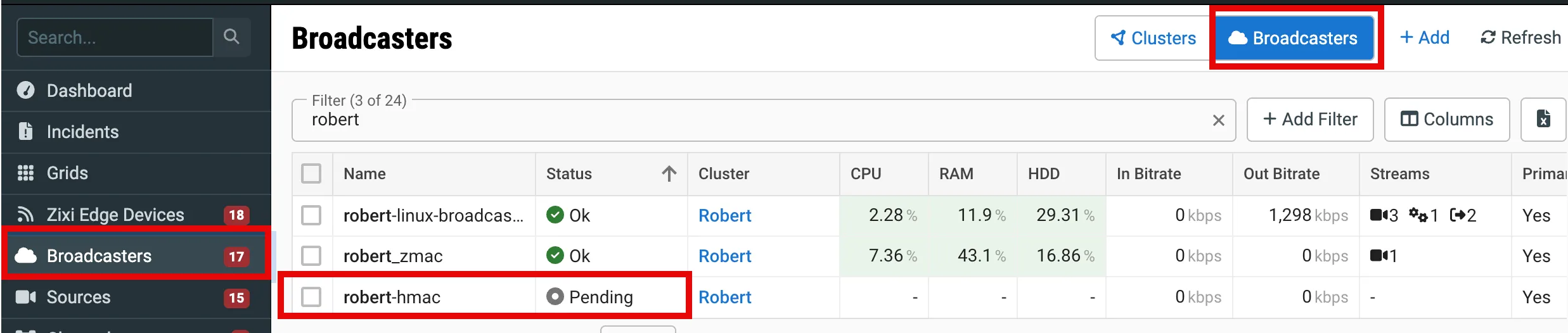

Select the new Broadcaster cluster. In the Broadcaster section, verify that the status of the Broadcaster that was added to the cluster has changed from

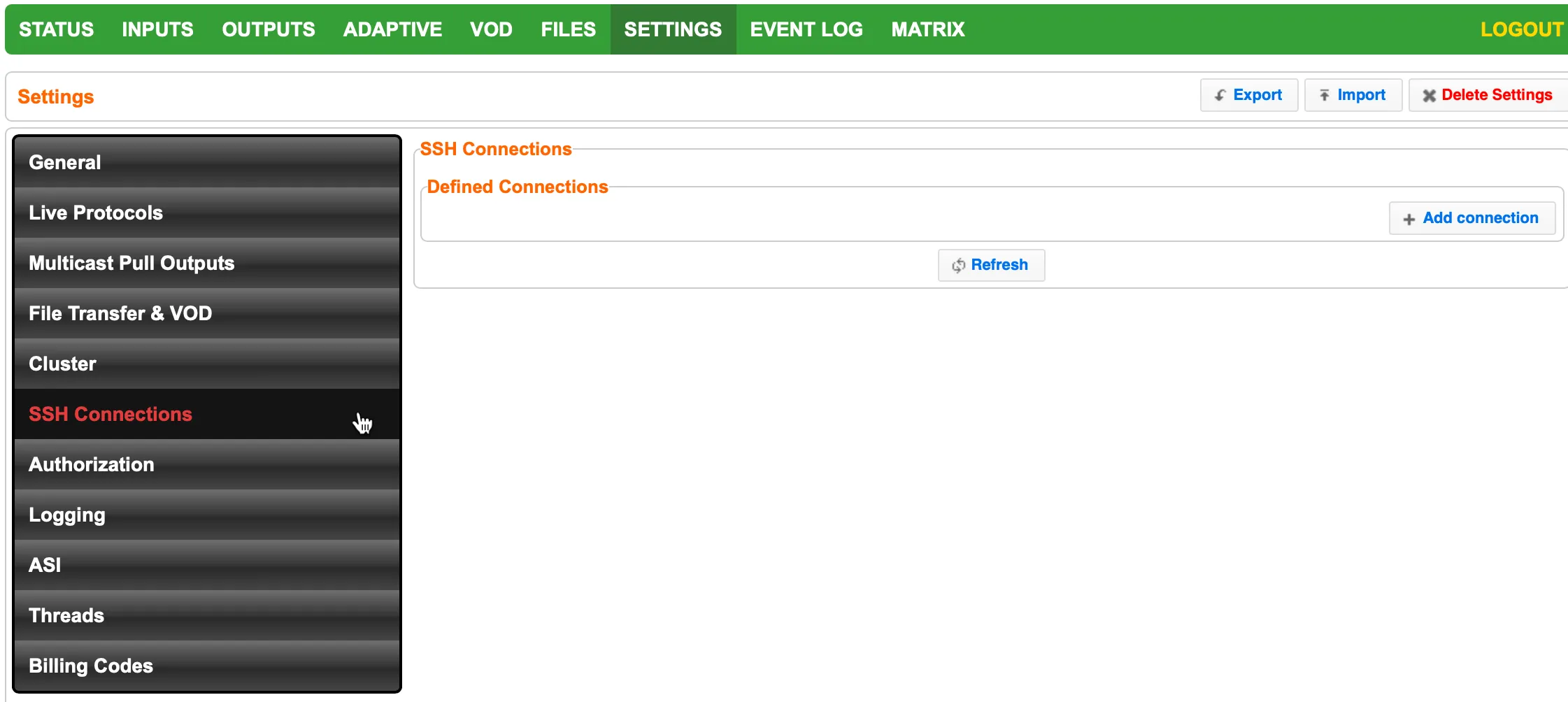

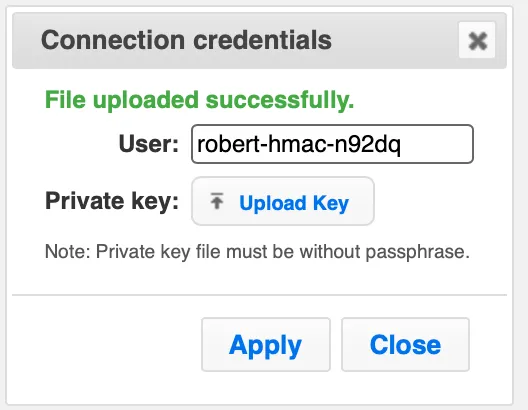

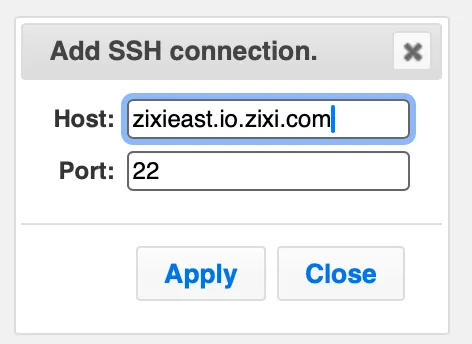

Connecting the Zixi Broadcaster (Zixi Broadcaster UI – For Manual)

Updating the Broadcaster API Password

Adding a Broadcaster to a Manual Cluster
