SSH Keys are used in ZEN Master to enable ZEN Master to access the web UI of a connected Zixi resource (e.g. Broadcaster, Feeder, Receiver or other Zixi enabled device).

When you configure resources in ZEN Master you will assign an SSH key to each resource. You can use a single SSH key for several resources or use a separate key for each resource. Each SSH key is associated with one or more Tags which control which users have access to that key.

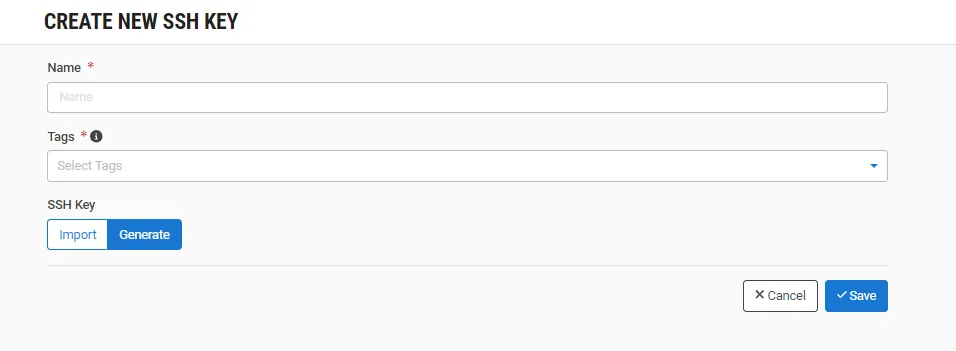

There are two methods for generating SSH keys:

Generate the key in ZEN Master and then download the private part of the key and load it into the external device. (simplest method)

Generate the key on the external device and then

 the public part of the key into ZEN Master. (most secure method)

If you are importing a public key, it must be a "strong" key in order for it to be accepted in ZEN Master.

If an SSH Key was imported from an external device (not generated in ZEN Master) then you will need to use the manual method to connect the device to ZEN Master and not the automatic method (i.e. v12 method).

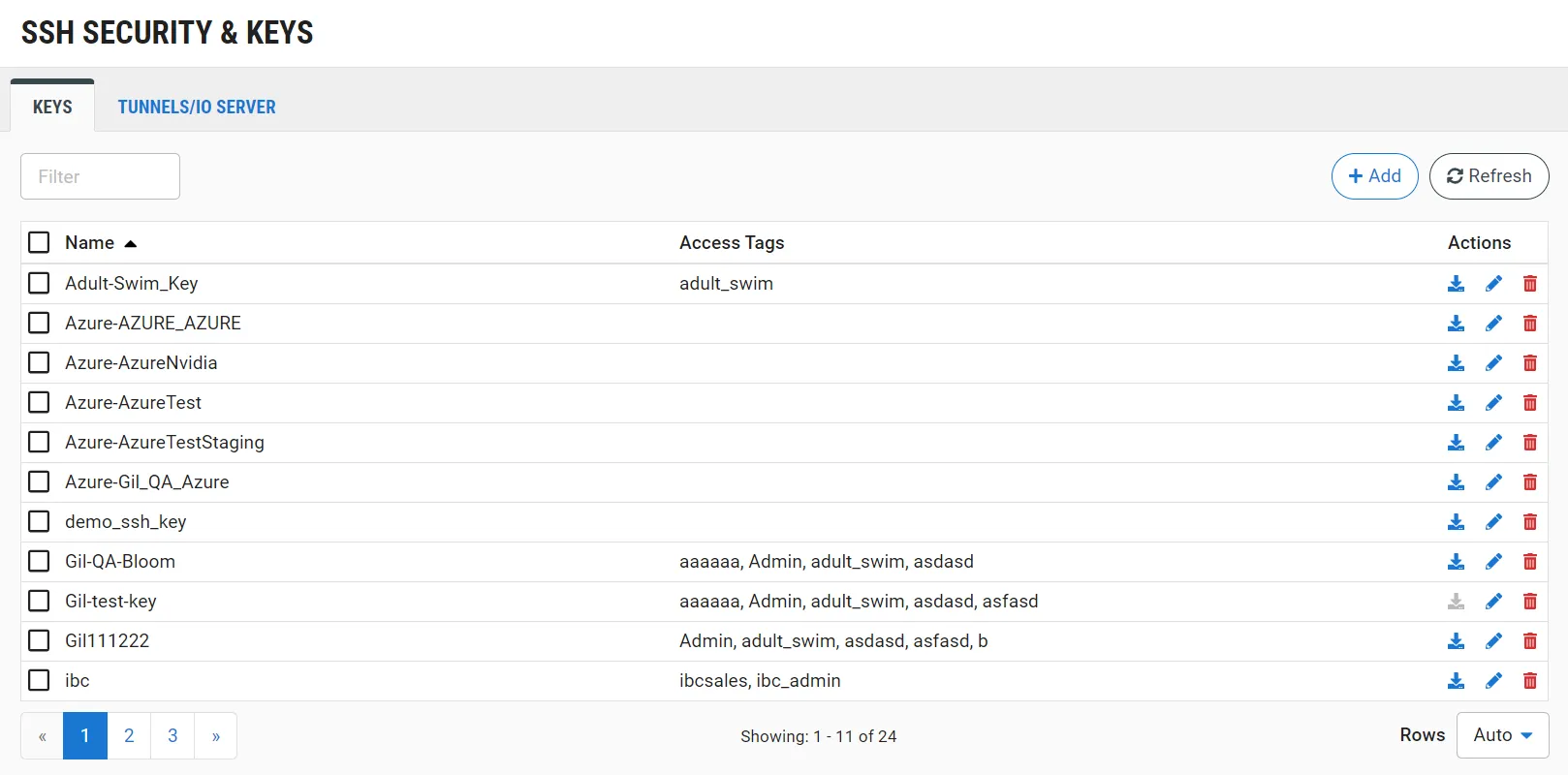

The SSH Security & Keys screen shows a list of the SSH keys available in your system as well as the tag/s associated with each key.

You can perform the following action for each SSH key.

 – Edit the name and/or Tag for that key.

 – Download the private part of the key onto your local machine (for keys generated in ZEN Master).

 tab shows the Hostname used for SSH tunnels and includes a link to download the Public Key used to sign the SSH server's unique ID.
