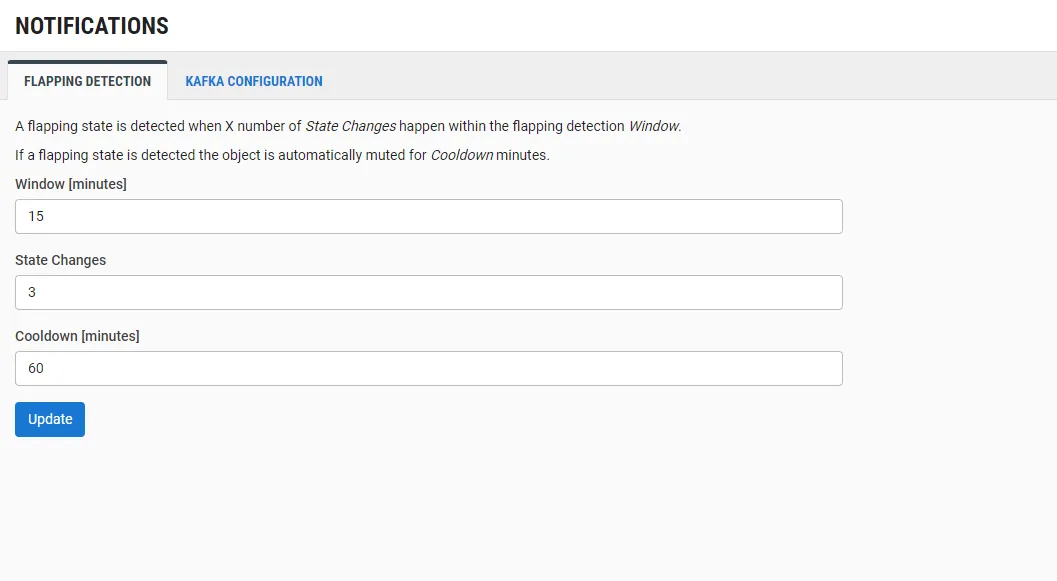

ZEN Master uses Flapping Detection to stop the system from flooding users with multiple notifications for a particular object in the system that undergoes frequent state changes. Once the threshold frequency of recurrence is reached, the system automatically mutes the notifications for that object until it becomes stabilized.

Users can configure the settings for what degree of frequency causes the notifications to be muted and how long the system must remain stable before notifications for that object are reactivated, see

The following table describes the information shown in this section:

Configuring Flapping Detection

Configuring Kafka Servers

Configuring Notifications
