ZEN Master uses Flapping Detection to prevent the system from flooding users with multiple notifications for a particular object in the system that undergoes frequent state changes. Once the threshold frequency of recurrence is reached the system automatically mutes the notifications for that object until it becomes stabilized.

You can configure the settings for what degree of frequency causes the notifications to be muted and how long the system must remain stable before notifications for that object are reactivated.

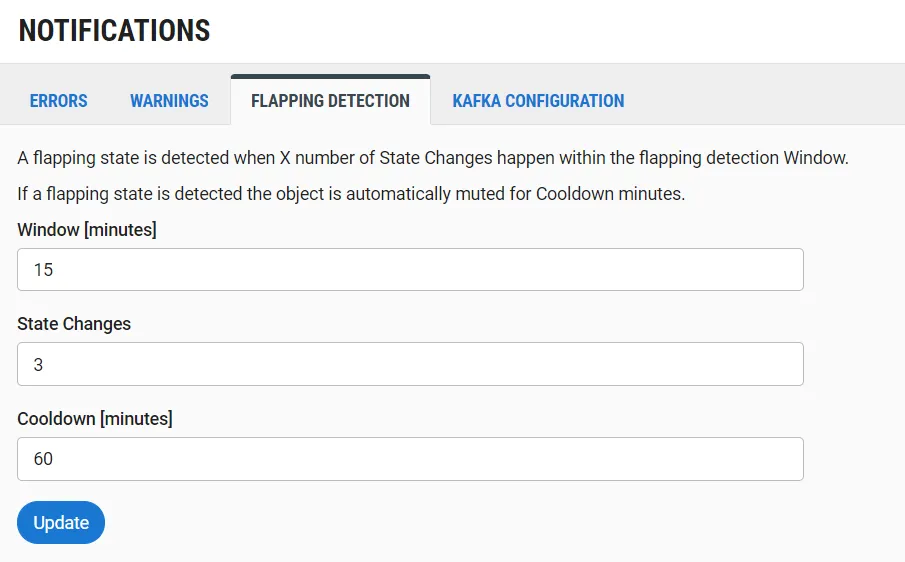

To adjust the Flapping Detection settings:

Muting Objects

Flapping Detection
