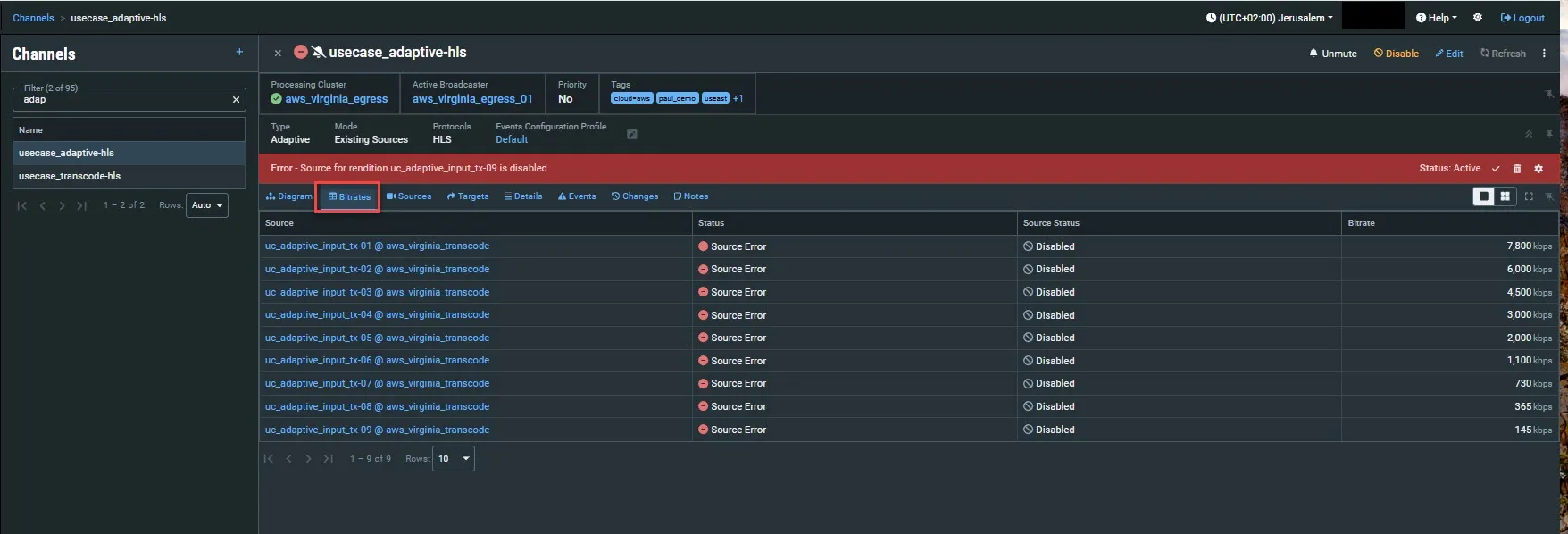

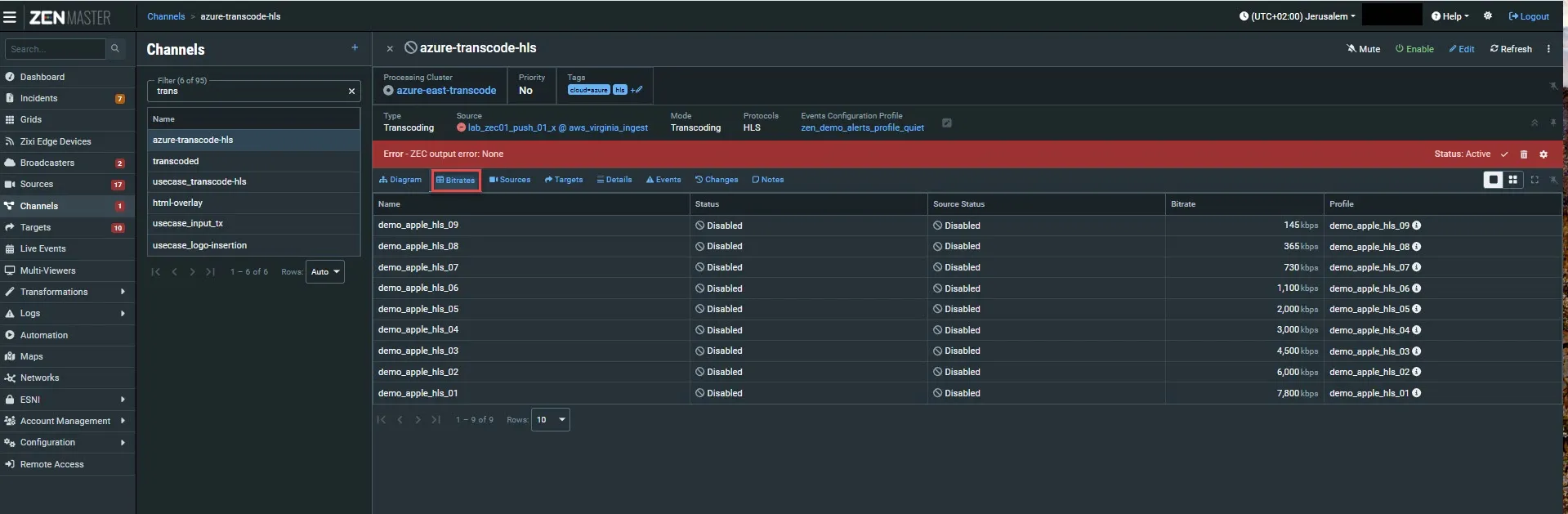

This section is shown for Adaptive and Transcoded Channels. It displays a list of stream bitrate variants.

HLS transmux (conversion) in an Adaptive or Transcoded Channel recives a Zixi input stream in and then generates HLS stream variants as an output. In case of an Adaptive Channel, there is one input and for each output. For Transcoding Channel, there is   a single input for all the outputs.

Channel Stream

Channel Bitrates
