Adding MediaLive HTTP Targets

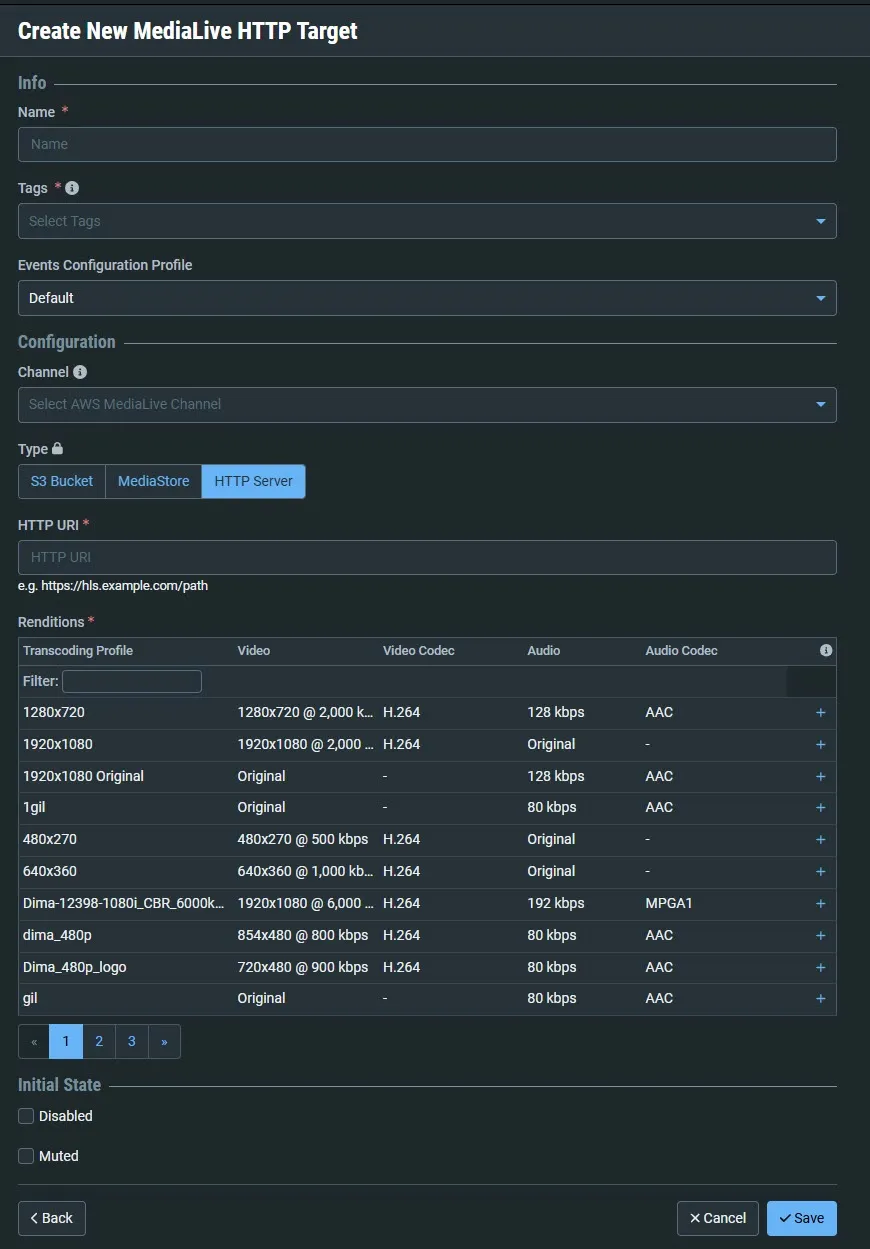

the medialive http target can be used to create aws medialive transcoding channels which can be targeted to a s3 bucket, mediastore or http server the following procedure describes how to add an aws medialive http target in zen master in addition, an explanation of each of the configuration parameters is given in the table below to add a new medialive http target in the main navigation, click targets click + add the create new target window is displayed click on medialive http the create new medialive http target window is displayed create new medialive http target window in the info section, in the name field, enter a logical name for the medialive http target in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger in the configuration section, under channel , select from the drop down list an aws medialive channel that will be sent to the target (optional field) the channel type is automatically set as zen master channel and can’t be changed the target will only become functional once a channel has been assigned to it however, you can configure the target settings and then add a channel to the target after the initial configuration under type , select the type of aws medialive target s3 bucket , mediastore or http server in the uri field, enter the uniform resource identifier for the target under renditions , select one or more transcoding profiles by clicking the + button for the desired source selected transcoding profiles are shown above the filter (you can remove a transcoding profile by clicking the button) in the initial state section, select the disabled checkbox if you would like to disable this target upon initial configuration select the muted checkbox if you would like to disable error/recovery notifications for this target upon initial configuration you can enable/unmute the target at any time click save you can verify that the new target was created by viewing the source tab in the mediaconnect ui medialive http target configuration parameters table parameter description info name specify a name for the ndi target in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this target to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this target by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location (optional) the target's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the target's ip enter identifying info for the location (e g street address, zip code, coordinates) and select the desired location from the suggestions that are shown configuration channel (optional) select from the drop down list an aws medialive channel that will be sent to the target note the target will only become functional once a channel has been assigned to it however, you can configure the target settings and then add a channel to the target after the initial configuration type select the type of aws medialive target s3 bucket mediastore http server uri enter the uniform resource identifier for the target renditions select one or more transcoding profiles by clicking the + button for the desired source selected transcoding profiles are shown above the filter (you can remove a transcoding profile by clicking the button) initial state disabled select this checkbox if you would like to disable this target upon initial configuration muted select this checkbox if you would like to disable error/recovery notifications for this target upon initial configuration
