Adding a Zixi Source – Other-Enabled Device

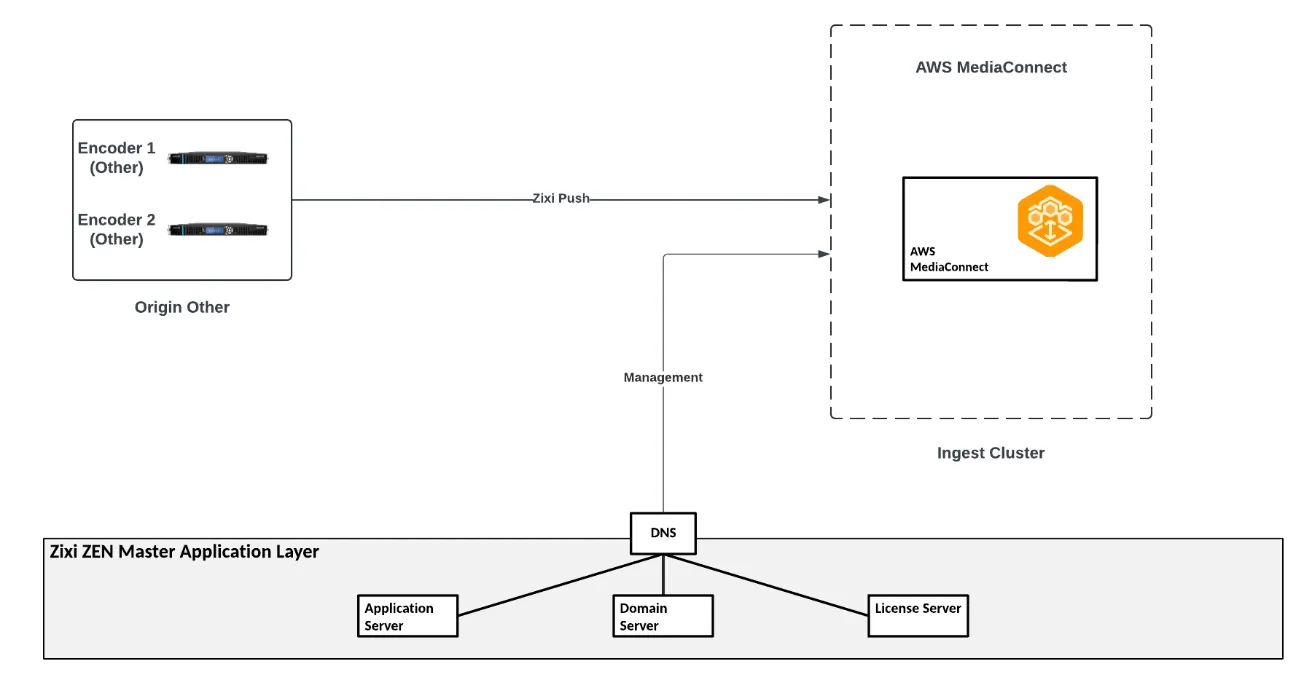

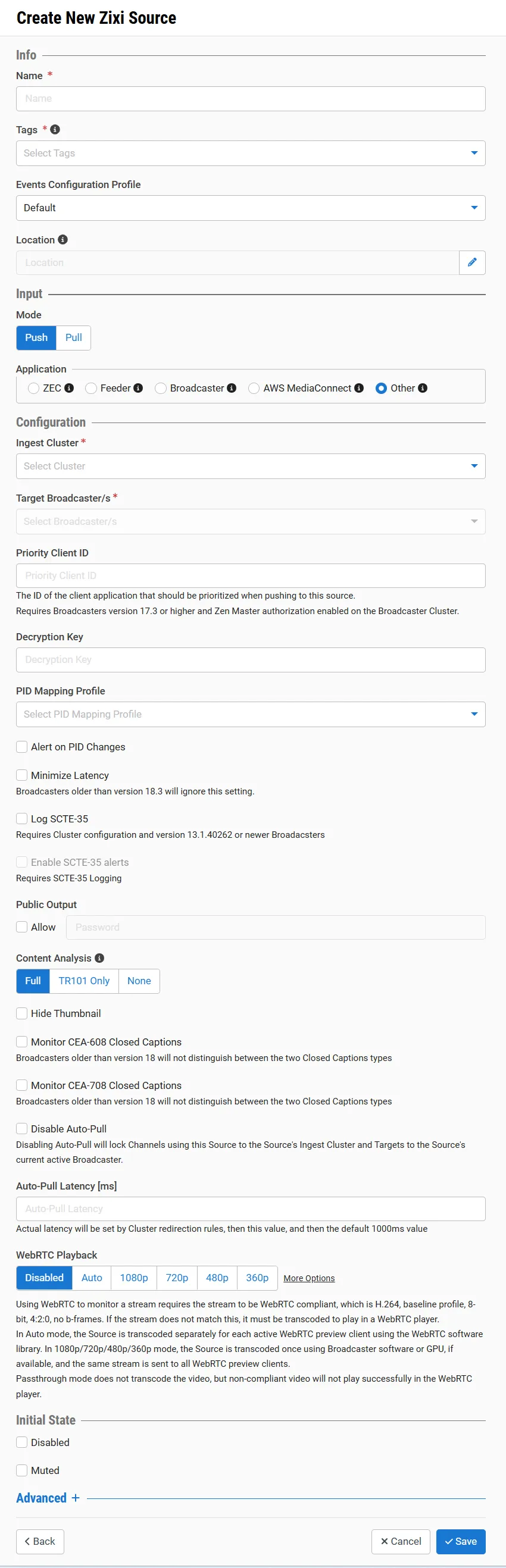

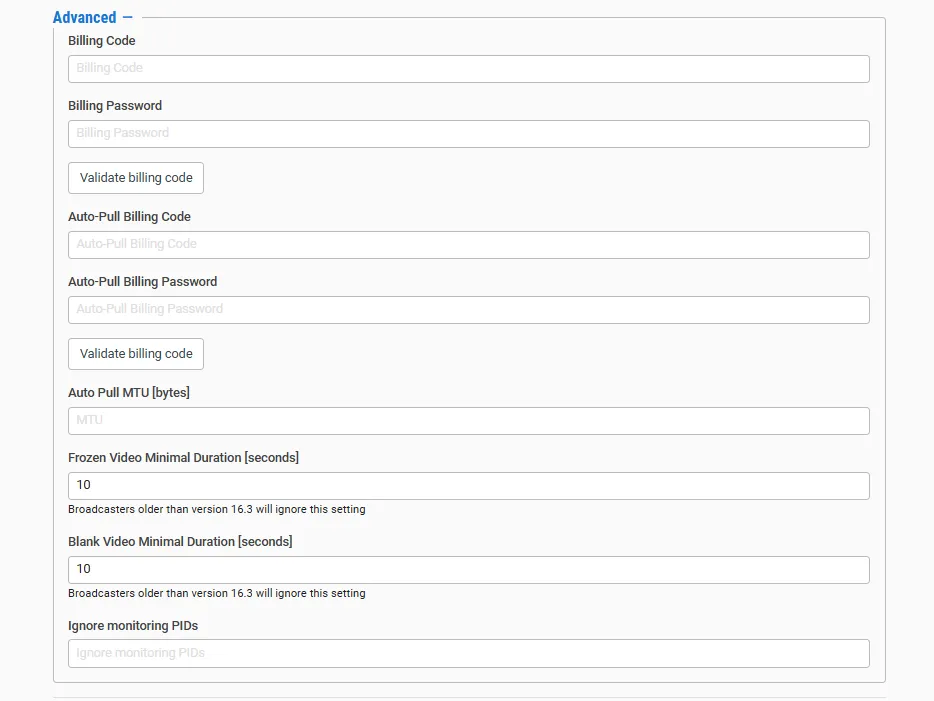

you can configure an input from a zixi enabled device (i e a zixi enabled encoder) to be used as a source in zen master this is done by selecting zixi in the new source menu after configuring the source, you will need to connect the input resource to zen master using the procedure described in section connecting a stream from a zixi enabled device (encoder ui) docid\ bjr4vram5n 7u6j6h393n in case the stream is meant to be password protected, the password itself is configured in zen master, when configuring the source, and then added to the stream on the zixi enabled device, as part of the connecting a stream from a zixi enabled device (encoder ui) docid\ bjr4vram5n 7u6j6h393n process in this case, the zixi enabled device is referred to as the origin other which streams to the ingest broadcaster the following procedure describes how to add a zixi enabled device source in zen master in addition, an explanation of each of the configuration parameters is given in the table below to add a source from a zixi enabled device using this method creates a single source in zen master with pid mapping applied if you would like to maintain a source with the original pids and create an additional source with pid mapping (e g if you want to create several different pid mapped variations), then use the method described in adding a source pid mapping docid\ gockl3upsd8v14ia2an6g to create a new pid mapping profile, see pid mapping profiles docid\ ofvpymhyvq4xqhii3umns in the main navigation, click sources click + add the create new source selection window is displayed create source options click on zixi the create zixi source window opens in the info section, in the name field, type a logical name for the zixi source in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger the source's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the source's ip if you would like to manually set the location of the source (optional), use the following procedure click on the edit icon next to the location field a search box is shown below the location field enter identifying info for the location (e g street address, zip code, coordinates) search results are displayed below the search box as you type click on the desired location the selected location populates the location field in the input section, verify that under mode , push is selected (default), and in application , select the other radio button the fields relevant for creating a source from a zixi enabled device are shown in the configuration section, in the ingest cluster field, select from the drop down list one of the available ingest clusters as the destination for the source in the target broadcaster/s field, select your broadcaster preferences either select a specific broadcaster to be used or specify your preference for using primary vs backup broadcasters, options are prefer primary broadcasters, primary broadcasters only, backup broadcasters only or prefer backup broadcasters for managed clusters, it is not recommended to select a specific broadcaster, as the broadcaster’s availability may not remain stable in the source password field, enter a password that will be used to connect the stream this password will be added to the stream on the zixi enabled device, as part of the connecting a stream from a zixi enabled device (encoder ui) docid\ bjr4vram5n 7u6j6h393n process in the priority client id field, if you have more than one zixi enabled devices (e g , encoders) pushing the stream, you can optionally enter the id of one of these devices and it will receive priority in establishing a connection by default (without this setting), the connection is established by the order of connection, however this setting will overwrite this default behavior and connect the stream coming from the priority device when possible if you would like to apply a pid mapping profile to this source, then in the pid mapping profile field, select the desired profile from the dropdown list using this method creates a single source in zen master with pid mapping applied if you would like to maintain a source with the original pids and create an additional source with pid mapping (e g if you want to create several different pid mapped variations), then use the method described in adding a source pid mapping docid\ gockl3upsd8v14ia2an6g to create a new pid mapping profile, see adding pid mapping profiles docid\ gftcayurpl7dinouyd14z if you would like to generate email notifications whenever a pid change is detected, select the alert on pid changes checkbox select the log scte 35 checkbox if you would like to log scte 35 markers for this stream to log scte 35 markers, scte 35 needs to be enabled both on the ingest cluster and on the source configuration scte 35 logging is only available for v13 1 40262+ broadcasters if log scte 35 was selected, you can choose to receive alerts for scte 35 markers by selecting the enable scte 35 alerts checkbox in the public output field, if you would like to allow access to the stream directly through a supported player, select the allow checkbox if you selected the allow checkbox, then enter a password in the password field to authenticate access to the stream under content analysis select one of the following options full select this option if you would like to enable full content analysis (cqa), including analysis of the stream's audio and video content, including audio levels, audio silence detection, frozen video detection, and more tr101 only select this option to perform tr101 analysis only (without video and audio content analysis) the analysis can be used to check the integrity of the ts and the most important elements of the stream the analysis includes priority 1 and 2 to learn more about tr101 analysis see tr 101 290 technical report none no content analysis is enabled it is generally recommended to enable full content analysis unless it is causing technical problems if content analysis is disabled, the system won't detect errors in the video and audio content of the stream and won't generate warnings for such events if you would like to monitor cea 608/cea 708 closed captions, select the monitor cea 608/cea 708 checkbox monitoring cea 608/cea 708 closed captions requires using a version 14 4 or newer broadcaster if you would like to disable auto pull, select the disable auto pull checkbox disabling auto pull will lock channels using this source to the source's ingest cluster and targets to the source's current active broadcaster this setting only applies to pass through channels if auto pull is enabled, in the auto pull latency \[ms] field, specify the maximum latency for auto pull actions the broadcaster will update the latency as required, by using the maximal defined latency and then reducing the latency gradually (default 1000 ms) if the source is using aes for encryption, in the decryption key field, enter the static key that was used for encryption in the webrtc playback section, select the desired playback method webrtc enables you to monitor the stream via web browsers and mobile applications with real time communication (rtc) webrtc needs to be activated independently for each source in zen master (by default it is disabled) select one of the following options disabled users will not be able to view this source using webrtc (default) pass through passes the stream through to webrtc without transcoding this option can only be used if the input stream is already in a webrtc compliant format (video h 264 codec with baseline or main profile and no b frames, audio opus codec) auto zen master automatically transcodes the stream using the optimal profile for each specific user in this option zixi broadcaster will decode the video, transforming it into raw frames, which will be passed to the webrtc library, where it will be re encoded for each individual user best quality however, if monitored by multiple users this can consume extensive resources 1080p/720p/480p/360p zen master transcodes the stream to a webrtc compliant profile with the specified resolution the transcoding is done by zixi broadcaster's transcoder this method requires a zixi broadcaster with x264 or nvidia for transcoding this method allows many users to monitor the stream without encoding separately for each individual user, which saves cpu capacity since there is only one stream version, it is recommended to encode to a low resolution and low bitrate so that the stream will be viewable by all users monitoring the stream in the initial state section, select the disabled checkbox if you would like to disable this source upon initial configuration select the muted checkbox if you would like to disable error/recovery notifications for this source upon initial configuration you can enable/unmute the source at any time if you would like to adjust the advanced settings, click advanced the advanced settings fields are displayed if you would like to track usage for this source, enter your billing code details see billing codes docid\ lalxj n928tegcpdpbirj in the auto pull mtu field, specify the maximum transmission unit (largest data packet that a network connected device will accept) in bytes for the auto pull to set the detection of frozen video, in the frozen video minimal duration field, specify the default minimal duration in seconds of frozen video after which the broadcaster will trigger a frozen video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher to set the detection of blank video, in the blank video minimal duration field, specify the default minimal duration in seconds of blank video after which the broadcaster will trigger a blank video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher click save zixi enabled device source configuration parameters table parameter description info name specify a name for the zixi source in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting an tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger location (optional) the source's location is used to represent it in the proper position in the map display (see maps docid\ sfzm6jvorvuigo7x0dnue ) by default, the location is determined automatically based on the source's ip enter identifying info for the location (e g street address, zip code, coordinates) and select the desired location from the suggestions that are shown input mode to create a source from a zixi enabled device, verify that push is selected (default) application to create a source from a zixi enabled device, select the other radio button configuration ingest cluster select from the drop down list one of the available ingest clusters as the destination for the source target broadcaster/s specify which broadcaster/s within the cluster on which zen master can deploy the source either select a specific broadcaster to be used or specify your preference for using primary vs backup broadcasters options are prefer primary broadcasters, primary broadcasters only , backup broadcasters only or prefer backup broadcasters note for managed clusters, it is not recommended to select a specific broadcaster, as the broadcaster’s availability may not remain stable priority client id the id of the client application that should be prioritized when pushing to this source requires broadcasters version 17 3 or higher and zen master authorization enabled on the broadcaster cluster pid mapping (optional) if you would like to apply a pid mapping profile to this source, then select the desired profile from the dropdown list to create a new pid mapping profile, see adding pid mapping profiles docid\ gftcayurpl7dinouyd14z note using this method creates a single source in zen master with pid mapping applied if you would like to maintain a source with the original pids and create an additional source with pid mapping (e g if you want to create several different pid mapped variations), then use the method described in adding a source pid mapping docid\ gockl3upsd8v14ia2an6g alert on pid changes if you would like to generate email notifications whenever a pid change is detected, select this checkbox log scte 35 select this checkbox if you would like to log scte 35 markers for this stream note to log scte 35 markers, scte 35 needs to be enabled both on the ingest cluster and in the source configuration note scte 35 logging is only available for v13 1 40262+ broadcasters enable scte 35 alerts (for log scte 35) if you would like to receive alerts for scte 35 markers, select this checkbox public output if you would like to allow access to the stream directly through a supported player, select the allow checkbox password (for public output) if you selected allow in the public output field, specify a password in this field to authenticate access to the stream content analysis select one of the following options full select this option if you would like to enable full content analysis (cqa), including analysis of the stream's audio and video content, including audio levels, audio silence detection, frozen video detection, and more tr101 only select this option to perform tr101 analysis only (without video and audio content analysis) the analysis can be used to check the integrity of the ts and the most important elements of the stream the analysis includes priority 1 and 2 to learn more about tr101 analysis see tr 101 290 technical report none no content analysis is enabled note it is generally recommended to enable full content analysis unless it is causing technical problems if content analysis is disabled, the system won't detect errors in the video and audio content of the stream and won't generate warnings for such events hide thumbnail disables the source thumbnail from appearing in the sources list and other places disabling thumbnail may improve system performance monitor cea 608/cea 708 closed captions if you would like to monitor cea 608/cea 708 closed captions, select this checkbox note monitoring cea 608/cea 708 closed captions requires using a version 14 4 or newer broadcaster disable auto pull if you would like to disable auto pull, select this checkbox note disabling auto pull will lock channels using this source to the source's ingest cluster and targets to the source's current active broadcaster this setting only applies to pass through channels auto pull latency \[ms] specify the maximum latency for auto pull actions the broadcaster will update the latency as required, by using the maximal defined latency and then reducing the latency gradually (default 1000 ms) decryption key if the source is using aes encryption, enter the static key that was used for encryption webrtc playback select the desired playback method note webrtc enables you to monitor the stream via web browsers and mobile applications with real time communication (rtc) webrtc needs to be activated independently for each source in zen master (by default it is disabled) select one of the following options disabled users will not be able to view this source using webrtc (default) pass through passes the stream through to webrtc without transcoding this option can only be used if the input stream is already in a webrtc compliant format (video h 264 codec with baseline or main profile and no b frames, audio opus codec) auto zen master automatically transcodes the stream using the optimal profile for each specific user in this option zixi broadcaster will decode the video, transforming it into raw frames, which will be passed to the webrtc library, where it will be re encoded for each individual user note best quality however, if monitored by multiple users this can consume extensive resources 1080p/720p/480p/360p zen master transcodes the stream to a webrtc compliant profile with the specified resolution the transcoding is done by zixi broadcaster's transcoder note this method requires a zixi broadcaster with x264 or nvidia for transcoding this method allows many users to monitor the stream without encoding separately for each individual user, which saves cpu capacity since there is only one stream resolution, it is recommended to encode to a low resolution and low bitrate so that the stream will be viewable by all users monitoring the stream initial state disabled select this checkbox if you would like to disable this source upon initial configuration muted select this checkbox if you would like to disable error/recover notifications for this source upon initial configuration advanced billing codes if you would like to track usage for this source, enter your billing code details, see billing codes docid\ lalxj n928tegcpdpbirj (supported for broadcasters v14 8+) billing password enter the password that corresponds to this billing code auto pull billing code if you would like to track usage for this source when using auto pull connections, enter the billing code that corresponds to this stream the relevant billing can be obtained from the organization that received the billing code from zixi auto pull billing password enter the password that corresponds to this auto pull billing code mtu/auto pull mtu {bytes} specify the maximum transmission unit (largest data packet that a network connected device will accept) in bytes for the auto pull frozen video minimal duration {seconds} specify the default minimal duration in seconds of frozen video after which the broadcaster will trigger a frozen video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher for existing sources, you may need to restart the source blank video minimal duration {seconds} specify the default minimal duration in seconds of blank video after which the broadcaster will trigger a blank video alert default 10 seconds this setting is supported for broadcaster version 16 3 and higher for existing sources, you may need to restart the source
