ZEN Master is displaying "Error - Error requesting Azure Authorization token"

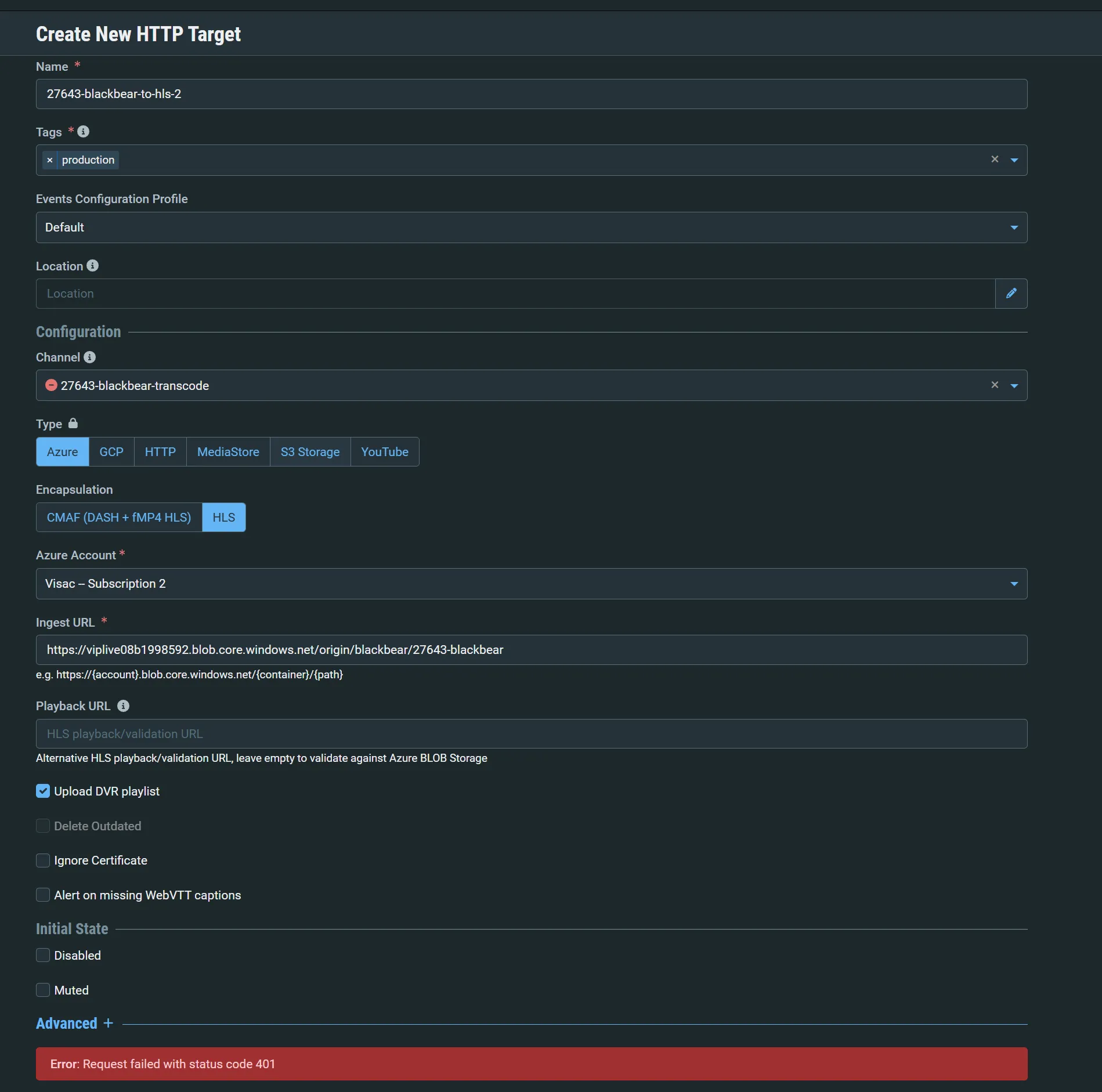

You may be experiencing an error "Error - Request failed with status code 401" also when attempting to create new sources/targets/broadcasters within ZEN Master.

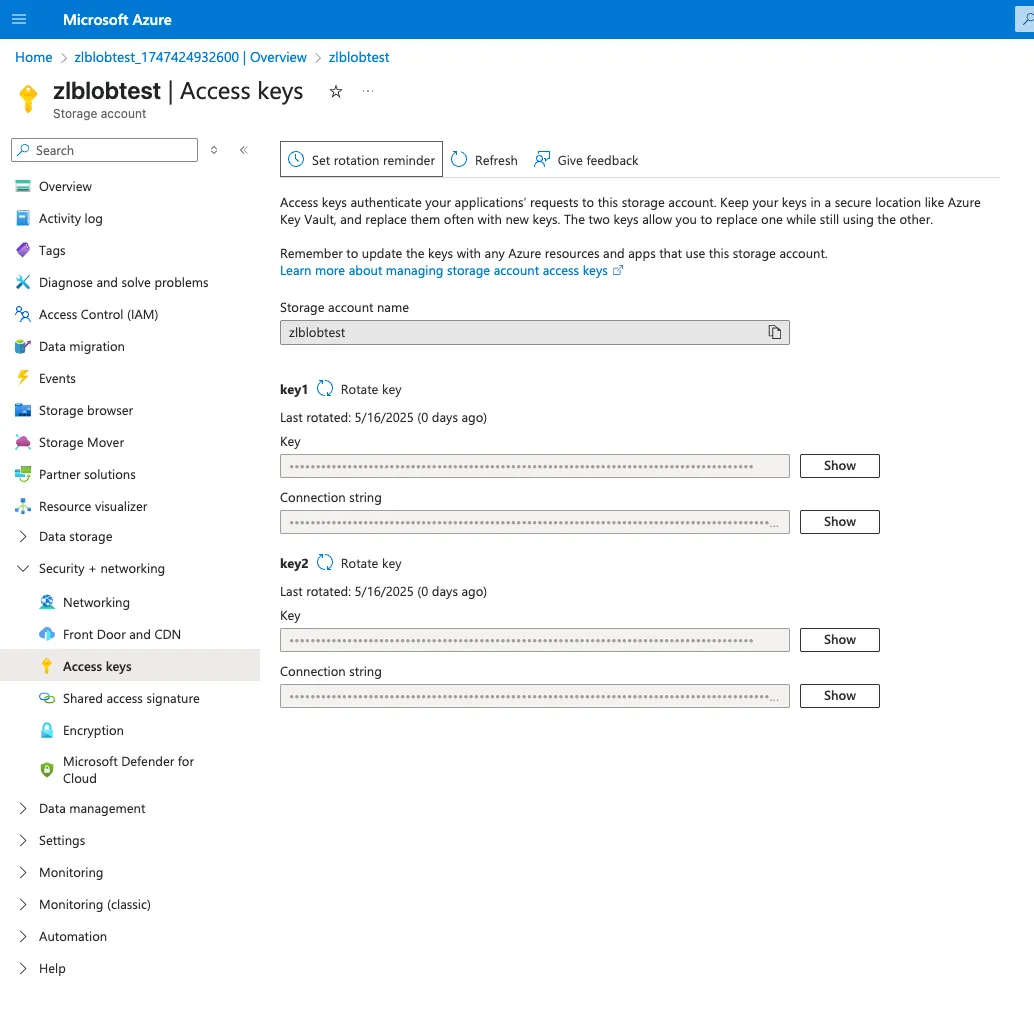

Azure credentials for the application that is configured to communicate with ZEN Master have expired.

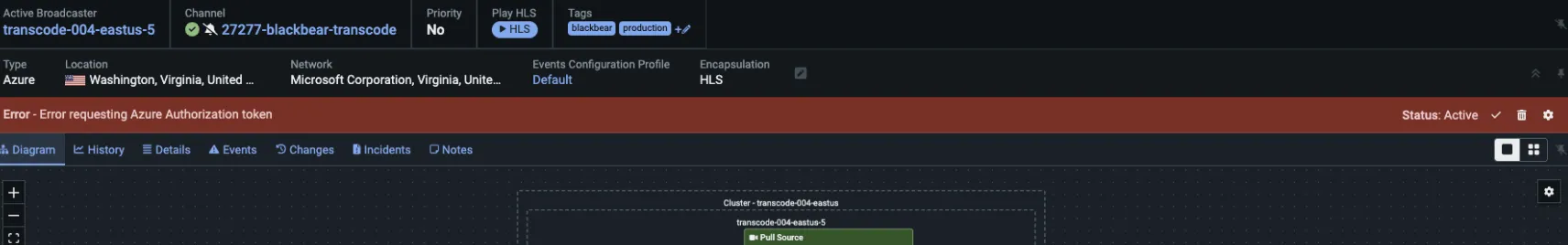

Example of error when trying to create new elements in ZEN Master:

Certificate Error

Error requesting Azure Authorization Token
