ZEC Threads

1min

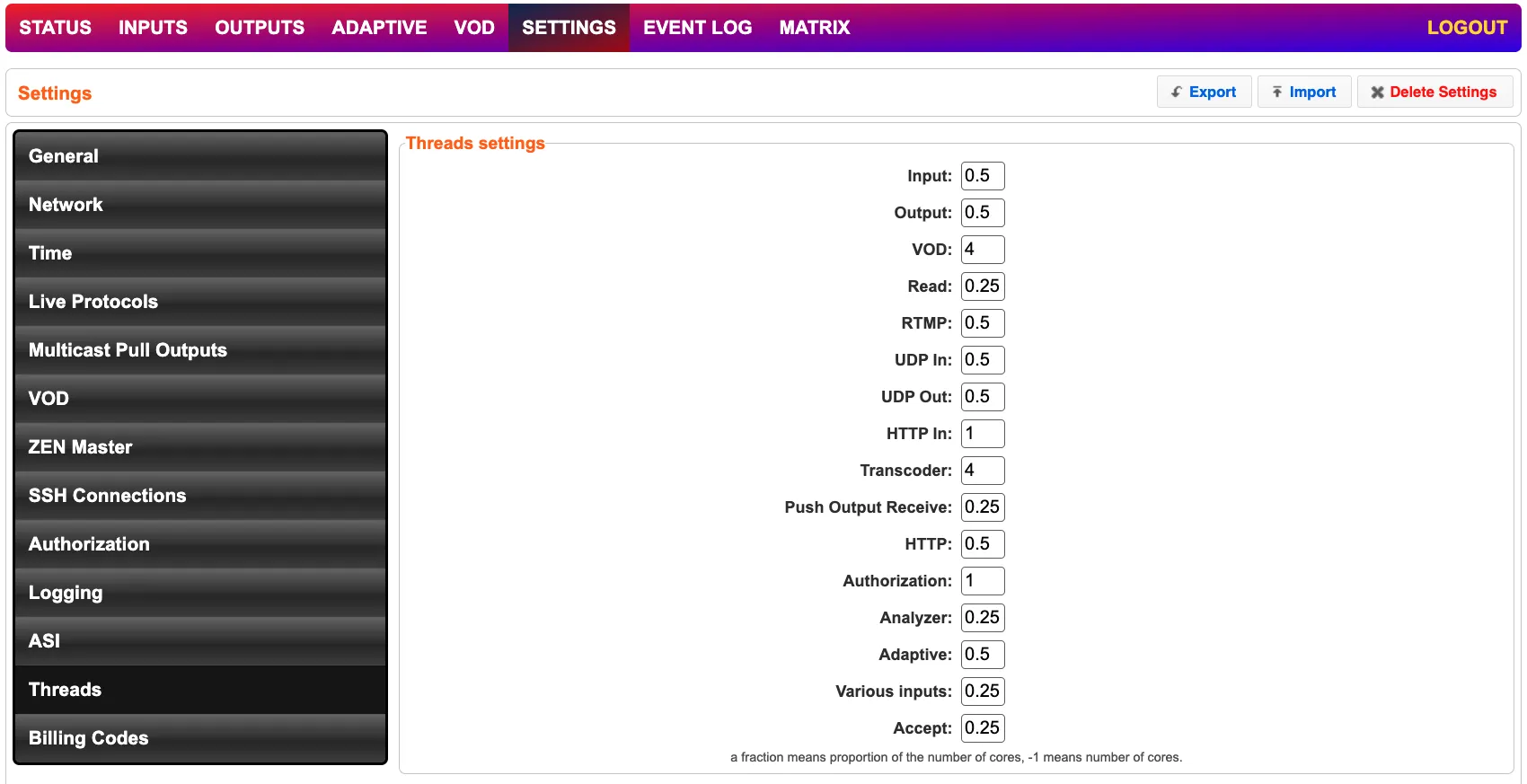

The Threads screen enables the configuration of the maximal number of concurrent CPU threads allowed for each component/service. Enter -1 to limit the threads according to the number of cores.
﻿
Parameter
Description
Input
Maximal number of threads for all input streams.
Output
Maximal number of threads for all output streams.
VOD
Maximal number of threads for all VOD streams.
Read
Maximal number of threads to handle Zixi Push inputs. It is recommended to adjust this value to have 1 read core per 500Mbps of push input traffic.
Pool
Maximal number of threads for managing buffer pool.
RTMP
Maximal number of threads for RTMP streams.
UDP In
Maximal number of threads for UDP input streams.
UDP Out
Maximal number of threads for Curl
HTTP In
Maximal number of threads for TS over HTTP input stream
Transcoder
Maximal number of threads for transcoding.
Push Output Receive
Maximal number of threads used for Zixi Push output connections.
HTTP
Maximal number of threads for the HTTP server.
Authorization
Maximal number of threads for the authorization component.
Analyzer
Maximal number of threads for the analyzer component.
Adaptive
Maximal number of threads used to segment adaptive groups.
Various Inputs
Maximal number of threads used for all other types of inputs/outputs (e.g., HLS input, TS, TCP input, SRT inputs, ASI inputs, SRT outputs, file over http input....).
Accept
Maximal number of threads used to accept Zixi Pull outputs.
﻿

Parameter	Description
Input	Maximal number of threads for all input streams.
Output	Maximal number of threads for all output streams.
VOD	Maximal number of threads for all VOD streams.
Read	Maximal number of threads to handle Zixi Push inputs. It is recommended to adjust this value to have 1 read core per 500Mbps of push input traffic.
Pool	Maximal number of threads for managing buffer pool.
RTMP	Maximal number of threads for RTMP streams.
UDP In	Maximal number of threads for UDP input streams.
UDP Out	Maximal number of threads for Curl
HTTP In	Maximal number of threads for TS over HTTP input stream
Transcoder	Maximal number of threads for transcoding.
Push Output Receive	Maximal number of threads used for Zixi Push output connections.
HTTP	Maximal number of threads for the HTTP server.
Authorization	Maximal number of threads for the authorization component.
Analyzer	Maximal number of threads for the analyzer component.
Adaptive	Maximal number of threads used to segment adaptive groups.
Various Inputs	Maximal number of threads used for all other types of inputs/outputs (e.g., HLS input, TS, TCP input, SRT inputs, ASI inputs, SRT outputs, file over http input....).
Accept	Maximal number of threads used to accept Zixi Pull outputs.
