ZEC Adding UDP Outputs

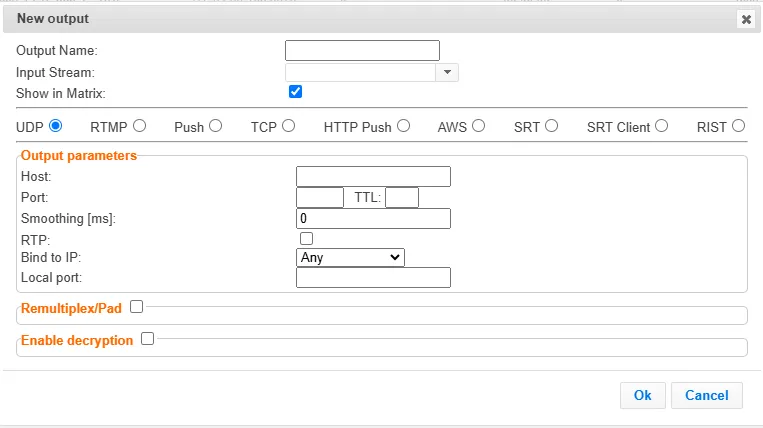

this enables the zec to send a udp stream the udp stream is not protected by the zixi protocol the udp streams can be one of the following types udp – plain udp rtp – real time transport protocol rtp + smpte 2022 fec smpte 2022 standard with forward error correction to create a udp output in the zec outputs page, click +new output the new output window is displayed type in the unique identifier for this output in the output name select an input stream to be made available on this output from the drop down list select the show in matrix check box to display this stream in the matrix (see zec using the matrix docid\ skrtx3wdiaaoohem3 s r ) default selected select udp specify the output parameters (see output stream parameters table below) if you want to remux the stream to cbr (used for professional irds) in order to avoid bandwidth waste or add null packets and adjust the stream clock (pcr) in order to make the stream cbr, select remultiplex/pad and configure the respective parameters (see output stream parameters table) you can decrypt an encrypted stream as it enters the zec to decrypt a stream, select the decrypt stream checkbox and fill in the parameters as describes in the output stream parameter table below for more information, see decrypting an output stream in zec docid 9ngu36geigg56k4toivug if you want to enable the zec decoder to send audio back to the zec encoder, select the ifb/talkback checkbox click ok the new udp output with its settings is created and now appears on the outputs screen output stream parameters table parameter description output parameters host specify the destination ip address or url port specify the target udp port ttl specify the time to live (ttl) used mainly to limit the range (or “scope”) of a multicast transmission leaving it as blank uses the default value specified by the operating system smoothing \[mms] enables transmission of the output at the correct rate required when the receiving device is sensitive and can’t lock on to the stream (in such a case, the recommended latency is 100 1000 ms) rtp enables use of the real time transport protocol smpte 2022 fec disables the fec or specifies the type of fec matrix to d1/ d2 note this setting can be modified without interrupting an existing stream in the smpte 2022 fec standard, 1 d and 2 d parity codes are systematic fec codes of decent complexity that provide protection against bursty or random losses to enable smpte 2022 fec (forward error correction) select one of the following parity options from the drop down menu 1d (single dimension fec) smpte 2022 1d can fix a problem in one packet per row this means that the number of rows specified should consider the packet loss rate the shorter the row, the more error resilience can be achieved on the expense of bitrate level however, longer rows increase the delay that the fec will add it is recommended to select this option when the packet loss is sporadic the stream will occupy the source port and two ports above it (e g if the source port is 8988, it will occupy 8990) 2d smpte 2022 2d uses a table of packets, which includes rows and columns this option is more error resilient, but it increases the delay by (row column) packets and increases the bitrate with r+c packets per each table of r c packets it is recommended to select this option when packet loss is bursty the stream it will occupy four ports above (e g if the source port is 8988, it will occupy 8992) bind to ip select from the drop down list the local ip address to be used for this output, or select any to enable any ip to be used local port specify from which local port to source the stream, if desired (instead of randomly chosen by the operating system) remultiplex/pad select this checkbox to enable remuxing from vbr mpeg ts to mpeg ts cbr (used for professional irds) or padding with null packets mode select one of the following pad – adds null packets and adjusts the stream clock (pcr) in order to make the stream cbr remultiplex performs demux >mux and rebuilds the stream according to the below parameters target bitrate \[kbps] specify the cbr bitrate to target for a remuxed stream pcr interval \[ms] specify the frequency at which program clock reference is inserted into the outputs transport stream in milliseconds (default 90) buffer size \[ms] specify the size of the buffer that will be used for the remixing a larger buffer increases the quality, but also increases latency no null packets select this option to re multiplex the stream to cbr but remove the null packets in order to maintain low bitrate enable decryption select this checkbox to decrypt an encrypted stream decryption type if the stream has been encrypted, you can decrypt through the output by selecting this checkbox and specifying the type of ecryption that was used select automatic to decrypt a stream that has been encrypted using automatic encryption only if the stream has not been encrypted, select none (default) important notice if the stream has been encrypted you must decrypt it in the output decryption key if the decryption type includes a key, enter the key to decrypt the stream during output
