Adding Pull Outputs

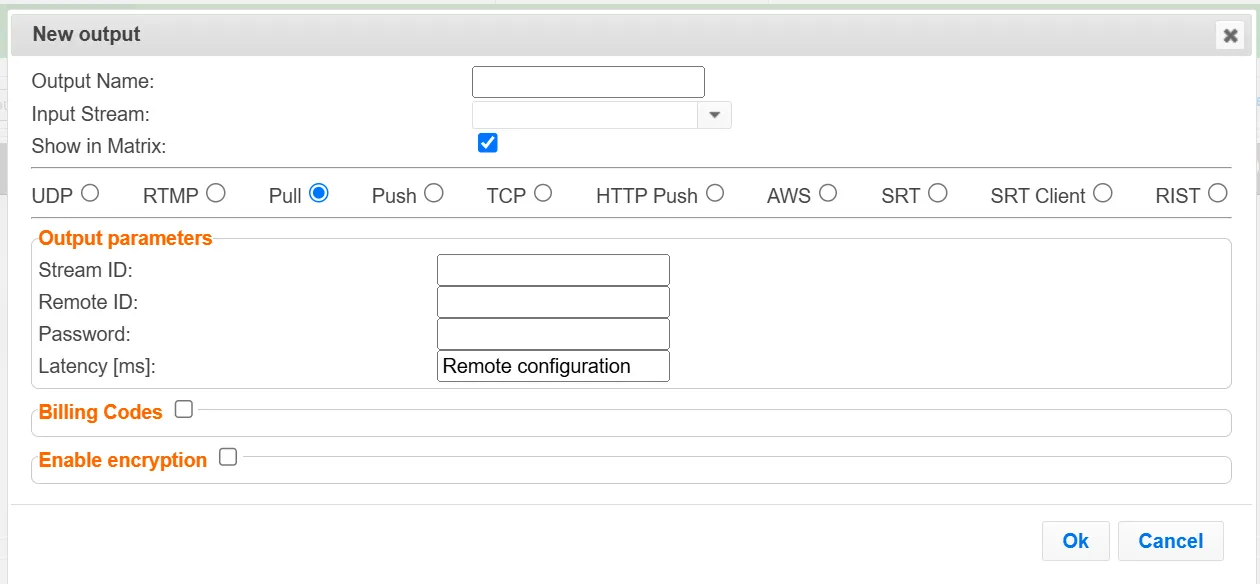

to create a pull output in the zixi broadcaster outputs page, click new output the new output window is displayed type the unique identifier for this output in the output name select an input stream to be made available on this output from the drop down list select the show in matrix check box to display this stream in the matrix (see using the matrix docid\ vfvadnnw7sfjqqbnklzxp ) default selected select pull specify the output parameters (see output stream parameters table below) if you want to specify billing codes to identify and differentiate traffic on a zixi broadcaster for billing purposes, select this checkbox (see output stream parameters table below) click ok the new pull output with its settings is created and now appears on the screen output stream parameters table parameter description output parameters stream id specify the unique stream id that the remote zixi receiver/broadcaster expects (recommended – identical to ‘input stream’) remote id specify the zixi receiver id (shown in the zixi receiver/broadcaster status window) that will be allowed to pull the stream password specify a string that can be used to authenticate that the zixi receiver is authorized to pull this stream (optional) latency \[ms] specify the buffer size that zixi broadcaster will be able to maintain for error correction for example, 6000 milliseconds would ensure that the stream is protected for six seconds of errors in the network default remote configuration b remote configuration – use the latency configured in the zixi receiver/broadcaster otherwise use a value to override the value configured in the zixi receiver/broadcaster enable encryption select this checkbox to encrypt the output stream encryption type (for encryption enabled) specify the type of encryption (aes 128/192/256) click generate to generate an encryption key or enter another encryption key the error recovery techniques implemented in the zixi protocol pull streams are protected under u s patent 11,546,615
