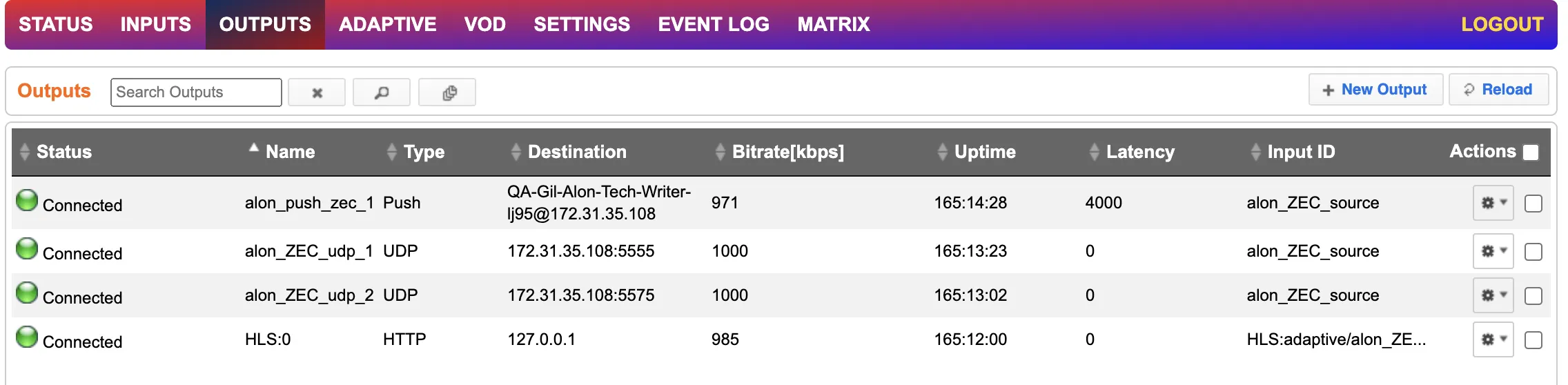

The Outputs screen displays all the output streams that have been created.

Hovering the cursor on the status indicator of a stream shows the stream configuration information and basic utilization statistics, where applicable.

Any of the columns in the following table can be sorted in ascending/descending order by clicking on its heading. The

 text box in the upper left-hand side of the screen can be used to search for a specific input stream by entering the desired Stream ID.
