Viewing Existing Input Streams

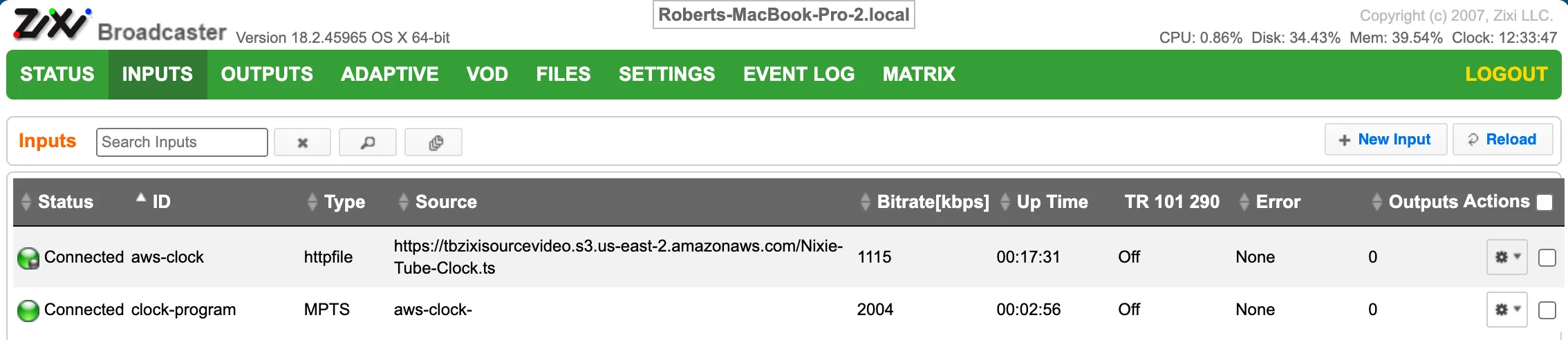

the inputs screen displays all the input streams that have been created at the bottom of the screen you can also view accumulative utilization statistics for any connected streams selected hovering the cursor on the status indicator of a stream will provide you with the stream configuration information and basic utilization statistics, where applicable inputs list any of the columns in the following table can be sorted in ascending/descending order by clicking on its heading the search text box in the upper left hand side of the screen can be used to search for a specific input stream by entering the desired stream id field description actions provides access to various actions to be performed on this input stream (see broadcaster actions on input streams docid\ rwqvwx7o1tpp2vv4cujnx ) bitrate \[kbps] displays bitrate of the connected input stream error displays connection and transmission errors id displays the unique id of the stream, as defined in the zixi broadcaster outputs displays the amount of outputs currently configured for this input stream source displays the source host and port number status displays the status of input stream the following colored indicators are displayed green = connected yellow = connecting red = disconnected with an error condition blue = offline with no connection attempts grey = offline and stopped tr 101 209 displays if the analyzer is active and the streams that are being analyzed according to the tr101 protocol p1 and p2 are error priorities type displays the type of input stream uptime displays the amount of time the stream has been active
