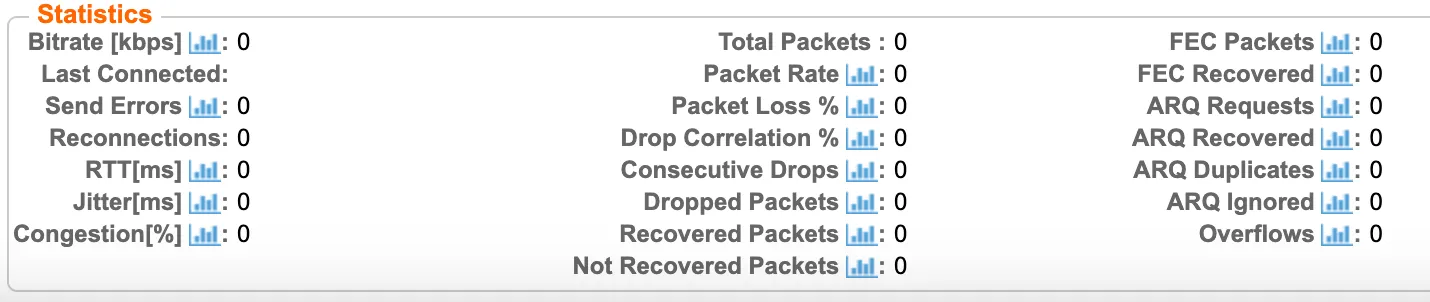

The Stats pane on the bottom of the page shows data about the activity of the selected stream.

Click the graph icon next to a parameter to show the graph of historical data for the specified parameter.

Stats Pane
