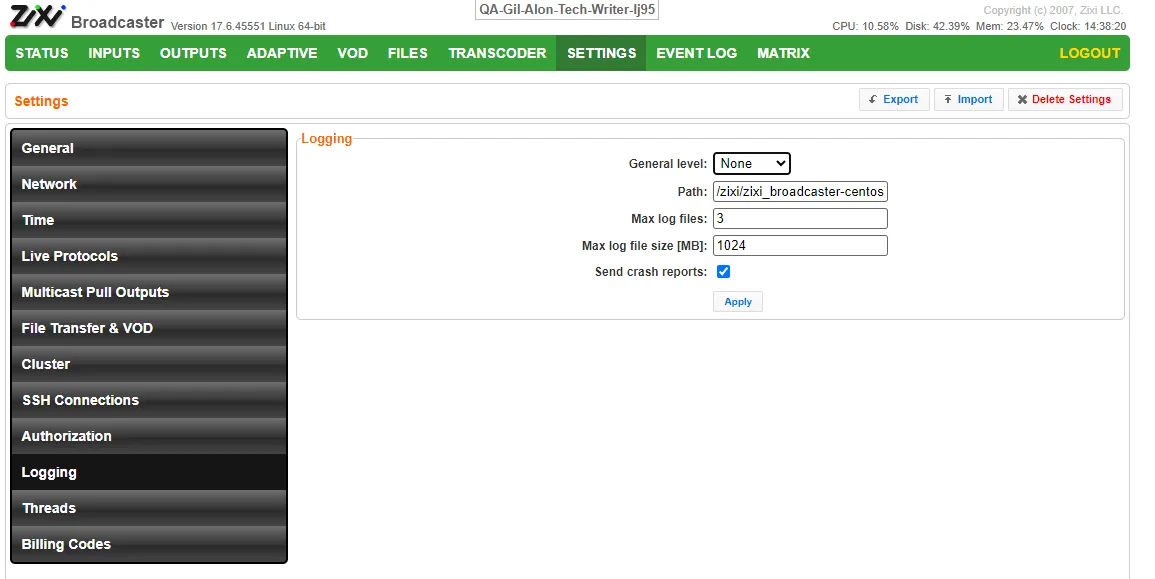

The Logging screen defines the logs location and preferences for debugging purposes.

Note: Logs, particularly debug level logs, can grow large in size very quickly and take harddrive space. We recommend only enabling these as requested by Support.

The fields in the table below are optional and available only in

To enter Advanced Mode add the URL parameter

 to the Zixi Broadcaster URL in your browser and press Enter/Return to reload the page:

Note the Advanced Mode settings are generally intended for advanced users and special cases. If you do not understand the settings, you should probably accept the default values.

Details Logging modes for specific categories as listed below. This is usually used internally by Zixi Engineers for debugging purposes.
