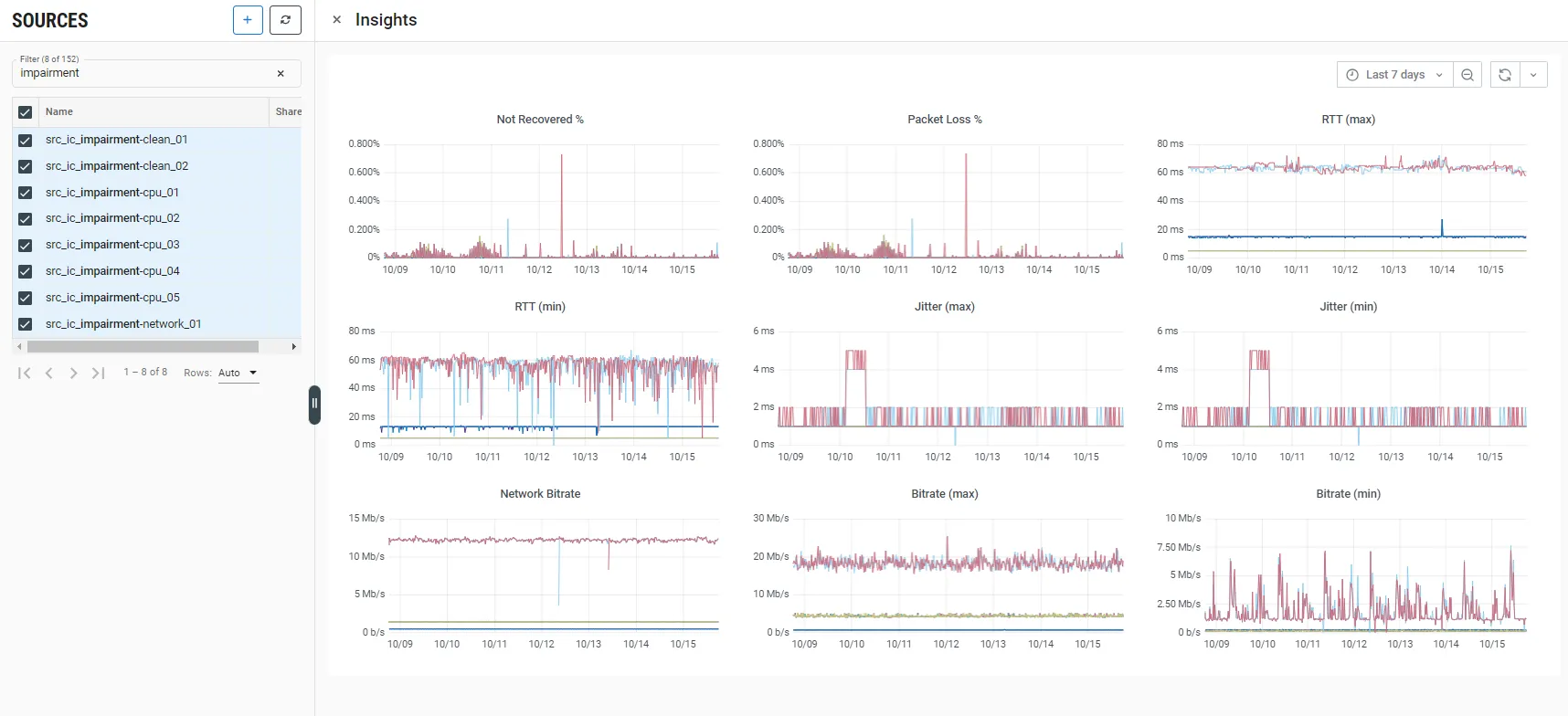

One of the great benefits of the Insights feature is being able to view the graphs of multiple resources of the same type at once on the same graph, allowing seamless comparison and easy identification of outliers. For example, selecting multiple Sources and viewing the Packet Loss % graph can reveal that multiple sources are experiencing high packet loss levels at the same period of time. In this manner you can easily understand that there is a problem that occurred at the same time, which is shared across multiple resources (and not just a local problem with one source) and at the same time you can view that other Sources were not affected by the issue.

Targets Graphs

Viewing the Graphs for Multiple Resources
