ZEN Master User Guide
Broadcasters
Viewing Existing Clusters
5 min

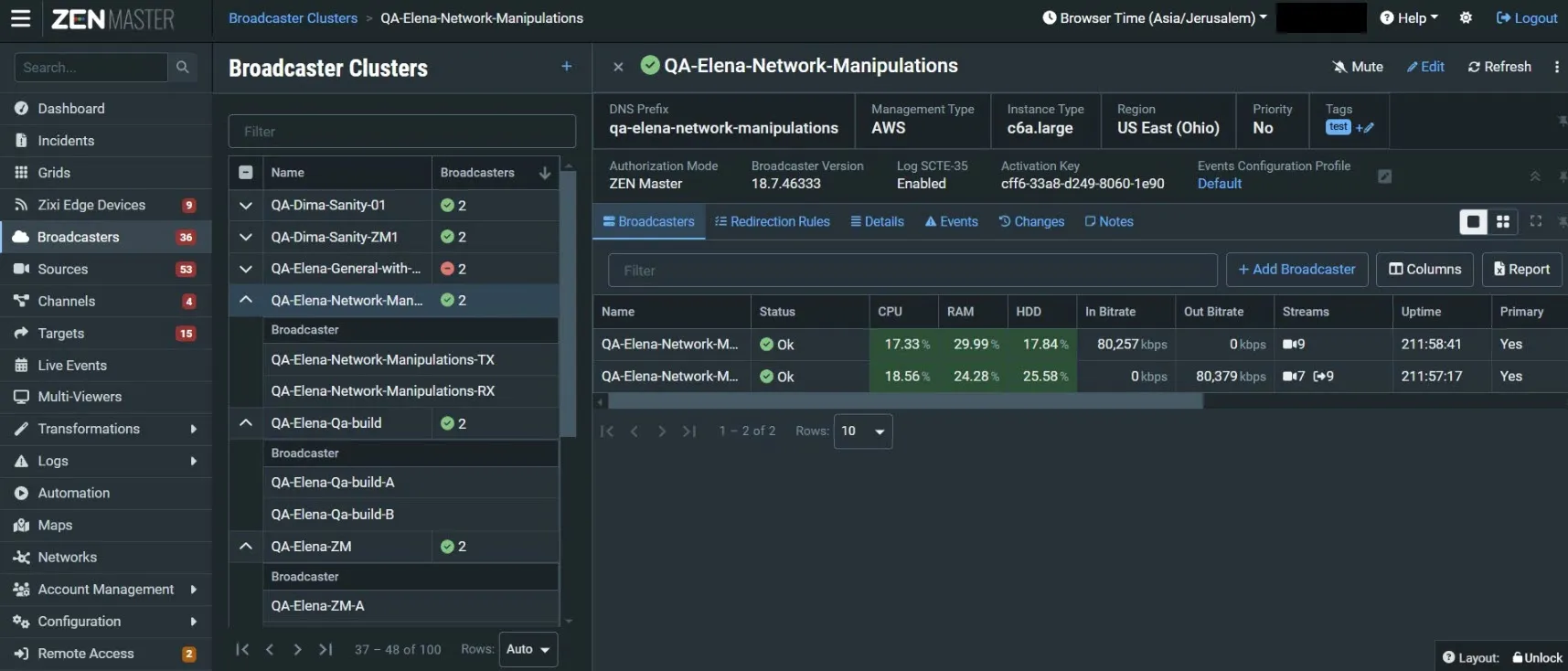

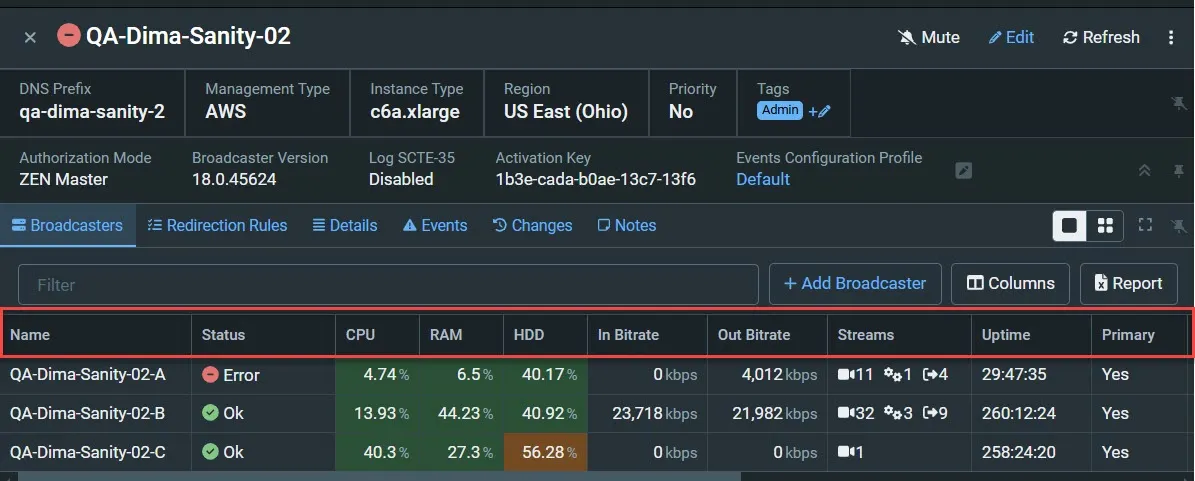

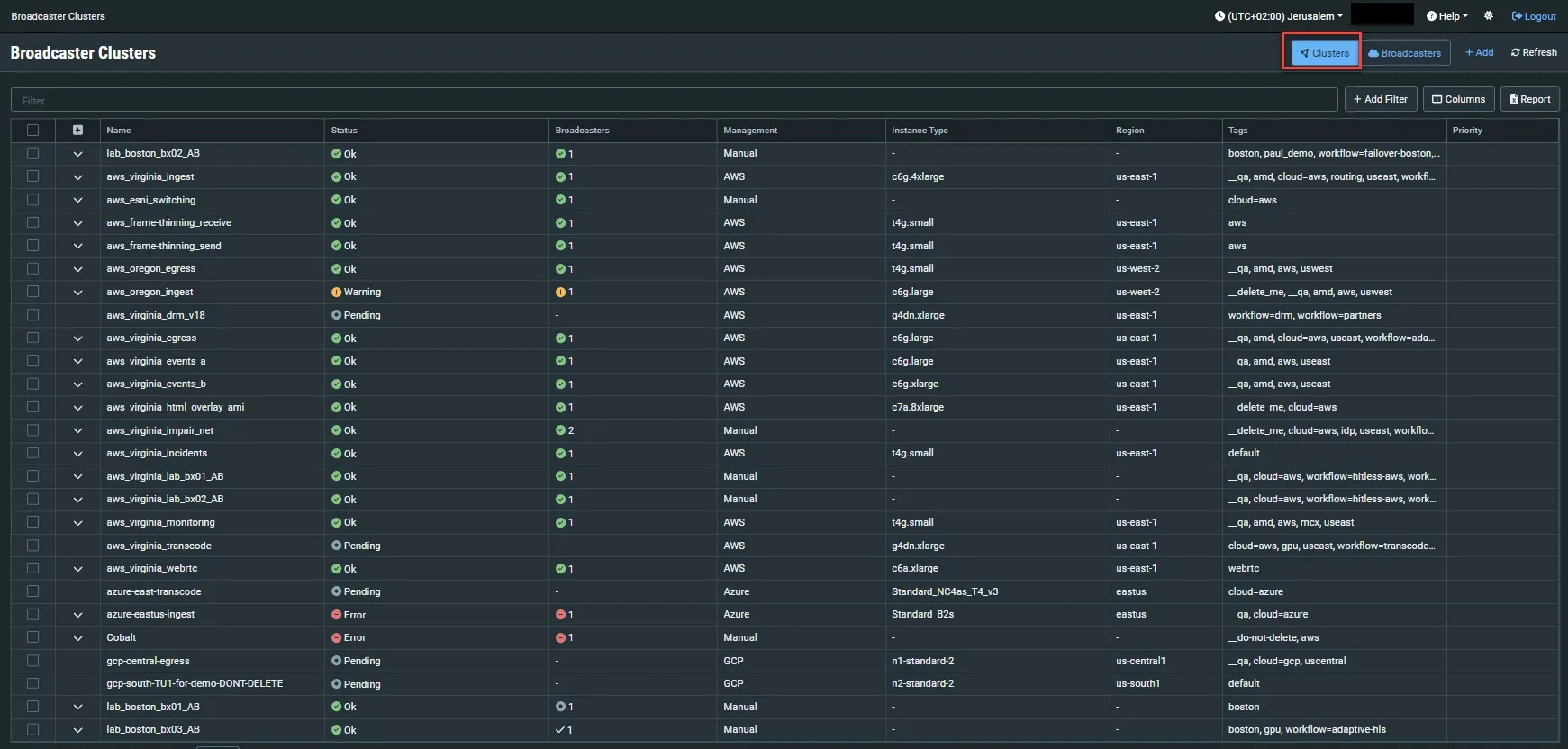

to view the broadcaster cluster list, make sure that the clusters view is selected clusters list the broadcaster cluster screen displays all existing clusters, and information about the clusters' status and configuration broadcaster clusters that include configured broadcasters in them are marked with a drop down icon clicking the drop down icon reveals the underlying broadcasters it is possible to add more show/hide columns docid\ youqeti1 pioyyvkaasxp to the list if you want to view resources that were marked as priority or with certain tags , add the priority or tags column and sort by them when a cluster is selected, the list pane is minimized and detailed info about the selected cluster is shown on the right side of the screen the right side of the screen includes an info pane (at the top), which displays basic information and the various tabs for more information, see info pages docid 6tlis3dzx2ovwgel0k3il the info can be shown in tab view or widgets views for more information about widgets, see using widgets docid\ dzgxobiffloncansfwy4d the screen's layout can be customized for more information, see customizing the info panel (layout) docid 3jrhhkacbegqy tt djvg and collapsing and restoring the details and resources panes docid\ zgbklrmhmssu6c7uj q 5 the info panel includes the following details parameter description dns prefix the first label in the dns name of the domain click the copy icon to copy the details events configuration profile the events configuration profile that was assigned to this cluster events profiles are used to customize the way that events are handled in zen master click to view the event configuration tags the tags that are associated with this cluster tags are managed by administrators via configuration > tags and assigned to non admin users via roles click to edit authorization mode the method used to verify authorization to access the broadcaster cluster possible values are zen, external server, global password, free for all and manual management type the management type manual, aws, azure or gcp region the cloud service region instance type the name of the instance type on which the cluster is running on click the copy icon to copy the details broadcaster version the software version of the broadcaster click the copy icon to copy the details log scte 35 when enabled, scte 35 events are logged, and scte 35 notifications are sent requires version 13 1 40262 or newer broadcasters api credentials the username and password for accessing the apis click show to display or copy to copy the credential activation key the cluster’s activation key the following tabs are displayed in the right pane broadcasters – shows a list of the broadcasters that are related to this cluster and data about the broadcasters you can also add or delete broadcasters in this tab redirection rules – shows a list redirection rules, which are routing rules for pull requests from clusters or cidr ip ranges the rules can be applied to the client end point cluster, or ip cidr range, from where the pull request is initiated to learn more about redirection rules, see creating a new redirection rule docid\ nqc0lm3ylaydgvzssjpjx details – shows configuration details of the cluster events – shows all events related to this cluster that have been generated by the system, such as connections, errors, warnings and disconnections to learn about the data that is displayed in the events tab see events docid\ bgowcwcc5rmvqdkmlbttq changes displays the history of changes that were made to the object configuration to learn more about changes tracking, see change tracking docid\ hc kmarjxkviaz69v6ivv notes – free form text can be added with pertinent information about this cluster the main display (before selecting a specific cluster) includes the following data for each broadcaster cluster parameter description name the name of the cluster as configured in zen master status the connection status of the broadcaster cluster possible values green (ok) – none of the broadcasters are in error state red (error) – all broadcasters are in error state orange (warning) at least one of the broadcasters is in warning state the 🔕 icon next to a broadcaster cluster indicates that the broadcaster cluster is muted, disabling notifications for error/recovery events management the type of management possible types are manual – management is done manually by adding specific zixi broadcaster instances (see adding a broadcaster cluster docid\ hvuad4qveufojnjhj1gsw – adding a broadcaster to a manual cluster docid\ xyscyso498ly77zjqr 51 ) aws – the cluster is managed by zen master in your aws cloud service (see adding a broadcaster cluster managed docid 6slx4td zkr2xfho8qz6 ) azure – the cluster is managed by zen master in your azure cloud service (see adding a broadcaster cluster managed docid 6slx4td zkr2xfho8qz6 ) gcp – the cluster is managed by zen master in your gcp cloud service (see adding a broadcaster cluster managed docid 6slx4td zkr2xfho8qz6 ) broadcasters the number of related zixi broadcasters and their connection status green – ok (i e connected) red – error state gray – pending/disabled orange warning region cloud service region instance type (for managed clusters) the instance type the cloud service account is using it is possible to add more show/hide columns docid\ youqeti1 pioyyvkaasxp to the list if you want to view resources that were marked as priority or with certain tags , add the priority or tags column and sort by them when one of the clusters is selected, the details of that cluster, divided into tabs, appears at the right side of the screen parameter description broadcasters tab view details about broadcasters in the cluster add broadcasters manually; edit, disable and delete existing broadcasters the broadcasters can be viewed in grid or table display name the name of the zixi broadcaster status the connection status of the zixi broadcaster green – ok red – error state gray – pending/disabled orange warning the wrench icon indicates that maintenance mode is turned on, which prevents new streams from being assigned to this broadcaster cpu the percentage of cpu utilization on the zixi broadcaster machine ram the percentage of ram utilization on the zixi broadcaster machine hdd the percentage of hard disk utilization on the zixi broadcaster machine in bitrate the inbound bitrate in kbps out bitrate the outbound bitrate in kbps streams the total number inputs, outputs and adaptive groups currently active on the broadcaster uptime the time period that the zixi broadcaster has been online primary yes the broadcaster is configured as "primary" no the broadcaster is configured as "backup" public ip the ip address of the broadcaster version the software version of the zixi broadcaster agentz indicates whether agentz has been installed for this broadcaster agent z is a sidecar tool that sits on a zixi broadcaster, it acquires the system health data and other statistics locally and pushes it to zen master by enabling this option, zen master will automatically install agentz on any existing and future broadcasters connected to the cluster the feature is off by default due to agentz installation requiring a restart, zen master will not auto install agentz on a broadcaster that already contains any inputs to avoid disturbing active streams actions the following actions are available for each individual broadcaster copy password copies the broadcaster's password to the clipboard mute disables notification for error/recovery events for the selected broadcaster set maintenance turns on maintenance mode which prevents new streams from being assigned to this broadcaster configuration (for manual) shows configuration info for connecting the broadcaster to zen master open – provides access to the zixi broadcaster ui (applicable to both cloud based zixi broadcasters and on premise zixi broadcasters) edit – opens the configuration window for the broadcaster enabling you to edit the details disable/enable (for manual) – changes the status to disabled , meaning that any active streams will be stopped without deleting the configuration of the zixi broadcaster note on rules redirection rules tab shows a list of existing redirection rules redirection rules specify specific routing rules for pull requests from clusters or cidr ip ranges to learn more about redirection rules, see creating a new redirection rule docid\ nqc0lm3ylaydgvzssjpjx description a description of the rule from the cluster from which the pull request was initiated to the type of redirection redirect to public ip pull requests that match this rule will be resolved by redirecting it through a public ip this is the default behavior redirect to private ip pull requests that match this rule will be resolved by redirecting it through a private ip redirect to nic pull requests that match this rule will be resolved by redirecting it to a specific nic block pull requests that match this rule will be blocked latency override the latency when the redirection rule applies latency is determined by the following order redirection rule latency > source autopull/pull target latency > default 1000ms order the order value for this rule rules are evaluated from lowest to highest order, the first rule that matches will be applied actions the following actions are displayed edit rule delete rule details tab api credentials the username and password for accessing the apis management type the management type manual, aws, azure or gcp deletion protection indicates whether the deletion protection is enabled or disabled the deletion protection prevents deleting the cluster to delete it, you will need to first disable the deletion protection enhanced monitoring an aws mechanism that enables "detailed monitoring", in which data is available in 1 minute periods, as opposed to the 5 minute period of the "basic monitoring" option the more frequent data is sent to cloudwatch customers this service incurs an extra charge directly by aws to allow this feature you must enable "detailed monitoring" in your aws account account name (for managed) the name of the cloud provider account under which the managed cluster is registered activation key the cluster’s activation key authorization mode the method used to verify authorization to access the broadcaster cluster possible values are zen, external server, global password, free for all and manual region the cloud service region key pair the key pair used to access the cluster vpc the identifier/name of the virtual private cloud subnet the identifier/name of the subnet in which the cluster resides security group the identifier/name of the security group to which the cluster pertains instance type the name of the instance type on which the cluster is running on broadcaster version the software version of the broadcaster events tab shows a list of the events that were generated in zen master in relations to the specific cluster and its broadcasters to learn about viewing event logs in zen master, see events docid\ bgowcwcc5rmvqdkmlbttq click quick report to generate a report of events related to this broadcaster cluster and download the xls file changes tab displays the history of changes that were made to the object configuration for more information, see change tracking docid\ hc kmarjxkviaz69v6ivv notes tab free form text with information relevant to this broadcaster cluster actions on broadcaster clusters docid\ hhnfwk0ir570i05rubqp viewing existing clusters docid\ gutcxxqu1v mbmsxtl7rd
