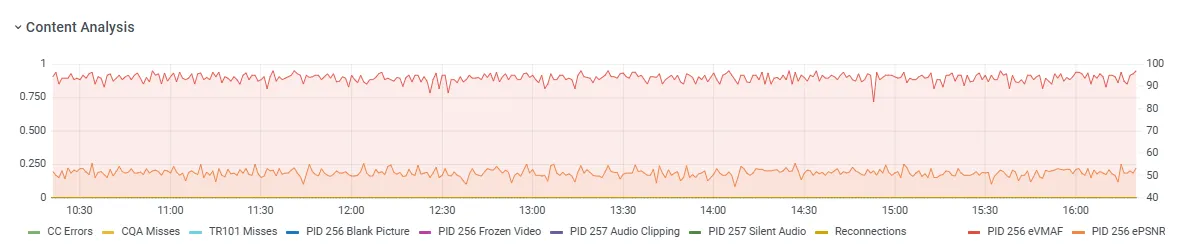

shows the number of Content Analysis errors of each type (e.g. CC Errors, Blank Picture etc.) that occurred over time

Errors are shown separately for each PID.

The graph also displays the following quality scores:

 - For Broadcaster (v13 and up) streams, the estimated Peak Signal-to-Noise Ratio (ePSNR) is shown for each relevant PID. The scale for the ePSNR is shown along the right side of the graph. ePSNR values can range from 11 to 60, with 60 representing the highest quality.

 - the estimated Video Multimethod Assessment Fusion is shown for each relevant PID. This quality score uses machine learning

to predict how humans perceive video quality. The score can range from 0 to 100 , where a higher score represents better quality.

In both the PSNR and VMAF cases, Zixi trained Machine Learning models to estimate the score without needing to do the full calculation because in both cases the original, uncompressed reference is needed for the full calculation.  The ML model is also computationally more efficient (less CPU) than the full calculations.

ZEN Master shows data for the following Content Analysis parameters:

Source History Content Analysis

Source History SCTE-35

Source History Network

Source History Network Bitrate

Source History Transcoding

Source History Elementary Stream Bitrates

Source History Failover

Source History Packet Timing

Source History Bonding (for Network Bonding Sources)

Source History Encoding Quality ePSNR

Source History Encoding Quality eVAMF
