Networks

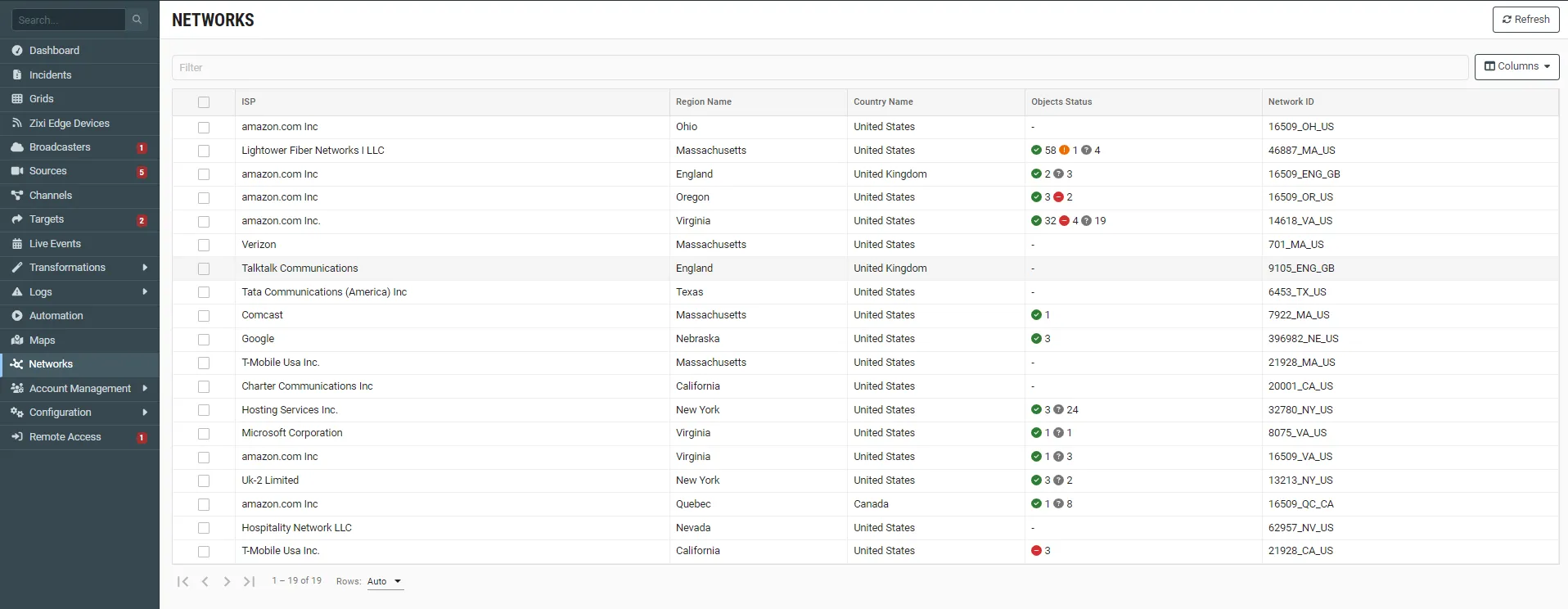

zen master follows the networks in which the various objects reside to understand if a common root cause of an issue is at the network level for example, if multiple sources originate from the same network and they are experiencing an issue, the root cause of this issue may be at the network level the networks are discovered automatically by zen master using ip to location method a network is defined as an asn from a specific country and region/state this screen requires admin access the networks screen provides details and object states about each network when a network is selected, the list pane is minimized and detailed info about the selected network is shown on the right side of the screen, showing the specific objects that are active on the network networks screen the main display includes the following data for each network parameter description isp the name of the internet service provider that hosts the network, as defined in the asn region name the region of the network, as defined in the asn country the country of the network, as defined in the asn objects status the number of objects in each status green – ok red – error orange – warning gray unknown network id the name of network, which comprises the asn id, followed by the region code and country code actions on networks docid 9pp yfopjobt0iqyyjurd network details docid\ s2hctyjryrb0i7z p1w network active objects docid\ potmxzzmysmg1pgmrsct1
