), a dialog will be displayed asking you to choose whether you want to

. In this section we will explain what is the meaning of each option is and what are its consequences for the next stages when you use them to extend a stage,

but the extension is longer than the next stage

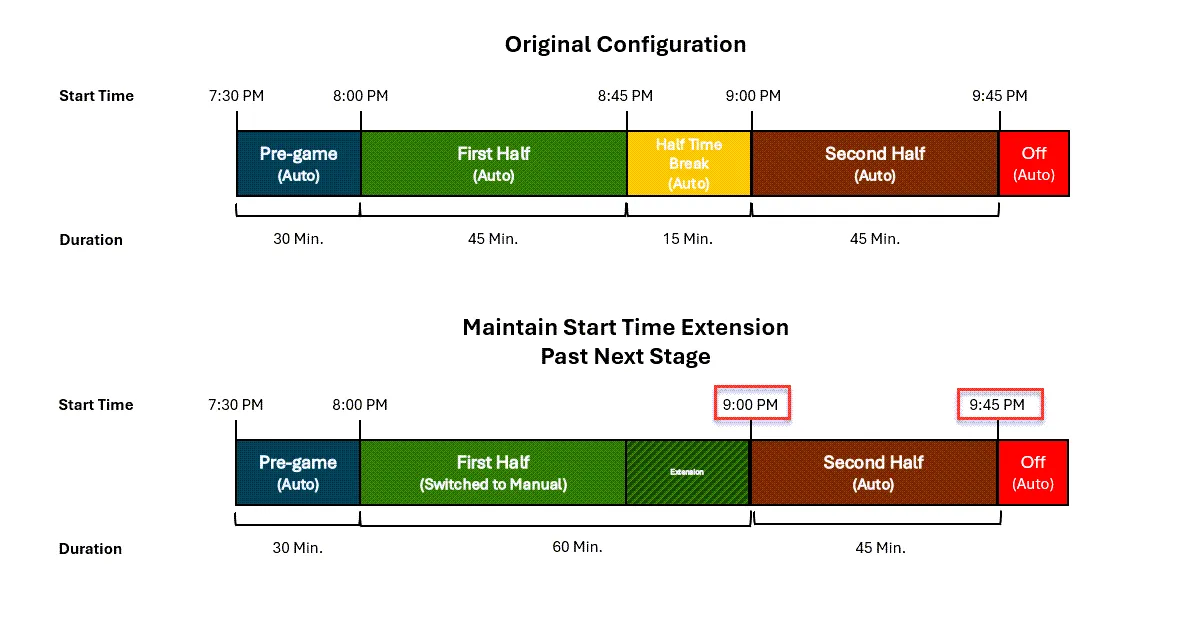

Maintain Start Time Extension Past the Next Stage

. Every stage after that which is also configured as Auto,

will be according to the originally configured Start Time

 First Half stage  is manually extended by 15 minutes

During the “First Half” stage the operator switched to manual and selected the

After 15 minutes into the first half extension the operator clicked

The start times of the following stages (marked by a red rectangle) will begin automatically according to the original configuration:

(the original configured start time for the Second Half stage).

 (the original configured start time for the Off stage).

Note that if the First Half extension were to go past 9:00 PM, for example 9:10 PM, the Second Half would begin at 9:10 PM and end at 9:45 PM.

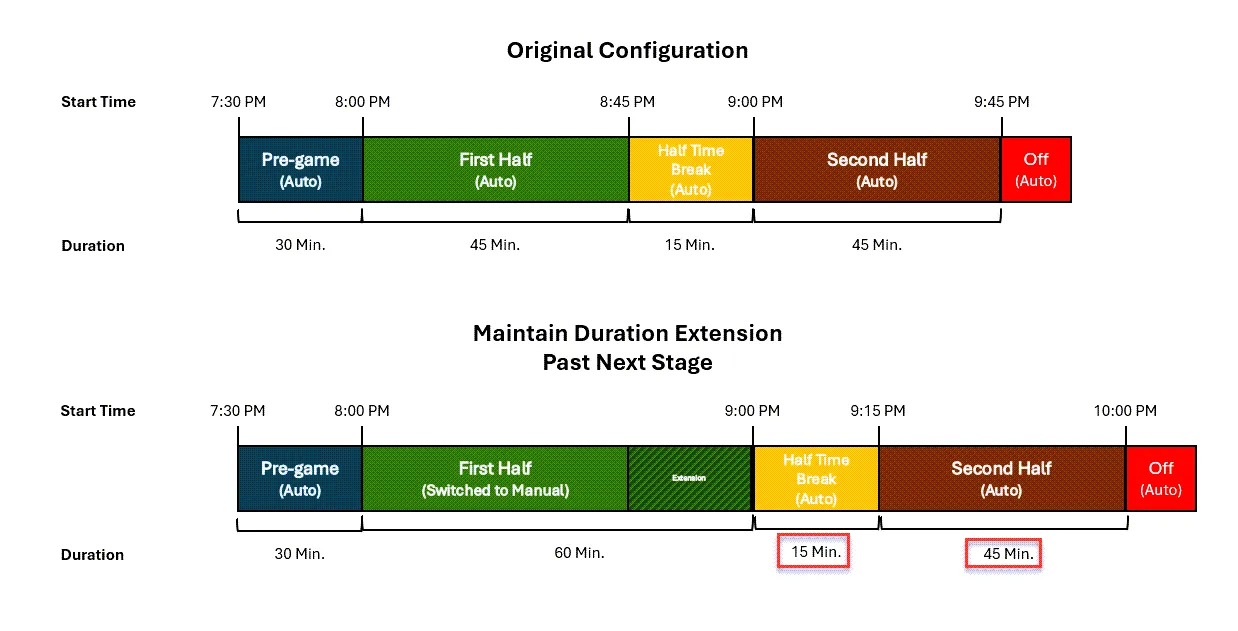

Maintain Duration Extension Past the Next Stage

In this option the next stage, following the manual transition, is skipped. Every stage after that, which is also configured as Auto, will be according to the originally configured

First Half stage is manually extended by 15 minutes

After 15 minutes into the first half extension the operator clicked Start Next Stage and moved to the Half Time Break stage.

s, as they will begin automatically according to the original duration configuration (marked by a red rectangle):

 (based on the original configured duration for the Half Time Break stage) and the Second Half will start automatically.

 (based on the original configured duration for the Second Half stage).

Manually Shortening a Stage

Manually Extending a Stage Past the Next Stage
