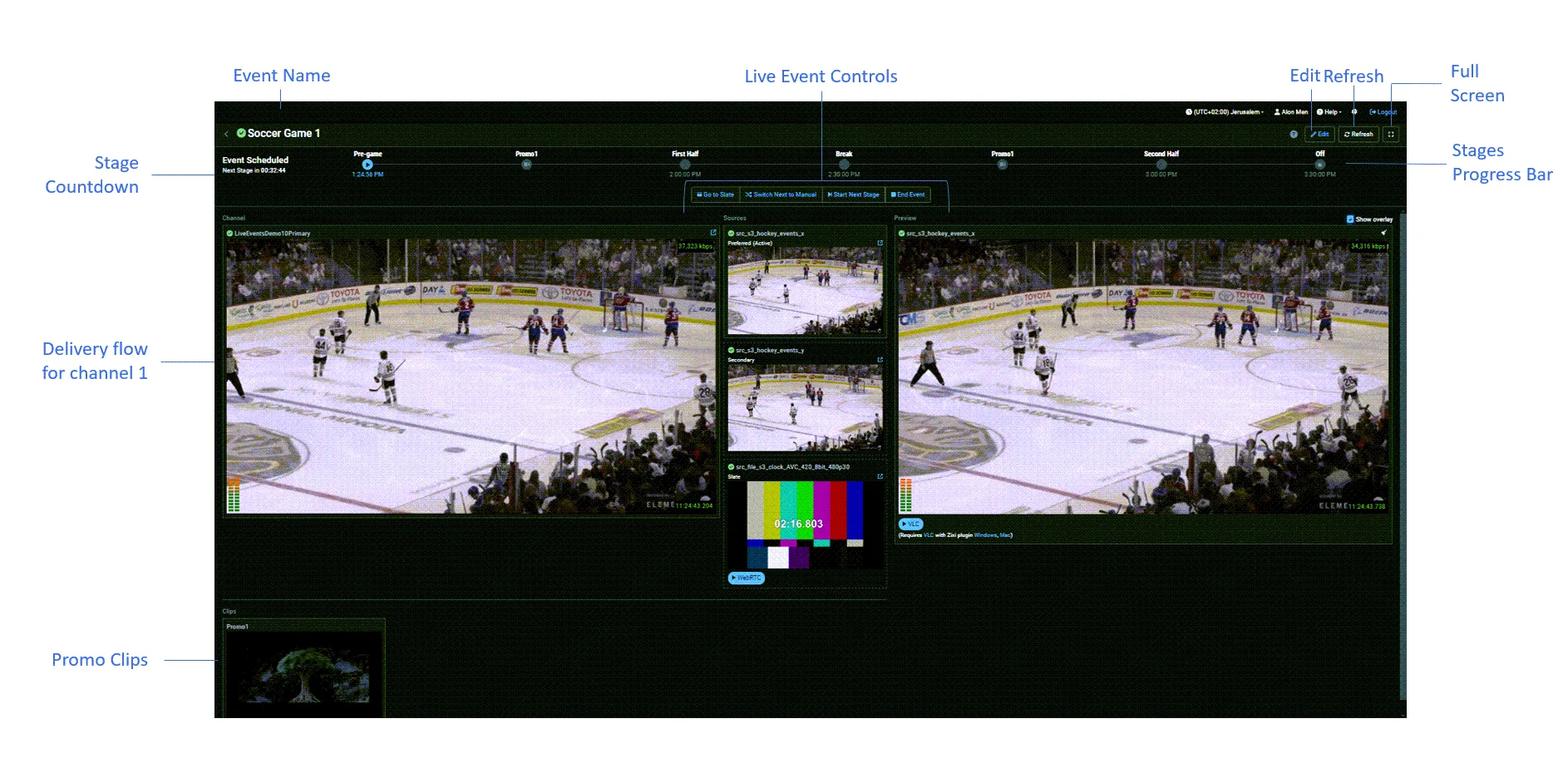

The Live Event Management screen is the "front-end" screen where a Live Event Operator can monitor the live event and control its broadcast, including manual override controls for full control over stage transitions. The screen includes the following main elements:

 – the progress bar displays the various stages of the live event and their scheduled times. The current stage and previous stages are marked in blue.

- displays a count-down to the next stage.

 – displays all the ZEN Master objects that are assigned to the delivery flow per channel. Each Failover Source/Channel creates a separate delivery flow. Multiple delivery flows are displayed on the screen. Each delivery flow includes the following elements (from left to right):

 – displays a preview of what is currently being delivered as the output of the channel. The header displays the channel status, name, and processing cluster. The status icon indicates the channel state and the name of the source that is currently streaming. Click the

– displays small previews of the sources in the Failover Source/Channel and their status. Click the Expand icon to view the Source details. The header of the source displays the source status, name, and processing cluster. In addition, it displays the

 - Preferred/Secondary/Slate, while indicating which of the sources is currently Active.
Hovering the mouse on top of the source displays the following buttons:

 - displays a preview of the source on the Preview column.

 - locks the Source so that it is the only Source that is going to be played in the Live Event, even if there is a failover event. Locked sources are indicated with a lock icon.

displays the Source feed of the Source on which the

 checkbox displays a timecode and audio levels overlay on the Preview video.

At the bottom of the screen the Clips section displays small previews of the promo clips that were created for this Live Event. Hovering the mouse on top of the clip displays the following buttons:

displays a preview of the clip on the Preview column.

forces the clip to play immediately in the Live Event.

 – click this button to refresh the entire screen.

- click this button to edit the event configuration.

 – offers a variety of buttons to manually control the event. For more information, see
