ZEN Master
...
Viewing Existing Incidents
Viewing the Incident Details
Incident Details Events View
1min

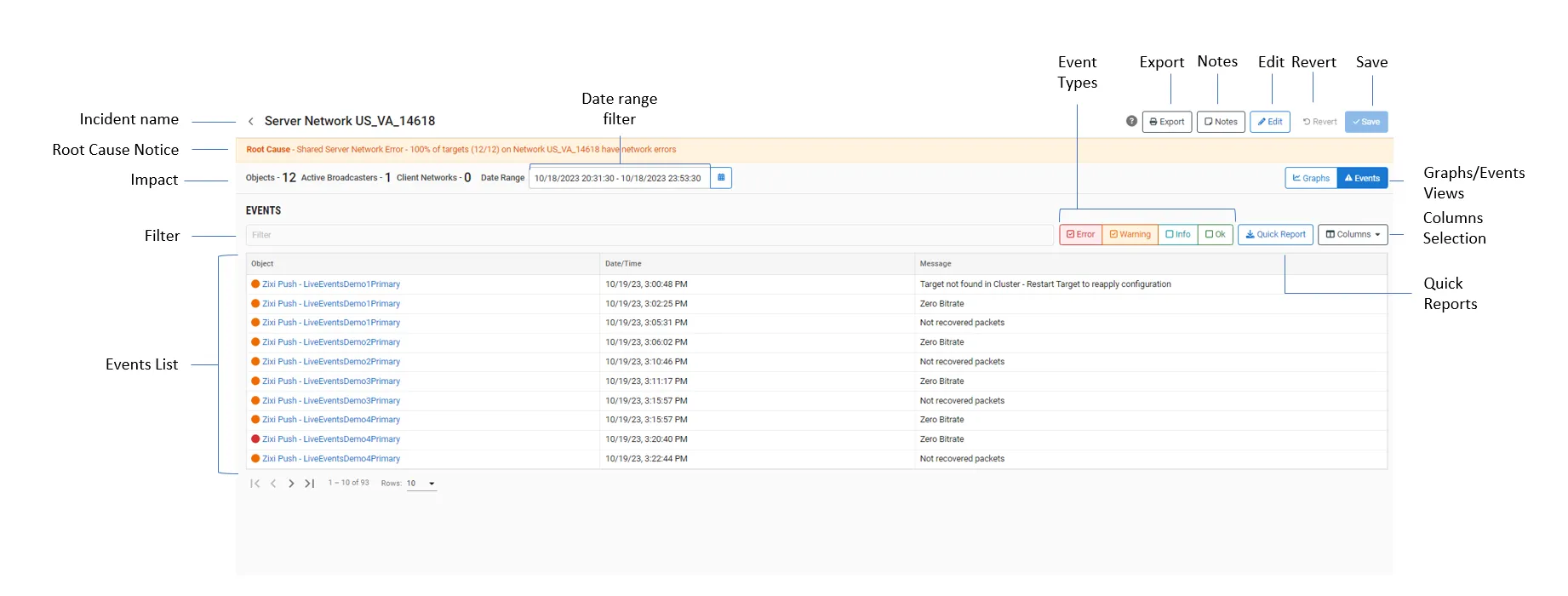

the incident details events view shows all events that occurred for the specified object during the incident time range this helps identify causal relationships between events for more information see events docid\ bgowcwcc5rmvqdkmlbttq clicking on an event displays the object’s details screen of the object that experienced the event the screen includes the following elements incident name the name of the incident the name can be edited by default, if the incident was automatically created, the name will include the following structure \<root cause category> \<identifier> root cause notice in case of an auto generated incident, this notice includes the reason for generating the event it includes the following structure the name of the root cause category an indication of the number of components in the network that have experienced error events/unrecovered packets events around the same time the name of the network these objects share impact the number of objects, active broadcasters and client networks involved in the incident date range the date range of the incident modifying the date range can be done by selecting one of the predefined time ranges or by selecting specific start and end dates filter – type a string to filter the list of events that match the string event types – select/deselect the checkbox to show/hide events of this type quick report – click to download the list of events in spreadsheet format columns controls the number of columns used to layout graphs on the page export – exports the incident page content to a pdf file notes – the notes pane allows you to view and add notes to the incident edit – opens a dialog where the name, state (open or closed) and root cause of the incident can be modified revert – resets incident graph selections and date range back to previously saved values save updates incident graph selections and date range
