Adding UDP/RTP Targets

2 min

The following procedure describes how to add a UDP/RTP Target in ZEN Master. In addition, an explanation of each of the configuration parameters is given in the table below.

To add a new UDP/RTP Target:

In the main navigation, click Targets.

Click + Add. The Create New Target window is displayed.

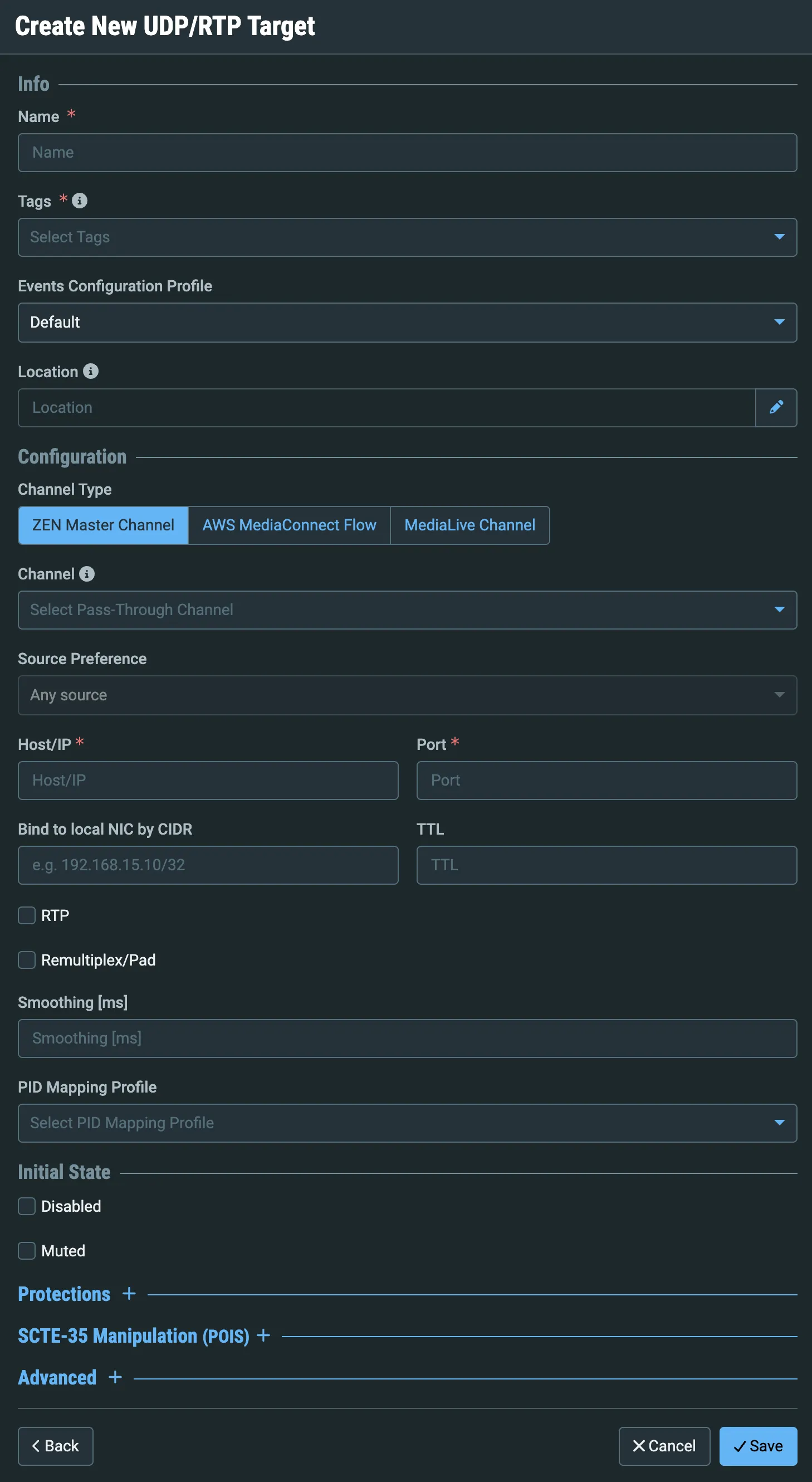

Click on UDP/RTP. The Create New UDP/RTP Target window is displayed.

In the Info section, in the Name field, enter a logical name for the UDP/RTP target.

In the Tags field, select one or more of the predefined Tags from the drop-down list. Tags are used for access control. By selecting a Tag you are relating this target to that Tag. Tags are associated with certain roles (through the Users & Roles screen), and roles, in turn, are associated with users and user groups. If you would like to create a new Tag, see Creating a Tag.

In the Events Configuration Profile field, select from the dropdown list the profile that you would like to apply to this Target. By default, the Default profile is applied.

Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.

The Target's location is used to represent it in the proper position in the Map display (see Maps). By default, the location is determined automatically based on the Target's IP. If you would like to manually set the location of the Target (Optional), use the following procedure:

Click on the Edit icon next to the Location field. A search box is shown below the Location field.

Enter identifying info for the location (e.g. street address, zip code, coordinates). Search results are displayed below the search box as you type.

Click on the desired location. The selected location populates the Location field.

In the Configuration section, under Channel Type, select the type of Channel that the Target will receive. Options are: ZEN Master Channel, AWS MediaConnect Flow, or MediaLive Channel.

In the Channel field, select from the drop-down list the channel that will be sent to the target. (Optional field)

The target will only become functional once a channel has been assigned to it. However, you can configure the target settings and then add a channel to the target after the initial configuration.

In the Source Preference field (ZEN Master Channel option), select one of the following options:

Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel.

Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel.

Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel.

Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel.

It is not possible to select "Prefer Primary Sources" or "Prefer Backup Sources". This means you cannot have a Target failover from a Primary to a Backup source in the Channel unless "Any Source" is selected.

In the Host/IP field, enter the hostname or IP address of the Broadcaster or MediaConenct Flow.

In the Port field, enter the Target port on the receiving device.

In the Bind to local NIC by CIDR field, enter the CIDR that represents the IP range where the desired NIC is accessed.

In the TTL field, specify the desired TTL value.

If your receiving device is configured for RTP, then select the RTP checkbox.

If you selected RTP, then in the SMPTE 2022 FEC section, select the desired error correction method. Options are: Disabled (default), 1D or 2D.

If you selected 1D or 2D for the FEC, then fill in the desired number of rows and columns. Default values: 10x10.

In the Smoothing [ms] field, specify the size of the buffer in Milliseconds. A larger buffer enables smoother entry, however, it may influence the latency rate. The Smoothing feature uses a buffer to time packets according to the stream's clock, by creating a queue in the buffer, allowing smoother entry into the Broadcaster. This is useful when there are bursts in the rate in which the stream arrives.

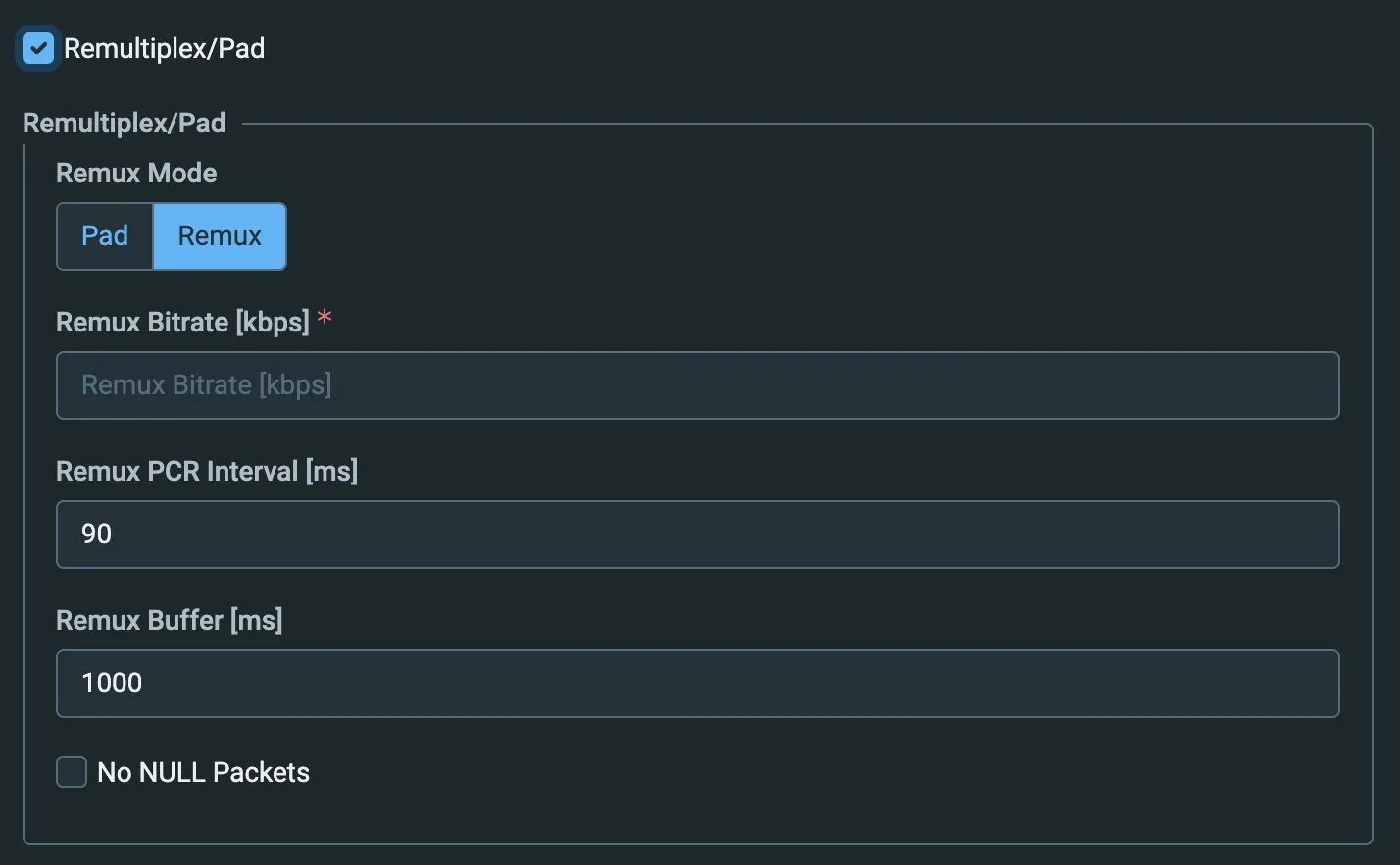

If you want to Remultiplex or Pad the stream, check the box to reveal additional options:

Under Remux mode, select one of the following:

Pad - in the Padding mode a VBR stream is turned into a CBR stream in a non-transformational way, by adding null packets and adding some minor PCR corrections. This mode is used when the stream is compliant with broadcast quality but needs minor PCR correction and padding to make it CBR.

Remux - Remux mode is transformational and is used to try to fix streams that are typically non-compliant with broadcast quality IRD’s, often originating at consumer-level software encoders or other misconfigured/non-compliant encoding sources. The system unpacks the original TS, separates the audio and video, assembles the frames and then re-packages them. As part of this process the PIDs may be changed and a new PCR clock may be created. This mode assumes that the stream includes a single audio and video source.

If you selected Pad for the Remux mode, In the Remux Bitrate field, enter the desired bitrate (in kbps) for the remuxed stream.

If you selected Remux for the Remux mode, edit the following fields as needed:

In the Remux Bitrate field, enter the desired bitrate (in kbps) for the remuxed stream (required).

In the Remux PCR Interval field, specify the frequency at which the Program Clock Reference is inserted into the output Transport stream. Default - 90 ms.

In the Remux Buffer field, specify the time allowed for remuxing. Default - 1000 ms.

Check No NULL Packets to discard NULL packets during remuxing.

If you would like to apply a PID Mapping profile to this Target, then in the PID Mapping Profile field, select the desired profile from the dropdown list. For more information, see PID Mapping Profiles.

In the Transcoding Profile field (MediaLive Channel option), select a transcoding profile from the drop-down menu.

In the Initial State section, select the Disabled checkbox if you would like to disable this Target upon initial configuration.

Select the Muted checkbox if you would like to disable error/recovery notifications for this Target upon initial configuration.

You can Enable/Unmute the Target at any time.

Under Protections, select the Channel reassignment protection chekbox if you want to prevent the reasssignment of this Target to another Channel. This is helpful in cases where you are switching the channel on multiple targets at once and can accidetaly select a Target that should not have been switched to the new Channel.

If you use POIS, expand the SCTE-35 Manipulation (POIS) section to see additional options.

Select Enable SCTE-35 Manipulation to enable insertion and management of SCTE-35 messages (used typically to create ad breaks).

Select Enable SCTE-35 Manipulation to enable insertion and other management of SCTE-35 messages (used typically to create ad breaks).

If you have created SCTE-35 Modification Profiles and want to apply it to this target, select it from the dropdown list. Note that if you select a profile, the Remove Existing SCTE-35 option will automatically be checked and non-editable - the way the modification works is that the Broadcaster will remove all SCTE-35 messages, and then re-insert them in original or modified form acccording to the rules defined in the profile.

In the NULL Packet Search Window field, specify the time window in milliseconds of NULL packets to search for in order to insert SCTE-35 messages into the stream:

If the stream is VBR, set the value to 0 - SCTE-35 messages can be inserted anywhere, and do not need a NULL packet

If the stream is CBR, the downstream receiver may need a CBR stream. Inserting the SCTE-35 message into a NULL packet ensures the stream will remain CBR; however, it may delay the insertion of the message up to the length of the search window

If you are using an external POIS or ESNI system, enter the External ID that you use to reference the ZEN Master object in the other system. See the Parameters table below for more information.

In the POIS Latency Offset field, if you would like to offset the POIS modification path to allow for API latency, enter a value in miliseconds. This value can be zero, but it establishes that this output should receive POIS SCTE conditioning.

If you want the timeline adjusted (normalized) to account for insertion and/or removal of SCTE-35 messages, select Make Timeline Continuous (note that the processing will add approximately 100ms to latency).

If you would like to configure advanced settings, click on Advanced and enter values for the desired fields - see the Paramaters Table below for explanations of the fields.

Click Save.

UDP/RTP Target Configuration Parameters Table

Parameter	Description
Info
Name	Specify a name for the Zixi Pull Target in ZEN Master.
Tags	Select one or more of the predefined Tags from the drop-down list. Tags are used for access control. By selecting a Tag, you are relating this Target to that Tag. Tags are associated with certain roles (through the Users & Roles screen), and roles, in turn, are associated with users and user groups. If you would like to create a new Tag, see Creating a Tag .
Events Configuration Profile	Select from the dropdown list the profile that you would like to apply to this Target. By default, the Default profile is applied. Note: Events Profiles consist of a series of rules that determine precisely how various types of Events are logged and what results they trigger.
Location (Optional)	The Target's location is used to represent it in the proper position in the Map display (see Maps). By default, the location is determined automatically based on the Target's IP. Enter identifying info for the location (e.g. street address, zip code, coordinates) and select the desired location from the suggestions that are shown.
Configuration
Channel Type	Verify that ZEN Master Channel is selected (default).
Channel (Optional)	Select from the drop-down list the Channel that will be sent to the Target. Note: The Target will only become functional once a Channel has been assigned to it. However, you can configure the Target settings and then add a Channel to the target after the initial configuration.
Source Preference	Select from the drop-down list one of the following: Any Source – the Target will establish a connection to any available source in the Channel. Upon any disconnects with the current source, the Target will reconnect to another available source in the Channel. Primary Sources Only – the Target will establish and maintain connection to a source designated as Primary in the Channel. Upon loss of connection to that source, the Target will establish a connection to another available Primary source in the Channel. Backup Sources Only – the Target will establish and maintain connection to a source designated as Backup in the Channel. Upon loss of connection to that source, the Target will establish connection to another available Backup source in the Channel. Specific Source – select one of the specific sources listed. The Target will only establish a connection to the selected source and will not try to connect to any other source in the Channel. Note: It is not possible to select "Prefer Primary Sources" or "Prefer Backup Sources". This means you cannot have a Target failover from a Primary to a Backup source in the Channel unless "Any Source" is selected.
Profile	Select the RIST profile to be used. Options are Simple or Main.
Host/IP	Enter the hostname or IP address of the Broadcaster or MediaConenct Flow.
Port	Enter the Target port on the receiving device.
Bind to local NIC by CIDR	Enter the CIDR that represents the IP range where the desired NIC is accessed.
TTL	Specify the desired TTL value.
RTP	If your receiving device is configured for RTP, select this checkbox.
SMPTE 2022 CEF	Select the desired error correction method. Options are: Disabled (default), 1D or 2D. If you selected 1D or 2D for the FEC, then fill in the desired number of rows and columns. Default values: 10x10.
Smoothing [ms]	The Smoothing feature uses a buffer to time packets according to the stream's clock, by creating a queue in the buffer, allowing smoother entry into the Broadcaster. This is useful when there are bursts in the rate in which the stream arrives. Specify the size of the buffer in Milliseconds. A larger buffer enables smoother entry, however, it may influence the latency rate.
Transcoding Profile (MediaLive Channel option)	Select the desired transcoding profile from the drop-down menu.
Remux Bitrate [kbps]	Specify the desired bitrate (in kbps) for the remuxed stream.
Remux mode	Select one of the following: Pad - in the Padding mode a VBR stream is turned into a CBR stream in a non-transformational way, by adding null packets and adding some minor PCR corrections. This mode is used when the stream is compliant with broadcast quality but needs minor PCR correction and padding to make it CBR. Remux - Remux mode is transformational and is used to try to fix streams that are typically non-compliant with broadcast quality IRD’s, often originating at consumer-level software encoders or other misconfigured/non-compliant encoding sources. The system unpacks the original TS, separates the audio and video, assembles the frames and then re-packages them. As part of this process the PIDs may be changed and a new PCR clock may be created. This mode assumes that the stream includes a single audio and video source.
PID Mapping Profile (optional)	If you would like to apply a PID Mapping profile to this Target, then select the desired profile from the dropdown list. To create a new PID Mapping Profile, see Adding PID Mapping Profiles .
Initial State
Disabled	Select this checkbox if you would like to disable this Target upon initial configuration.
Muted	Select this checkbox if you would like to disable error/recovery notifications for this Target upon initial configuration.
Protections
Channel reassignment protection	Select this option if you want to prevent the reasssignment of this Target to another Channel. This is helpful in cases where you are switching the channel on multiple targets at once and can accidetaly select a Target that should not have been switched to the new Channel.
SCTE-35 Manipulation (POIS)
Enable SCTE-35 Manipulation	Select to enable insertion and management of SCTE-35 messages (used typically to create ad breaks).
NULL Packet Search Window (ms)	Specify the time window in milliseconds of NULL packets to search for in order to insert SCTE-35 messages into the stream: If the stream is VBR, set the value to 0 - SCTE-35 messages can be inserted anywhere, and do not need a NULL packet If the stream is CBR, the downstream receiver may need a CBR stream. Inserting the SCTE-35 message into a NULL packet ensures the stream will remain CBR; however, it may delay the insertion of the message up to the length of the search window. Note: in Broadcasters prior to v19, if the value is set to anything other than 0, the search window will be 2 seconds.
SCTE-35 PID	Specify a specific PID number for SCTE-35 insertion.
Remove Existing SCTE-35	If you wish to override any existing SCTE-35 messages with your own, you can elect to have existing ones removed.
External ID	The ID that is used when integrating ZEN Master with an external ESNI/ESAM server. The ID is whatever you use in the external system to reference the ZEN Master object, though depending on what you are doing, it might serve different purposes: used by POIS to identify the source of SCTE-35 messages used by ESNI to identify the audience that is receiving the content Regardless, the External ID is the same whether entered in the SCTE-35 Manipulation settings or the Advanced settings, and you cannot enter different values in the two fields.
POIS Latency Offset [ms]	If you would like to offset the POIS modification path to allow for api latency, enter a value in miliseconds. This value can be zero, but it establishes that this output should receive POIS SCTE conditioning.
Make Timeline Continuous	Select this option to normalize the timeline, making it continuous. Note that it will add 100ms latency and it creates a variant of the input, which means that it doubles your input.

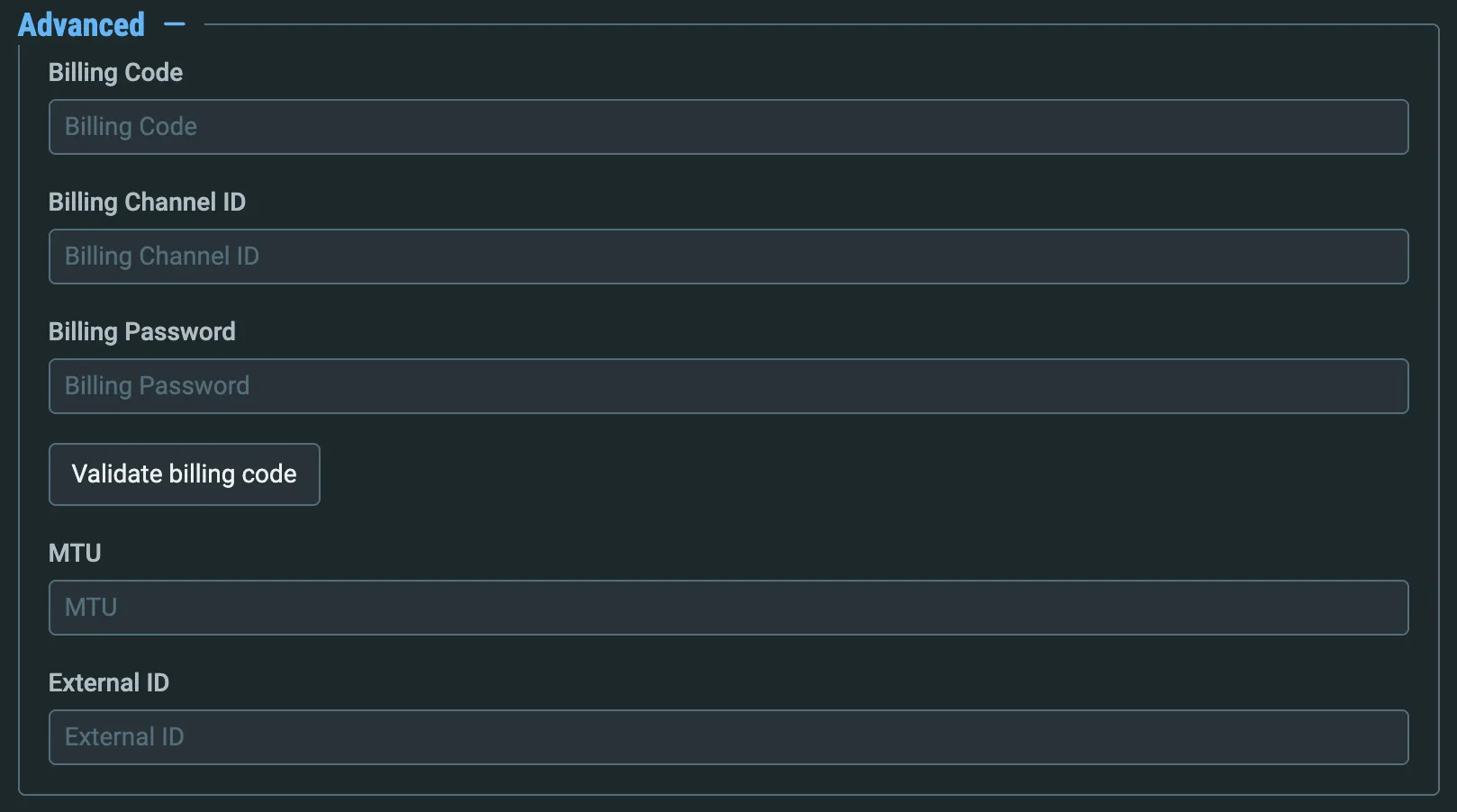

Advanced
Billing Code	If you would like to track usage for this Target, enter your Billing Code details, see Billing Codes . (Supported for Broadcasters v14.8+)
Billing Password	Enter the password that corresponds to this billing code.
Billing Channel ID	An optional arbitrary string - you can enter anything you want to for your record-keeping. This is not related to ZEN Master Channels.
MTU	If you would like to configure the Maximum Transmission Unit (largest data packet that a network-connected device will accept) for the pulling of the stream, enter the MTU in bytes in the MTU field.
External ID	In the External ID field, enter the ID that is used when integrating ZEN Master with an external ESNI/ESAM server. For more detail, contact your Zixi representative. For more detail, contact your Zixi representative.
