Adding an Assign Targets to Channel Task

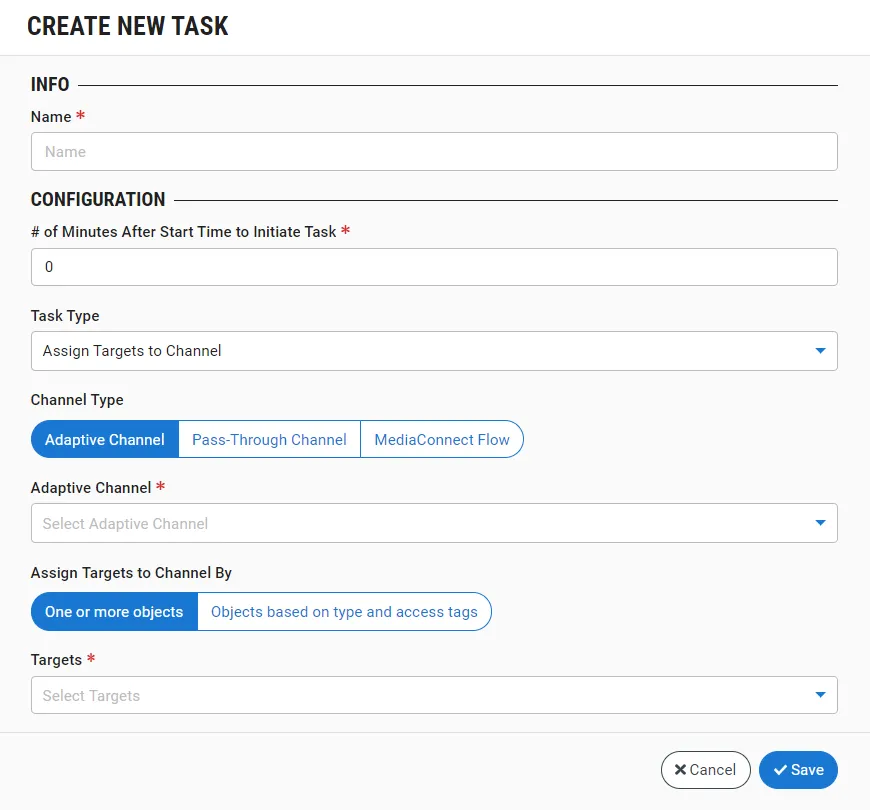

you can add a task to assign one or more targets to a channel you can select one or more specific targets or all targets of a particular type that are associated with the specified tags to create an assign targets to channel task in the main navigation, click automation the automation screen opens select the task set for which you would like to add a task details of the selected task set are shown at the right side of the screen click on the tasks tab click + add task the create new task window is displayed in the info section, in the name field, enter a name for this task in the configuration section, in the # of minutes… field, specify the number of minutes to delay starting this task from the beginning of the execution of the task set the default value is "0" meaning that the task begins immediately when the task set is run in the task type field, select from the dropdown list assign targets to channel under channel type , select the type of channel to which you would like to add targets options are adaptive channel , pass through channel or mediaconnect flow click on the channel selection field and select the desired channel from the dropdown list under assign targets to channel by , select the way that you would like to define what objects the task applies to one or more objects enables you to specify the particular object instances to include in the task objects based on type and tags enables you to specify the type of objects and associated tags to include in the task specify the objects as follows if you selected one or more objects – click on the select targets field a dropdown list of targets is displayed click on the desired target if you would like to add additional targets, click on the targets field again and select additional targets if you selected objects based on type and tags – select the checkbox next to the desired type of targets for a mediaconnect flow options are udp/rtp , pull targets, push targets or rist for a pass through channel options are rtmp targets , udp/rtp targets , srt, pull targets or push targets for an adaptive channel, http targets is the only possible selection in the tags field, select from the dropdown list one or more tags when objects based on type and tags is selected, only objects instances which are of the specified type and are associated with the specified tag are included in the task therefore, at least one object type and one tag must be selected when objects based on type and tags is selected, the determination of which object instances are included in the task is made at the time of each execution of the task so, for example, if the specified tag was assigned to 5 sources at the time of the initial run and was then assigned to two additional sources prior to the second run, then the second run of the task will apply to all 7 sources click save the task is added to the specified task set
