Adding a Zixi-ZEC MediaConnect Source

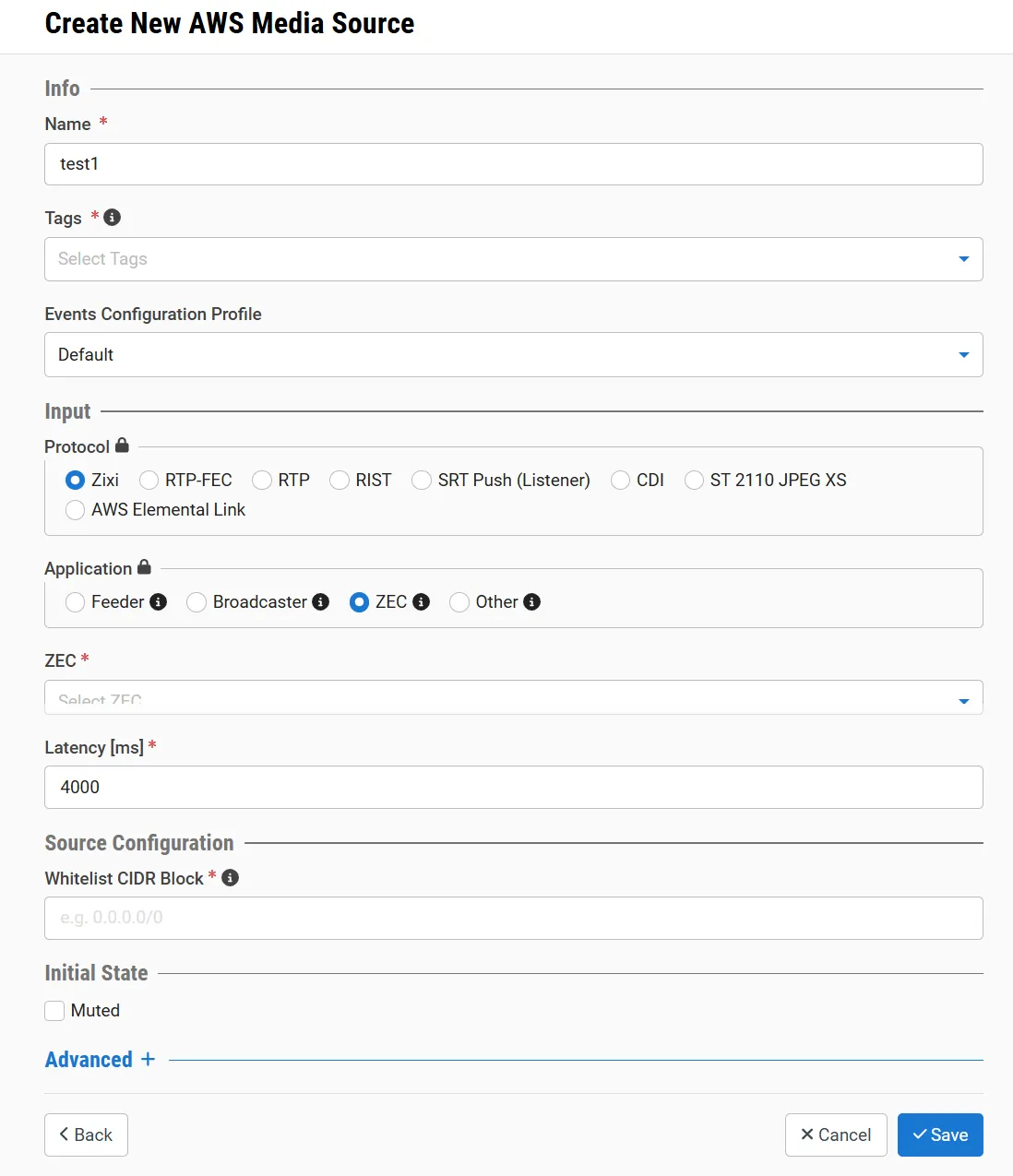

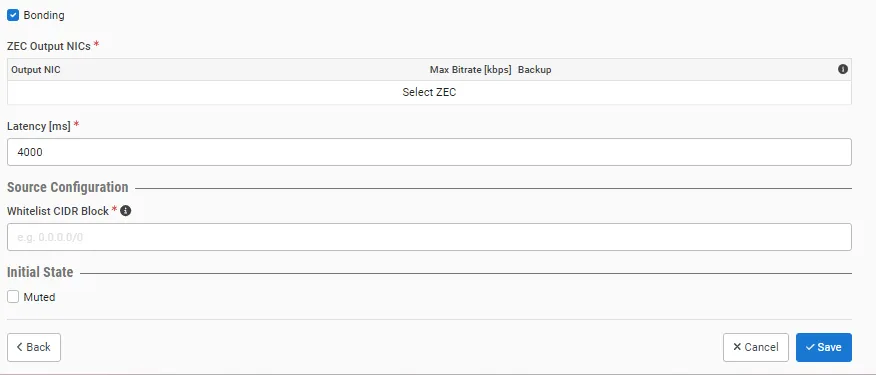

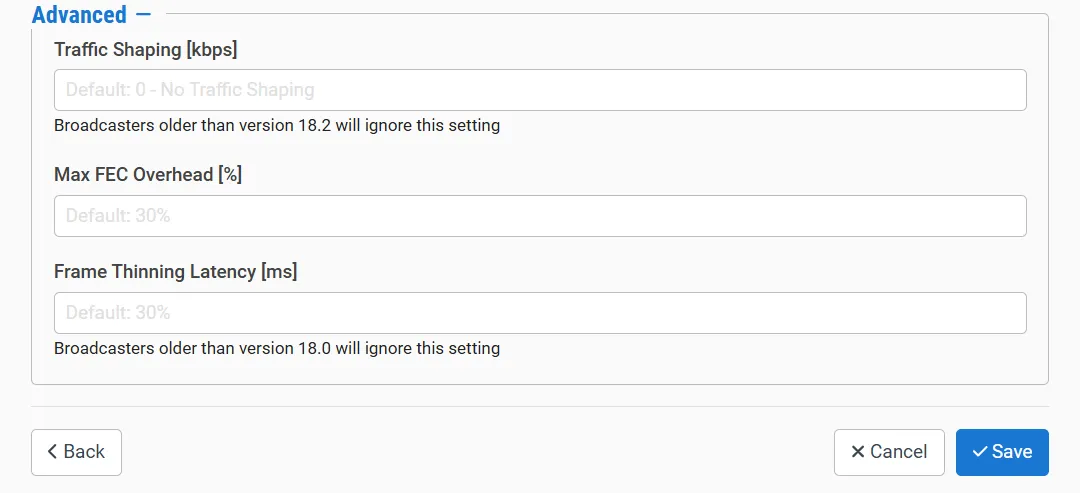

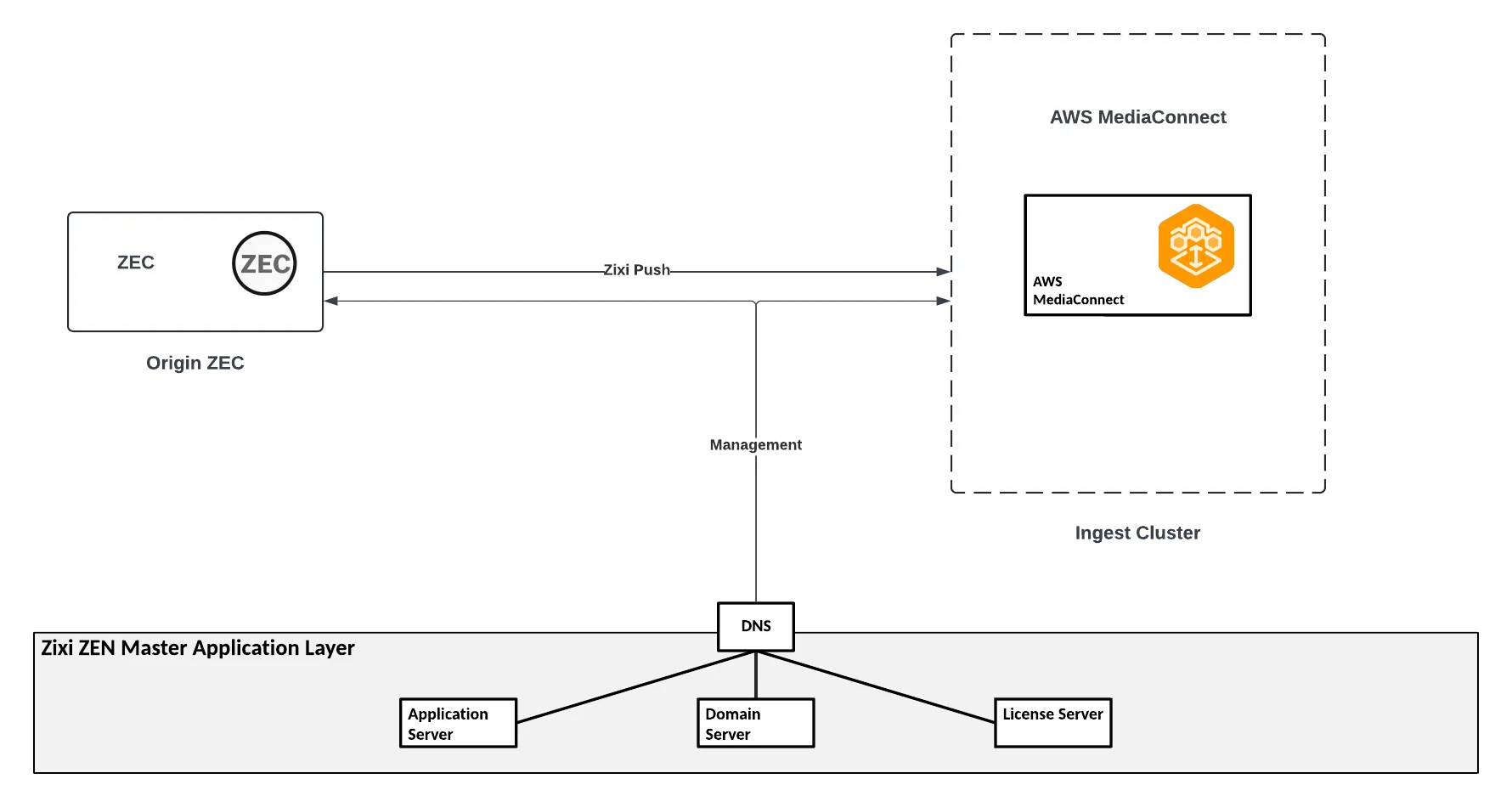

you can add an input from a zec to an aws mediaconnect ingest cluster to be managed as a source in zen in this case, the zec is referred to as the origin broadcaster which streams to the ingest cluster the streaming uses the zixi protocol once the aws mediaconnect flow channel is configured, zen master will automatically configure the component to push the stream to the relevant mediaconnect flow zixi zec mediaconnect diagram when configuring a source using a push stream from a zec you can apply network bonding to the stream this divides the stream into several network channels using multiple nics and subsequently reunites them at the ingest cluster when using network bonding, you need to specify which nics will be used for this source the following procedure describes how to add a zec mediaconnect source in addition, an explanation of each of the configuration parameters is given in the table below to create a zixi zec mediaconnect source in the main navigation, click sources click + add the create new source window is displayed create new source window under aws media , click on aws mediaconnect the create new aws media source window opens in the info section, in the name field, type a logical name for the source in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger in the input section, under protocol , select the zixi radio button in the application section, select zec in the zec field, select from the drop down list one of the available zecs in the zec input field, select the desired input from the drop down list of zec inputs on the selected broadcaster if you would like to use bonding section, do the following select the bonding checkbox select two or more nics by clicking the + button for each of the desired nics selecting nics for bonding selected nics are shown above the filter box (you can remove an nic by clicking the button for that nic) if you want to use this nic only when there isn’t sufficient bandwidth available on the other nics, then select the backup checkbox if the backup checkbox is not selected then this nic is used in parallel with the other selected nics in the latency \[ms] field, select the latency time for the stream (default 4000) you are required by mediaconnect to enter a valid whitelist cidr block the whitelist cidr block is a range of ip addresses that should be allowed to contribute content to your source these ip addresses must be in the form of a classless inter domain routing block for example, 10 0 0 0/16 through source needs to be in the range covered by this cidr block any ip address with this range is allowed to send content to this flow in the initial state section, select the muted checkbox if you would like to disable error/recovery notifications for this source upon initial configuration you can unmute the source at any time if you would like to adjust the advanced settings, click advanced the advanced settings fields are displayed click save parameter table parameter description info name specify a name for the aws media source in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting an tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input protocol to create a zixi input aws media source, verify that zixi is selected (default) application select zec zec select from the drop down list the desired zec zec input select from the drop down list one of the inputs that are available on the selected zec bonding select the checkbox if you would like to use bonding broadcaster output nics if you selected the bonding checkbox , then click the button for each of the nics that you would like to use selected nics are shown above the filter box (you can remove a nic by clicking the button for that nic) for each selected nic, you can adjust the following parameters in the max bitrate field, enter the maximum bitrate to be used on this nic if you want to use this nic only when there isn’t sufficient bandwidth available on the other nics, then select the backup checkbox if the backup checkbox is not selected then this nic is used in parallel with the other selected nics latency \[ms] specify the latency time for the stream (default 4000) source configuration whitelist cidr block specify the cidr for the range of ips that you would like to allow to contribute content to this source you are required by mediaconnect to enter a valid whitelist cidr block initial state muted select this checkbox if you would like to disable error/recovery notifications for this source upon initial configuration advanced traffic shaping \[kbps] specify the traffic shaping setting to limit the momentary bitrate spikes this mechanism adjusts the packet rates to control data flow in order to prevent network congestion it delays or queues less critical packets to prioritize important traffic specify the birtate limit in kbps that will serve as the threshold bitrate afterwhich it will apply the traffic shapping mechanism max fec overhead \[%] specify the percentage of the source bitrate that will be allocated to forward error correction by default, zixi's dynamic fec adjusts based on network conditions however by specifying this setting you can cap the fec allocation in specific scenarios frame thinning latency \[ms] the frame thinning feature removes frames from the stream to get to a lower bitrate if the stream is traversing a crowded network instead of using transcoding to lower the bitrate to allow the analysis and selection of the frames, zec needs a buffer this setting specifies the buffer size (latency) that is allowed in milliseconds in order to remove these frames the higher the value, the more accurate results that the frame thinning feature will reproduce a reasonable value is 1 seconds
