Videon’s devices are managed via the Videon LiveEdge Cloud portal. The Videon remote access profile allows you to connect ZEN Master to the Videon cloud and choose a specific available edge device for each Remote Access entry. Then, you can use the configuration settings shown in ZEN Master to connect the device to ZEN Master using the device's UI. See the section,

Adding a Zixi Remote Access Profile

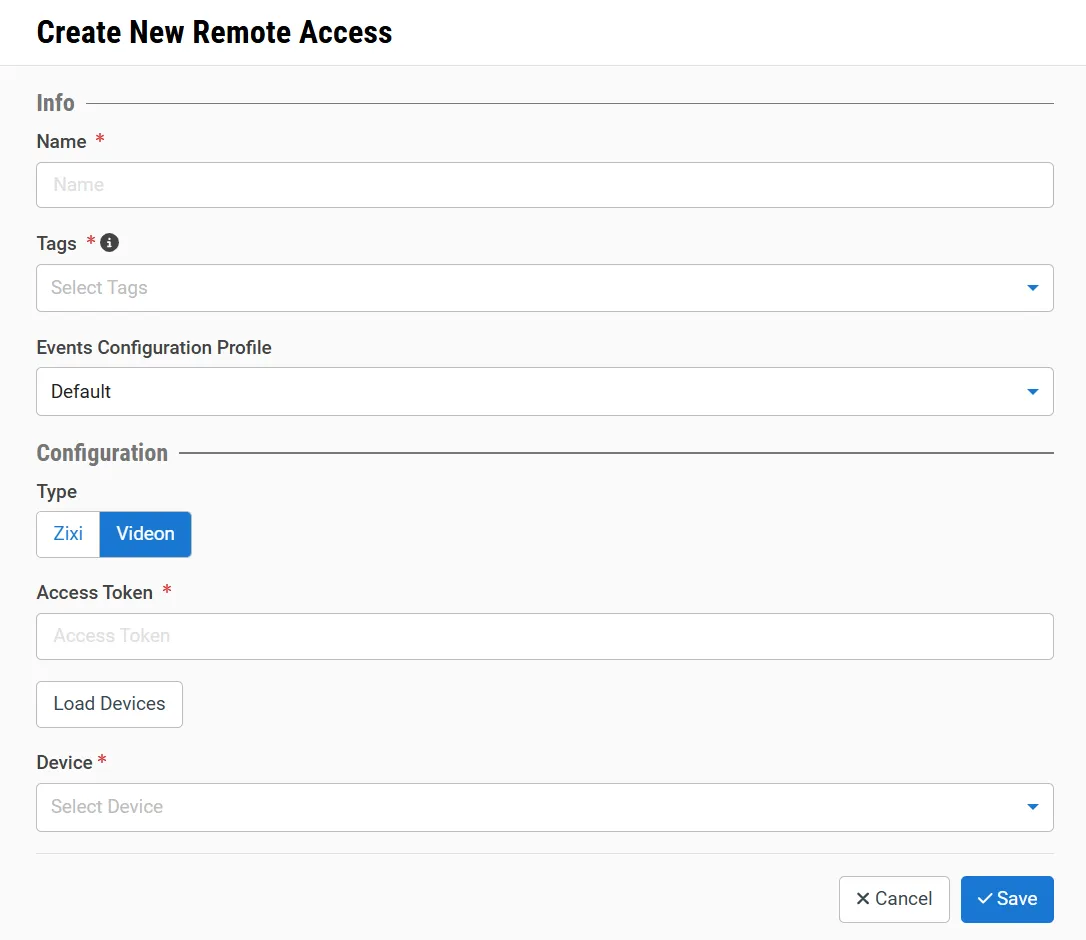

Adding a Videon Remote Access Profile
